Instrument Panel Lower Trim (G2100770): Removal

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.
Refer to: SPECIFICATIONS .
CAUTION: Take extra care not to damage the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

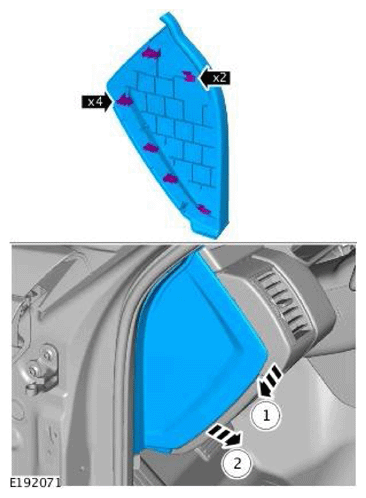

Remove the instrument panel outer trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the floor console lower cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the two bolts.
NOTE: An audible click is heard when the clips are fully latched.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the center console vertical finisher.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

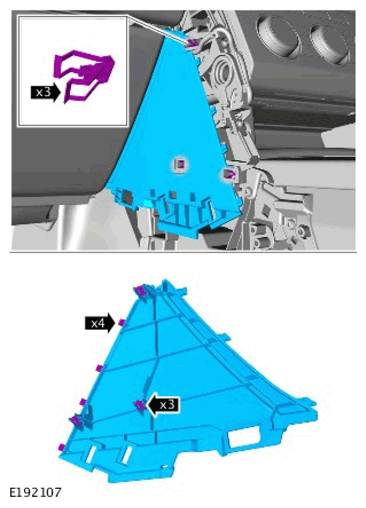

Remove the lower side trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.

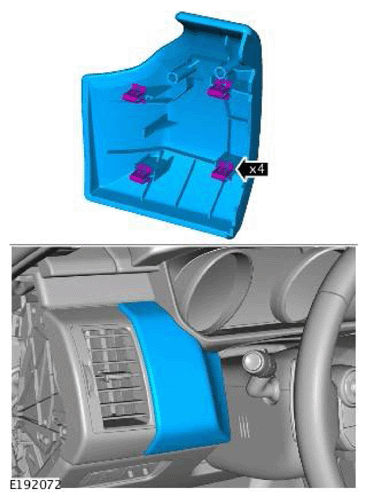

- Remove the instrument panel inner trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

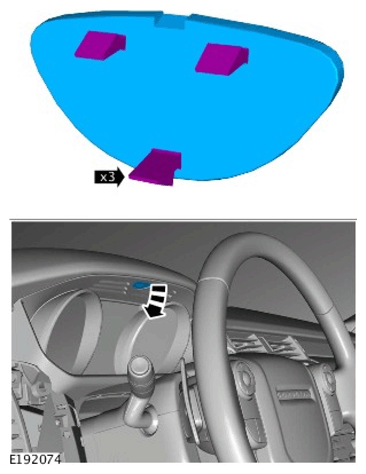

Remove the instrument cluster upper cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

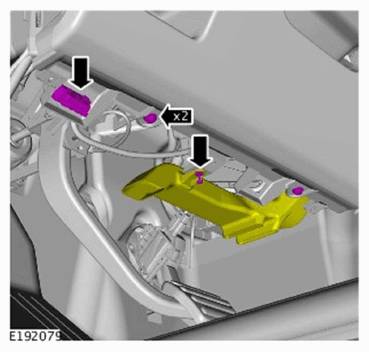

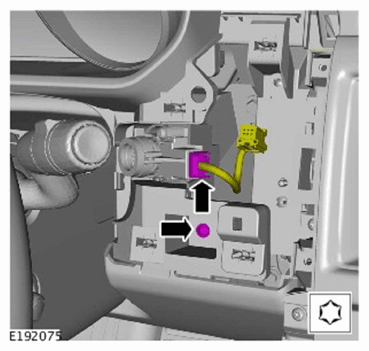

Remove the screw and disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

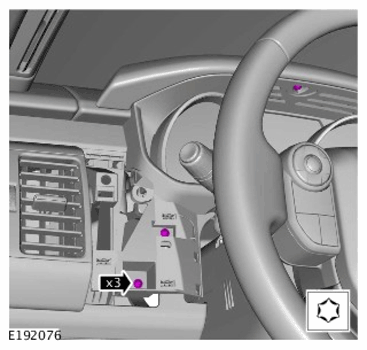

Remove the screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

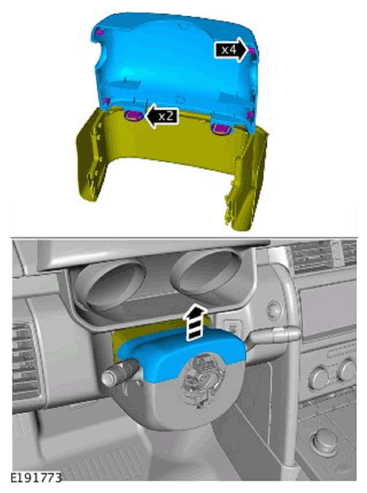

Remove the upper cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

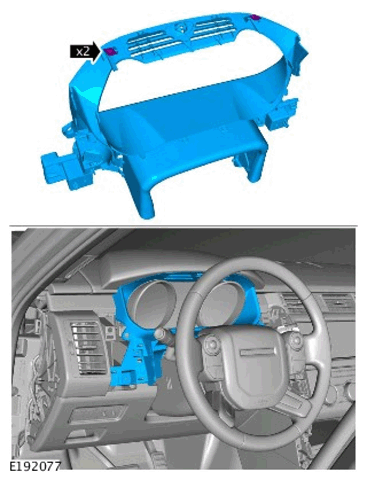

Remove the instrument cluster trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

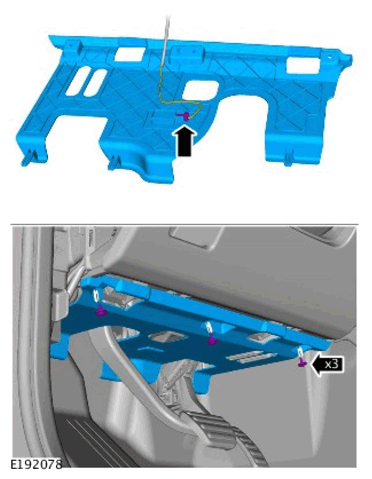

Remove the driver's side footwell trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

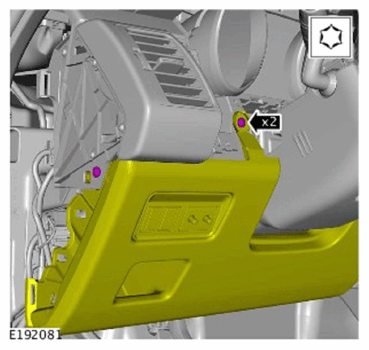

Remove the two lower bolts from the instrument panel lower section.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

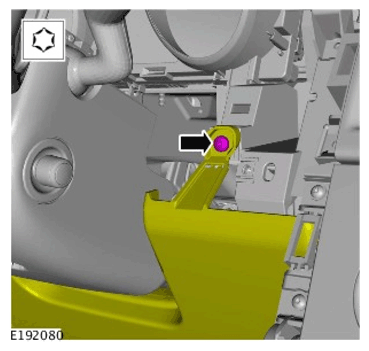

Remove the screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

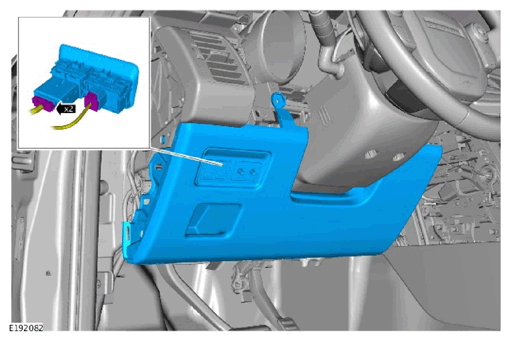

- Disconnect the electrical connectors.
- Remove the instrument panel lower trim.
