In-Vehicle Crossbeam (G1980157): Removal

NOTE:

Removal steps in this procedure may contain installation details.
Some components shown removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

Make sure the air bag supplemental restraint system (SRS) is safe.
Refer to: STANDARD WORKSHOP PRACTICES .
Remove the heater unit.
Refer to: HEATER CORE AND EVAPORATOR HOUSING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

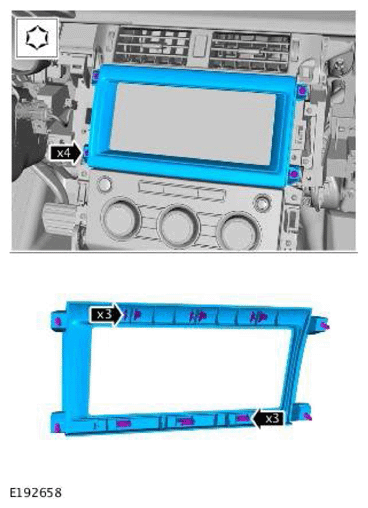

- Remove the touch screen trim cover.
  Torque : 5 Nm
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the integrated control panel switch assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Remove the integrated control panel.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the trim panel finisher.
  Torque : 5 Nm
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

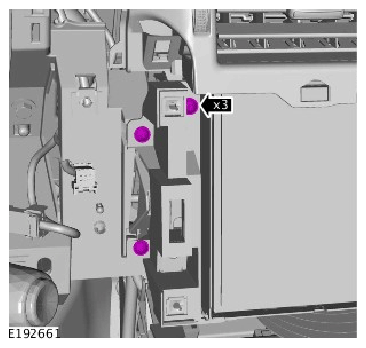

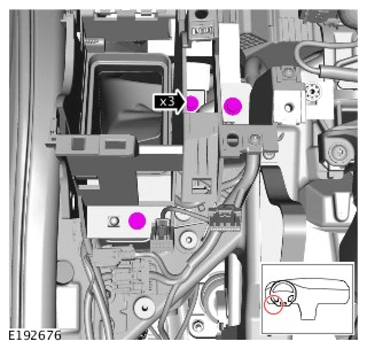

- Remove the three retaining screws.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.

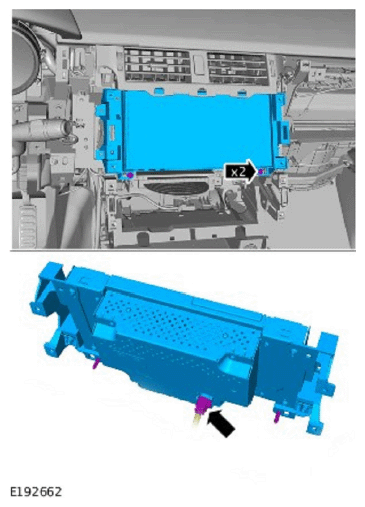

- Remove the touch screen.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

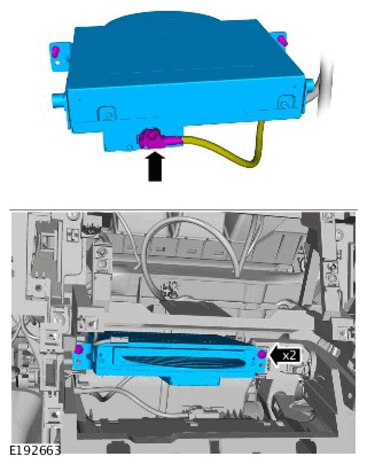

- Remove the DVD player.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

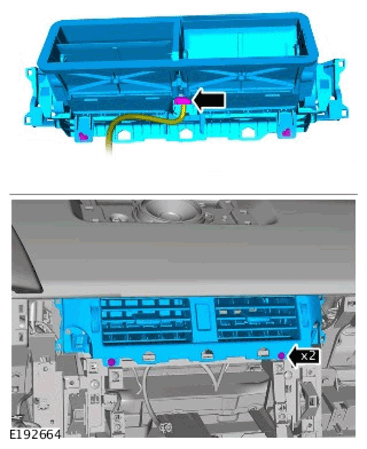

- Remove the center face level vent.
  Torque : 5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

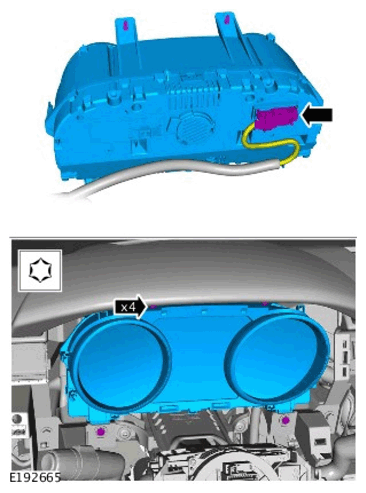

- Remove the instrument cluster assembly.
  Torque : 1.7 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

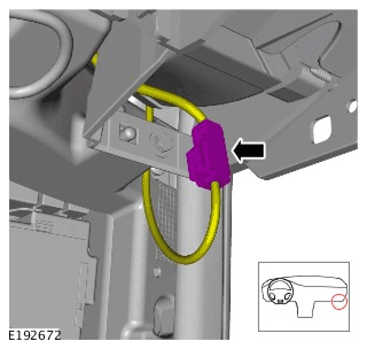

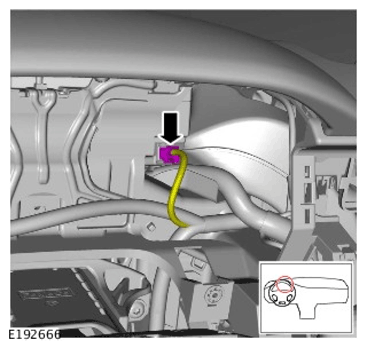

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

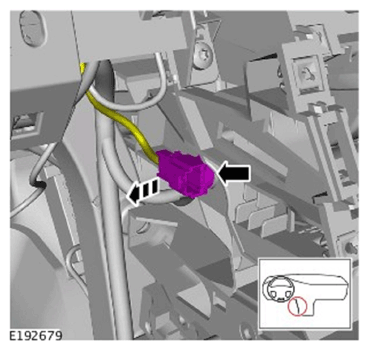

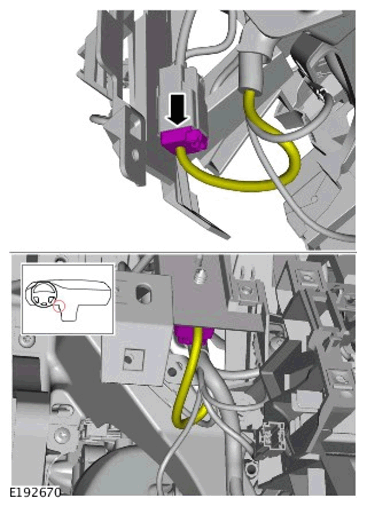

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

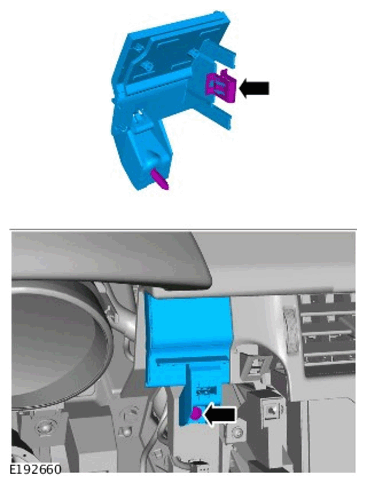

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

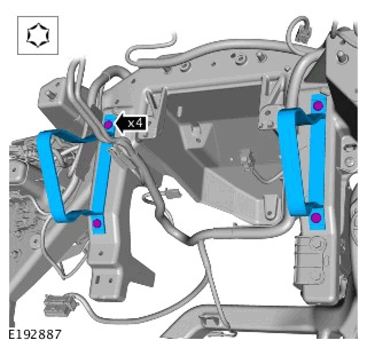

- Remove the four retaining bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

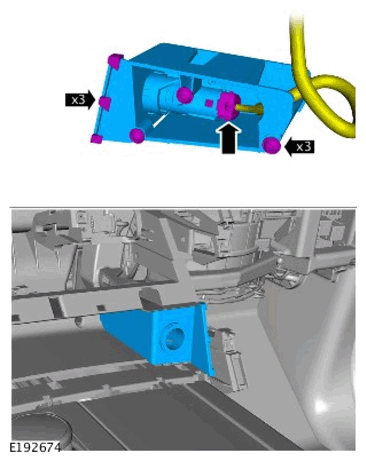

Remove the cigar lighter housing.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

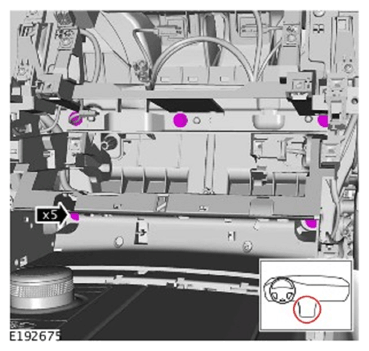

- Remove the five retaining bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

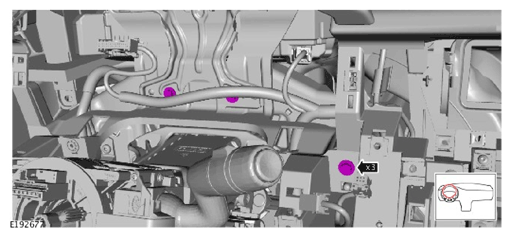

- Remove the three retaining bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the three retaining bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the component.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

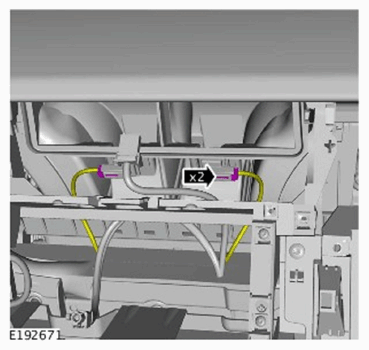

Disconnect the two electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

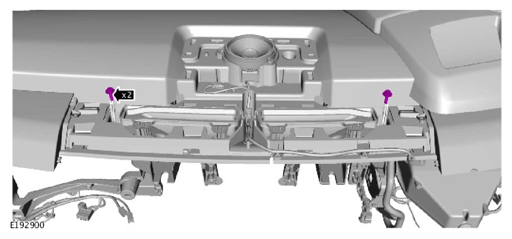

Remove the 2 upper bolts.
CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the instrument panel upper trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the lower cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

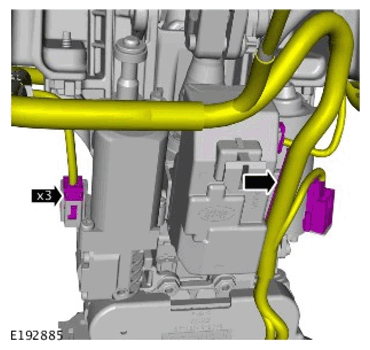

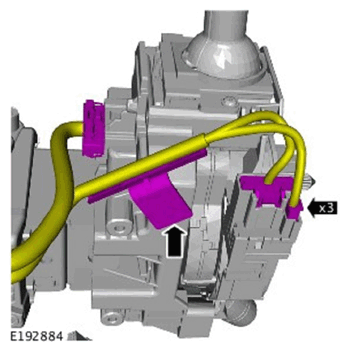

Disconnect the electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

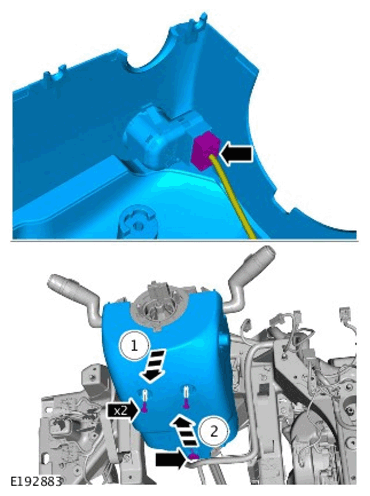

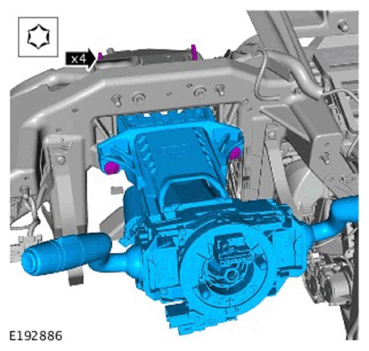

Remove the steering column assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

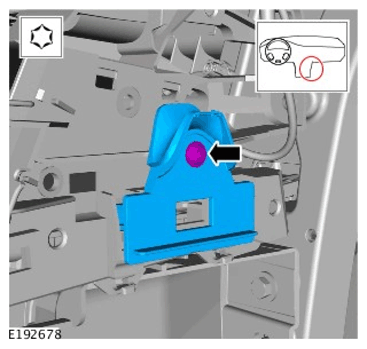

Remove the brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

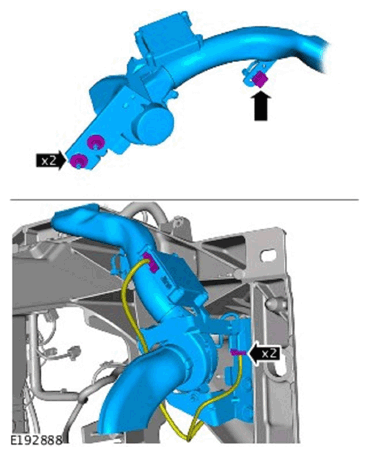

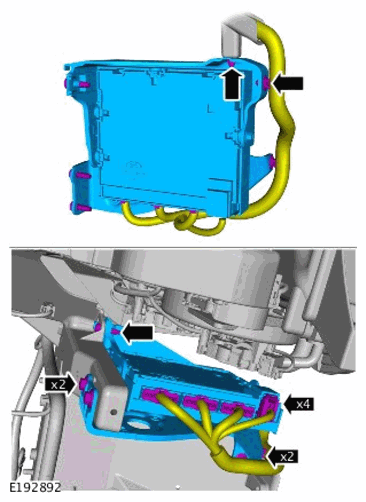

Remove the Head Up Display (HUD) cooling fan assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the instrument panel wiring harness retaining bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

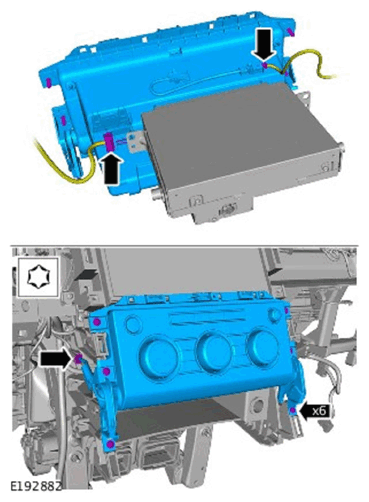

Remove the climate control unit.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

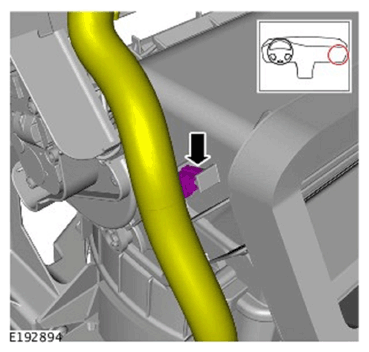

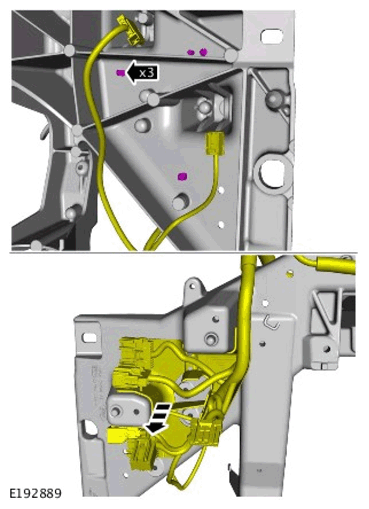

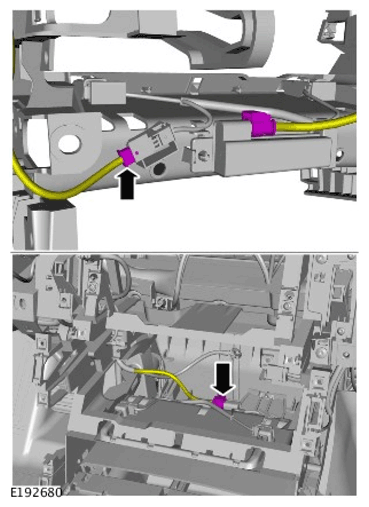

Detach the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

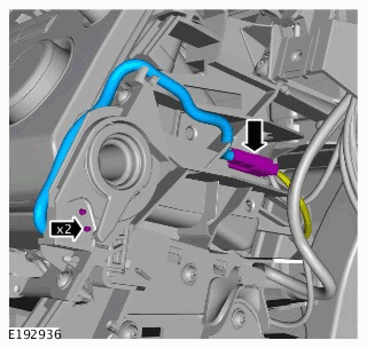

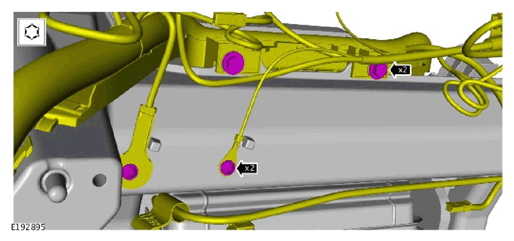

- Remove the two bolts.
- Remove the ground cable two retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

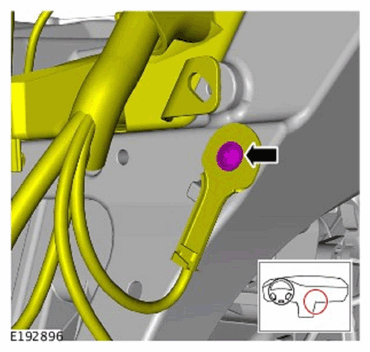

Remove the ground cable bolt.
CAUTION: Take extra care not to damage the wiring harnesses.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

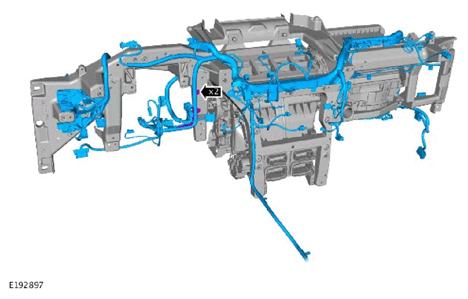

Remove the instrument panel wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

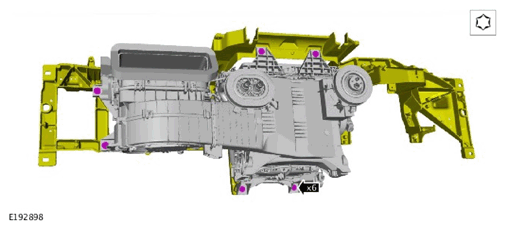

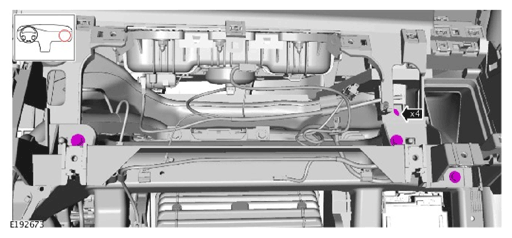

- Remove the instrument panel cross-car beam rear bolts.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

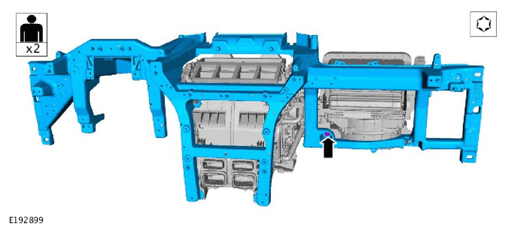

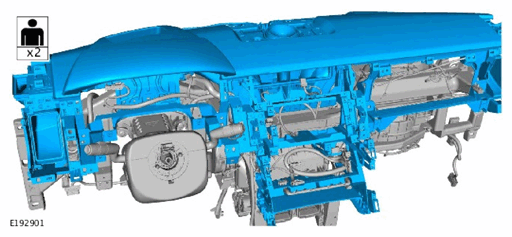

- Remove the instrument panel cross-car beam.
  Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

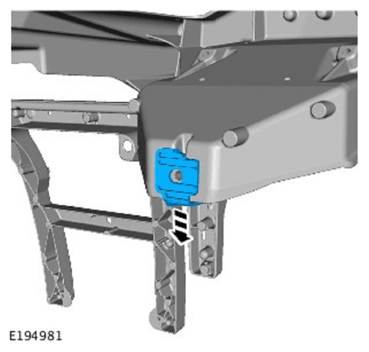

Remove the spacer.
