Ignition Switch (G2218890): Removal

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

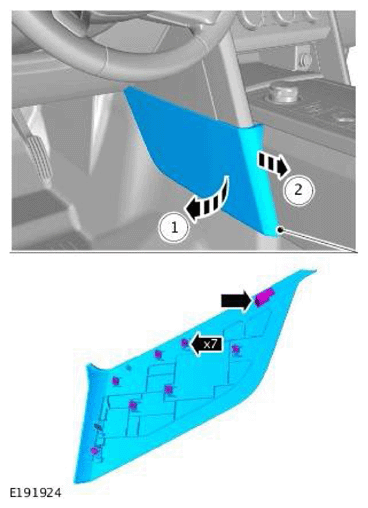

Remove the floor console lower cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

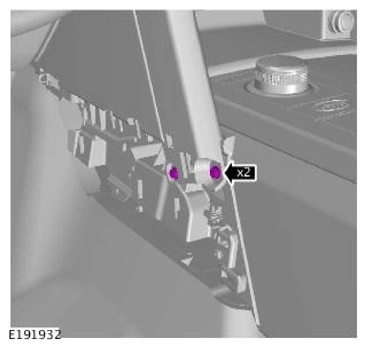

Remove the retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

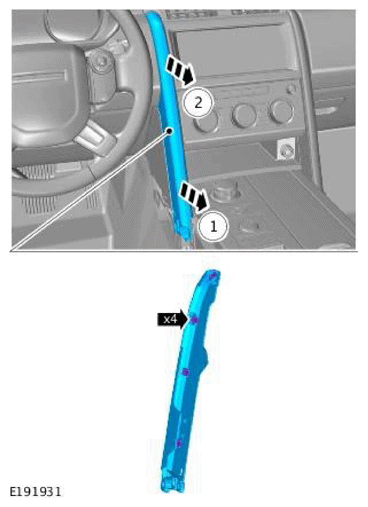

Remove the center console vertical finisher.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

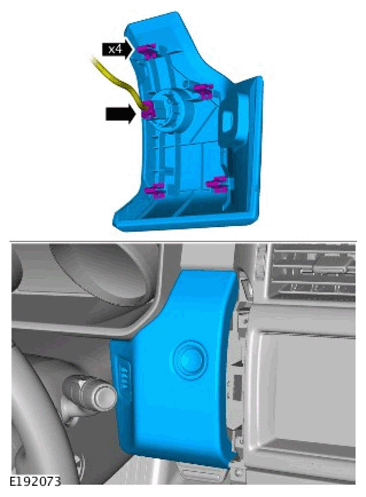

- Remove the ignition switch and trim panel.
- Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the ignition switch.
