Service Instructions

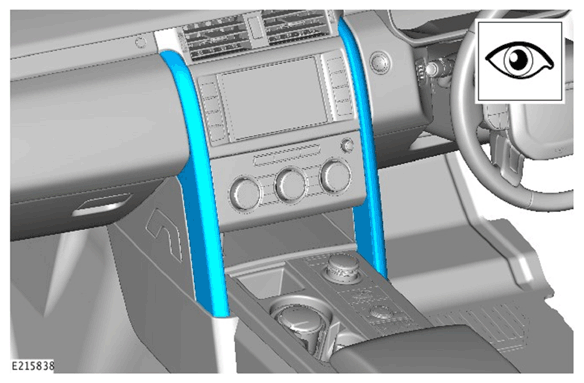

  1. Inspect the instrument panel trim.
    • When the front stowage compartment is installed the instrument panel trim should be a bright finish.
    • If the instrument panel trim is a black finish these must be replaced with bright finish trims.
    G12010721Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

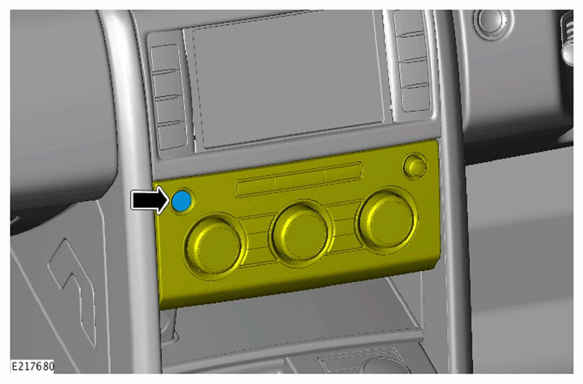

  2. Open the front stowage compartment lid.
    G12010722Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

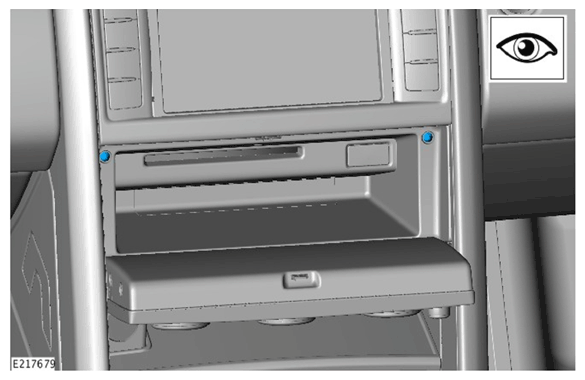

  3. Locate the front stowage compartment lid buffers.
    G12010723Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

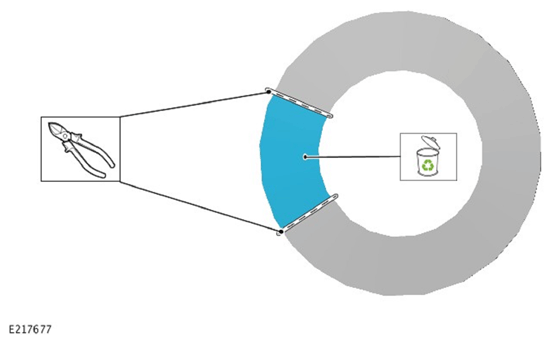

  4. Using a suitable tool, remove and discard a section of the nylon washer (Part number LR113781) as illustrated.
    • A section is removed so that the washer can be installed behind the stowage compartment lid buffer.
    G12010724Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

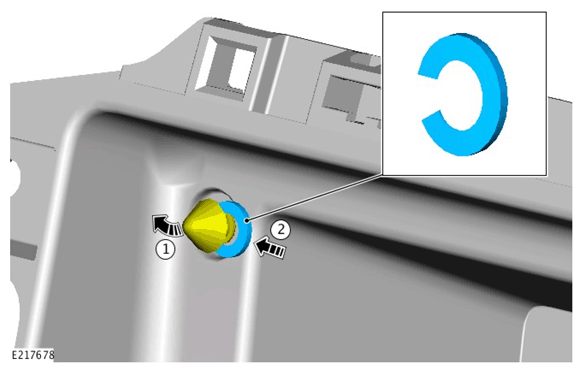

  5. Install the nylon washer behind the lip of the front stowage compartment lid buffer as illustrated.
    G12010725Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. Repeat steps  2 -  5 for the other side of the front stowage compartment.
  7. Test the operation of the front stowage compartment lid.
    • If the front stowage compartment lid operates correctly do not continue with further diagnostic procedures and return the vehicle to the customer  .
    • If the front stowage compartment lid does NOT  operate correctly continue to step 8  .

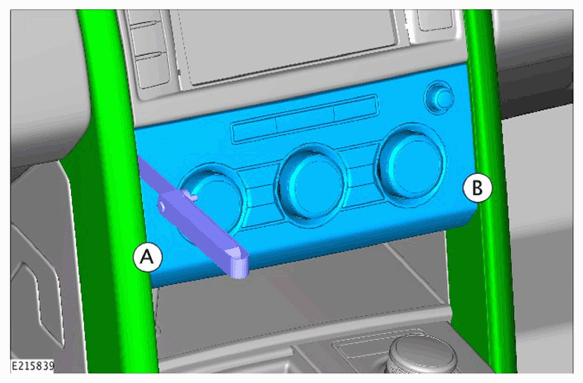

  8. Using a feeler gauge, measure the clearance between the instrument panel trim and the ICP at edge A and then edge B.
    CAUTION: Care must be taken to avoid damaging the surrounding components.
    • Dimension A and B should each be approximately 2 mm.
    • Dimension A and B should also be equal (approximately 2 mm).
    • If dimension A or B is below specification this would indicate which side of the instrument panel is causing the concern. Follow the relevant repair method below.
    G12010726Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    If dimension A is below specification

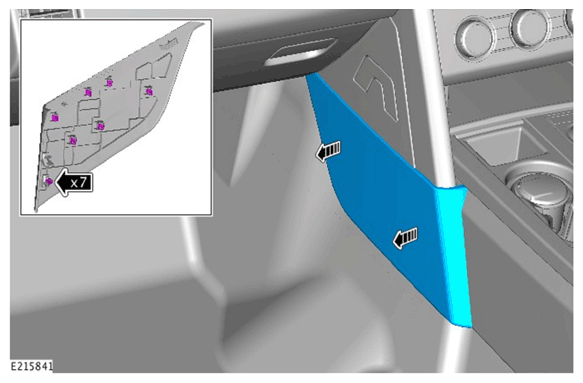

  9. Remove the floor console trim.
    G12010727Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

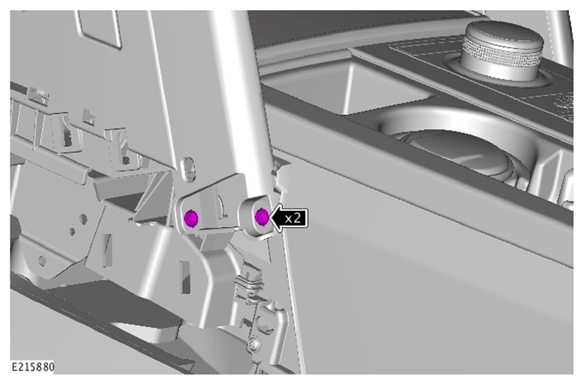

  10. Remove the instrument panel trim retaining screws.
    G12010728Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

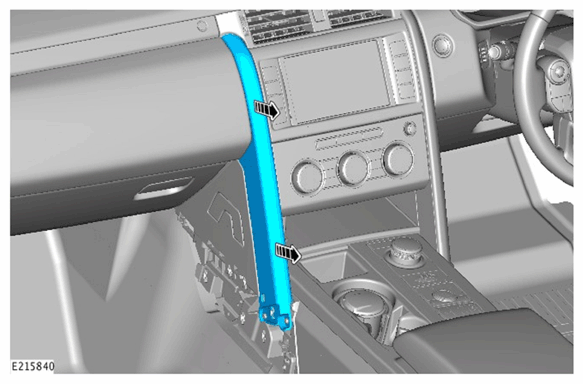

  11. Remove the instrument panel trim.
    G12010729Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

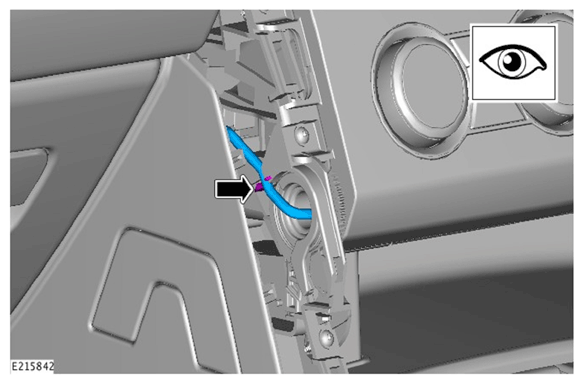

  12. Inspect the ICP electrical wiring harness.
    • The ICP electrical wiring harness must be installed into its locating channel.
    G12010730Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

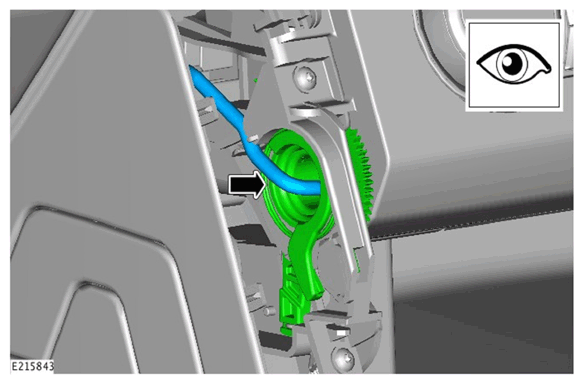

  13. Inspect the ICP electrical wiring harness.
    • The ICP electrical wiring harness must not be tight on the ICP pivot mechanism.
    • If the ICP electrical wiring harness is too tight, adjust the positioning so it is clear and allows the ICP to pivot freely.
    G12010731Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

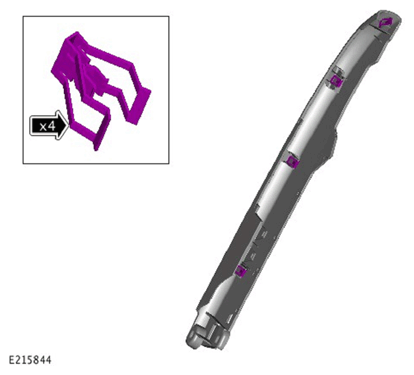

  14. Make sure all of the retaining clips are installed on the instrument panel trim before installing.
    G12010732Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

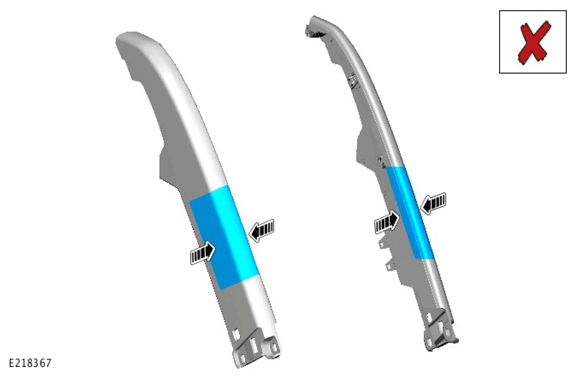

  15. When installing do not apply pressure to the sides of the instrument panel trim as this will cause misalignment of the locating tabs.
    G12010733Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

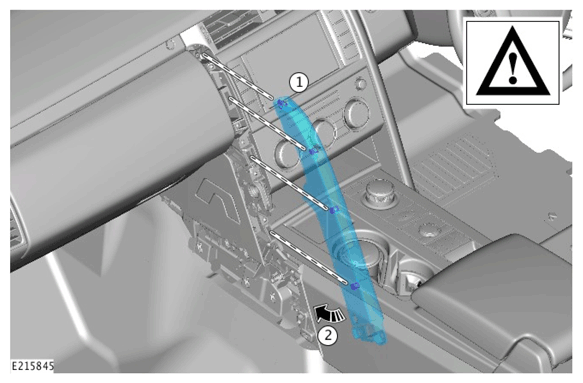

  16. When installing the instrument panel trim start with the uppermost retaining clip (1) and then rotate the instrument panel trim into position (2).
    CAUTION: Make sure the instrument panel trim retaining clips are aligned correctly before installing fully.
    G12010734Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  17. Install the instrument panel trim retaining screws.
    • Torque: 10 Nm
    G12010728Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

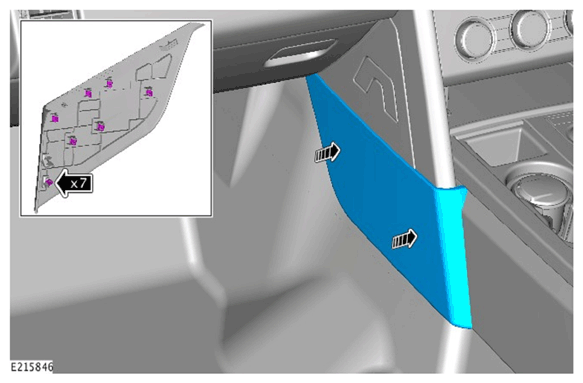

  18. Install the floor console trim.
    G12010736Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    If dimension B is below specification

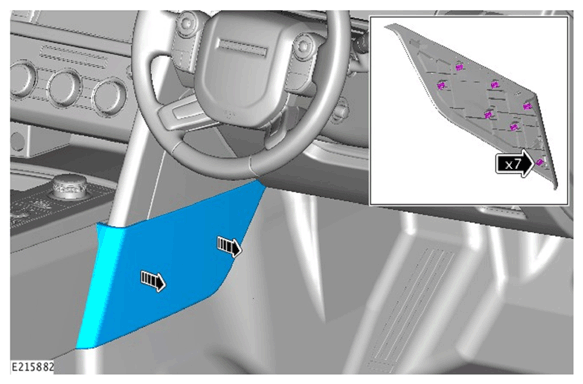

  19. Remove the floor console trim.
    G12010737Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

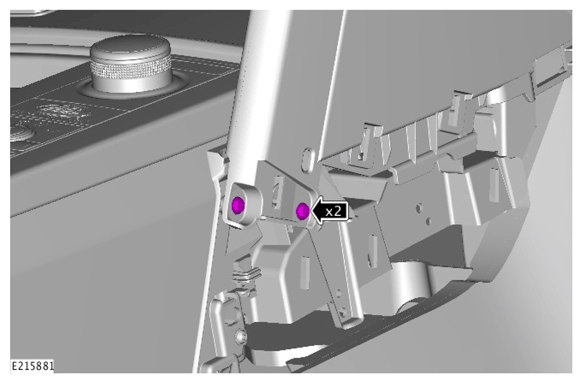

  20. Remove the instrument panel trim retaining screws.
    G12010738Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

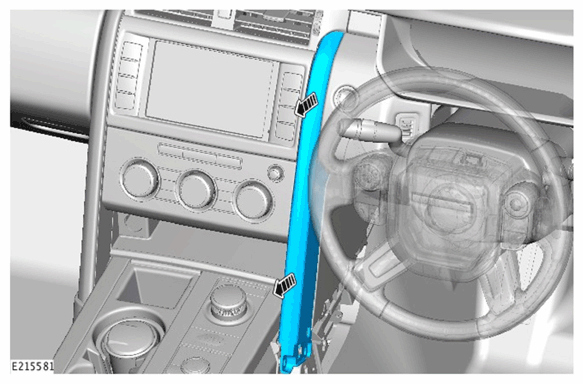

  21. Remove the instrument panel trim.
    G12010739Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

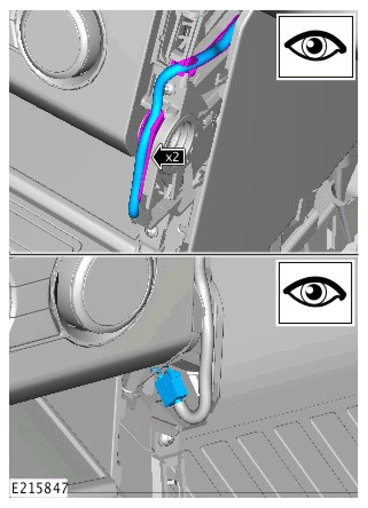

  22. Inspect the installation of the front stowage compartment microswitch and electrical wiring harness.
    • The front stowage compartment microswitch must be located correctly and the electrical harness installed into the locating channel.
    G12010740Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  23. When installing do not apply pressure to the sides of the instrument panel trim as this will cause misalignment of the locating tabs.
    G12010733Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

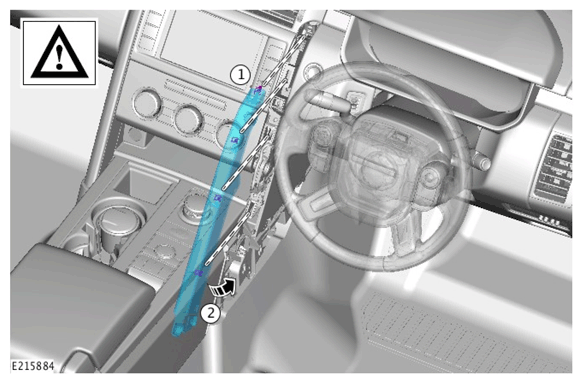

  24. When installing the instrument panel trim start with the uppermost retaining clip (1) and then rotate the instrument panel trim into position (2).
    G12010742Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  25. Install the instrument panel trim retaining screws.
    • Torque: 10 Nm
    G12010738Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  26. Install the floor console trim.
    G12010744Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  27. Test the operation of the front stowage compartment lid.
    • If, after completing this procedure, the front stowage compartment lid does not open correctly submit a request for technical assistance.
