Instrument Cluster Lens (G1948116): Removal

CAUTION: Use a suitable trim tool.

NOTE:

Take care not to leave finger prints inside the new lens when fitting.
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
Remove the instrument cluster.
Refer to: INSTRUMENT CLUSTER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

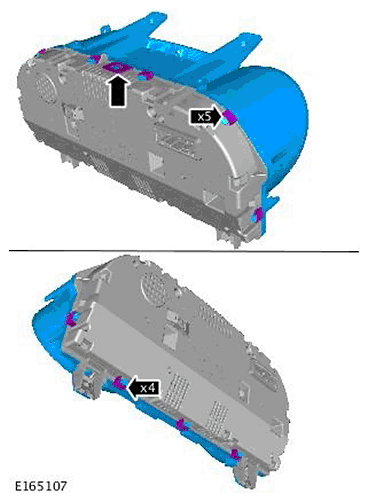

Remove the instrument cluster finish panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

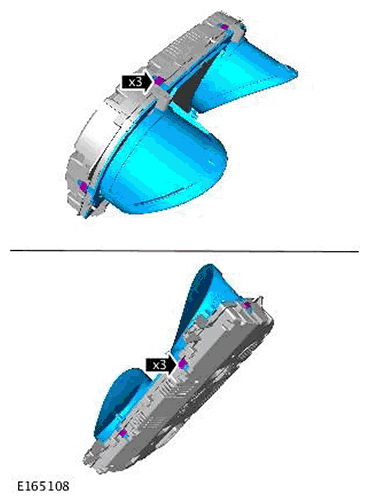

Remove the instrument cluster inner panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

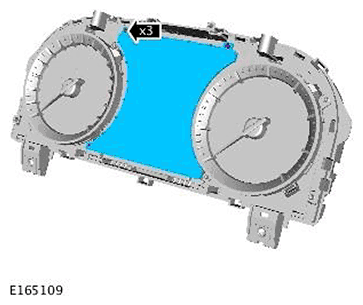

Remove the instrument cluster center lens.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

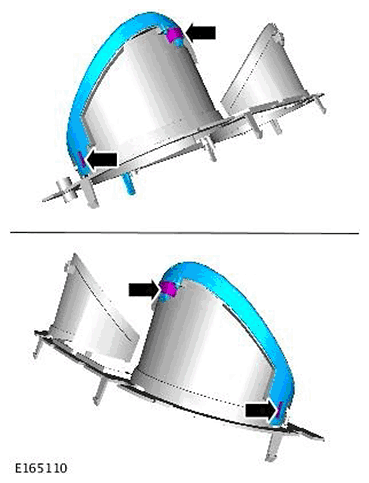

Remove the instrument cluster outer lens.
