Lower Timing Chain - INGENIUM I4 2.0L Petrol - PHEV (G2748116): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

WARNING: Jaguar Land Rover (JLR) Electric Vehicle Competent Person (EVCP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the High Voltage (HV) system. Only technicians qualified to EVCP level or higher are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: DESCRIPTION AND OPERATION .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Remove the hood.
Refer to: HOOD
Remove the upper timing cover.
Refer to: UPPER TIMING COVER
Remove the lower timing cover.
Refer to: LOWER TIMING COVER - INGENIUM I4 2.0L PETROL - PHEV
Remove the charge air cooler.
Refer to: CHARGE AIR COOLER - INGENIUM I4 2.0L PETROL - PHEV
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

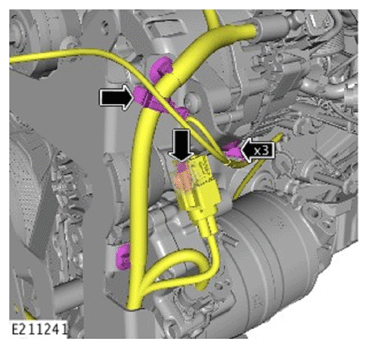

- Release the 5 clips.
- Reposition the wiring harness away form the charge air cooler bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

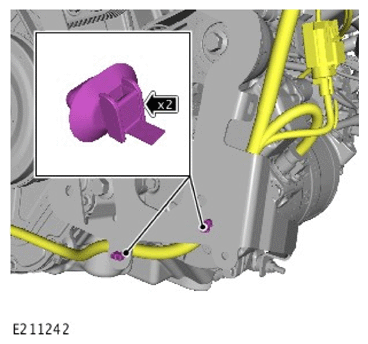

- Release the 2 clips.
- Reposition the wiring harness away from the charge air cooler bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

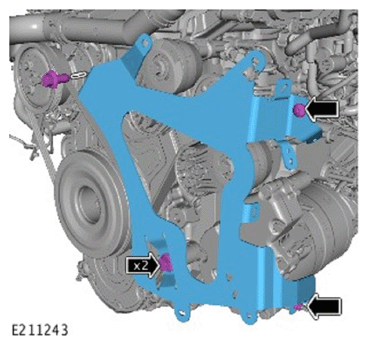

- Remove the nut.
- Remove the 3 bolts.
- Remove the charge air cooler bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1656
- Use the special tool to rotate the crankshaft clockwise until the timing marks align as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1635
- Install and tighten the 2 bolts.
  Torque : 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1636
- Install and tighten the 2 bolts.
  Torque : 13 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Assemble the special tools as illustrated.

Special Tool(s): JLR-303-1630 , JLR-303-1686
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tools.

Special Tool(s): JLR-303-1630 , JLR-303-1686
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Loosen, but do not fully remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the upper timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1636
CAUTION: Note the location of the Variable Camshaft Timing (VCT) units prior to removal. Each VCT unit is matched to a specific camshaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove and discard the 2 bolts.
- Remove the 2 VCT actuators.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove and discard the upper timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove and discard the upper timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the upper timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the upper timing chain.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove and discard the lower timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove and discard the lower timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove and discard the lower timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the idler sprocket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the lower timing chain.
