Radiator (G2422714): Removal
CAUTION:
- Be prepared to collect escaping coolant.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
- Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING
- Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
- Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
- Remove the cooling module.

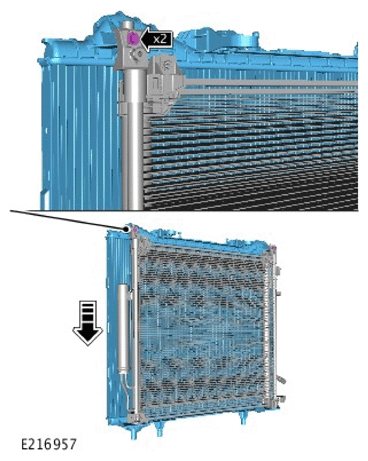

- Remove the 2 screws.
- Remove the radiator.
