Accessory Drive - INGENIUM I4 2.0L Petrol/INGENIUM I4 2.0L Petrol - PHEV: Specifications
Torque Specifications
NOTE:
Numbers with a green background are a single use component.

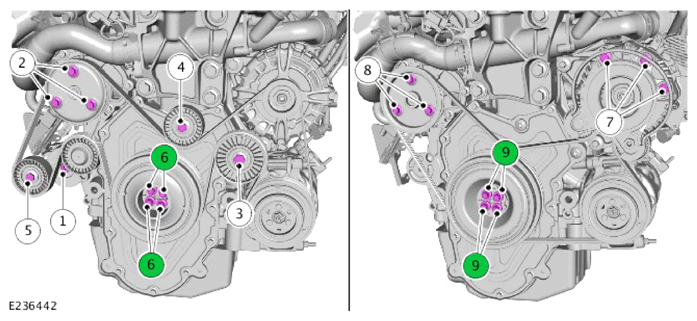

| COMPONENT TORQUE LOCATION |
|---|
NON MILD HYBRID ELECTRIC VEHICLES - TORQUE SPECIFICATIONS
| DESCRIPTION | NM/DEGREES | LB-FT | LB-IN | |||
|---|---|---|---|---|---|---|
| 1 | Accessory drive belt tensioner bolt | 47.5 | 35 | - | ||
| 2 | Coolant pump pulley bolts | 25 | 18 | - | ||
| 3 | Accessory drive belt tensioner left pulley bolt | 47.5 | 35 | - | ||
| 4 | Accessory drive belt center pulley bolt | 25 | 18 | - | ||
| 5 | Accessory drive belt right pulley bolt | 25 | 18 | - | ||
| 6 | Crankshaft pulley bolts | Stage 1: 37 | Stage 2: 90° | Stage 1: 27 | Stage 2: 90° | - |
MILD HYBRID ELECTRIC VEHICLES - TORQUE SPECIFICATIONS
| DESCRIPTION | NM | LB-FT | LB-IN | |||
|---|---|---|---|---|---|---|
| 7 | Accessory drive belt tensioner bolts | 25 | 18 | - | ||
| 8 | Coolant pump pulley bolts | 25 | 18 | - | ||
| 9 | Crankshaft pulley bolts | Stage 1: 37 | Stage 2: 90° | Stage 1: 27 | Stage 2: 90° | - |
