Transfer Case Rear Output Seal - INGENIUM I6 3.0L Diesel (G3140224): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the rear driveshaft.
Refer to: REAR DRIVESHAFT
NOTE: Make sure that the special tool is installed in the correct orientation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

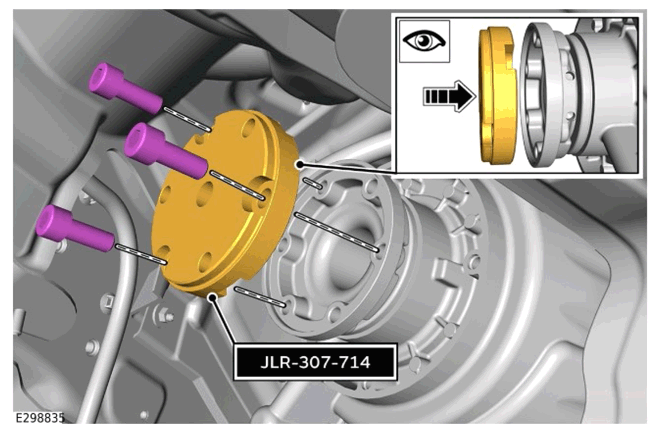

Install the special tool to the transfer case rear output flange as illustrated.

Special Tool(s): JLR-307-714
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

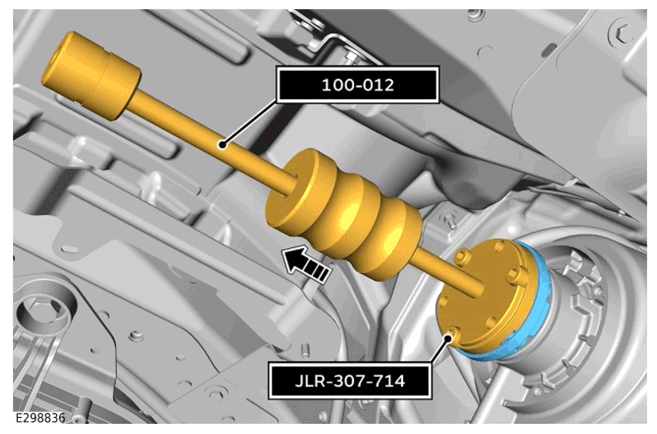

Use the special tool to remove the transfer case rear output flange.

Special Tool(s): JLR-307-714 , 100-012
CAUTION: Care must be taken when removing the seal to avoid damage to the recess. Failure to follow this instruction may result in damage to the component(s).

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

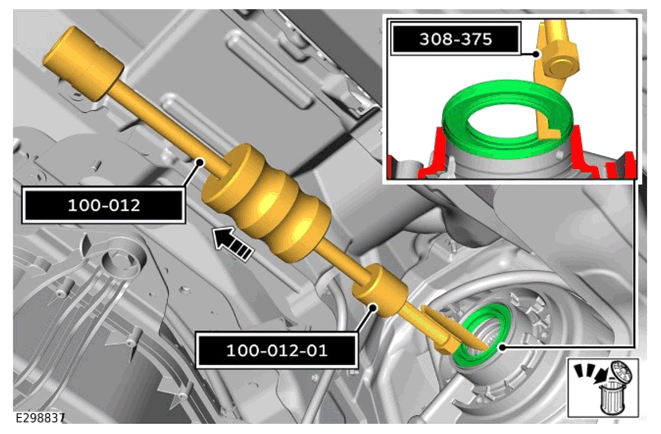

Use the special tools to remove the transfer case rear output shaft seal.

Special Tool(s): 100-012-01 , 100-012 , 308-375
