Transfer Case Input Seal - INGENIUM I6 3.0L Diesel (G3185510): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Raise and support the vehicle.
Refer to: JACKING AND LIFTING
Remove the transfer case.
Refer to: TRANSFER CASE - INGENIUM I6 3.0L DIESEL
CAUTION: Care must be taken to avoid damage to the seal register and running surface.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

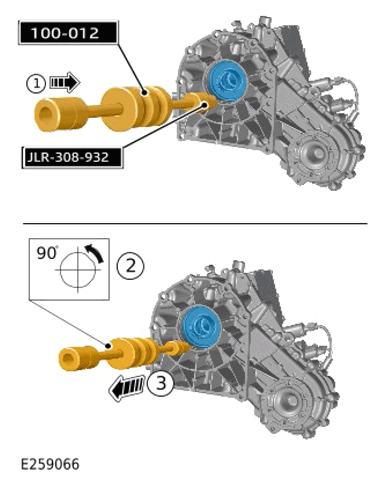

Use the special tools to remove and discard the transfer case input seal.

Special Tool(s): JLR-308-932 , 100-012
