Transfer Case Input Seal - INGENIUM I6 3.0L Diesel (G3185510): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

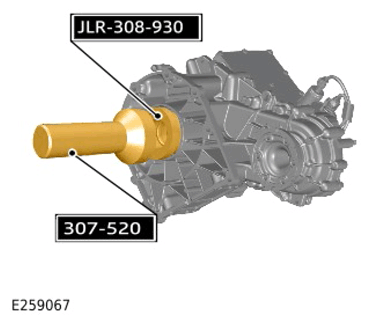

Use the special tools to install a new transfer case input seal.

Special Tool(s): JLR-308-930 , 307-520
Install the transfer case.
Refer to: TRANSFER CASE - INGENIUM I6 3.0L DIESEL
Connect the 12V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
