Transfer Case Front Output Seal - INGENIUM I6 3.0L Diesel (G3140222): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

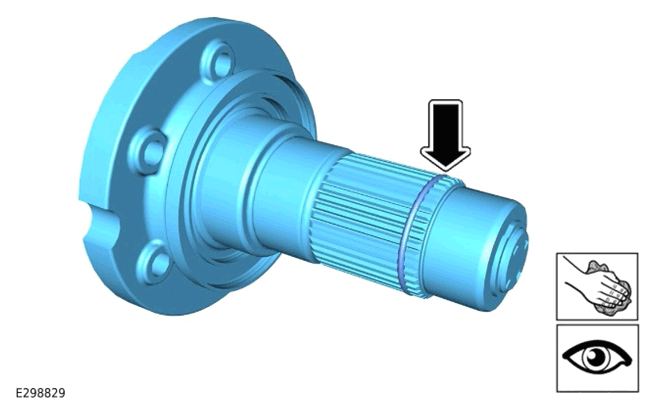

- Clean the transfer case front output flange.
- Inspect the transfer case flange and circlip, replace if damaged or worn.
CAUTION: Make sure that the mating face is clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

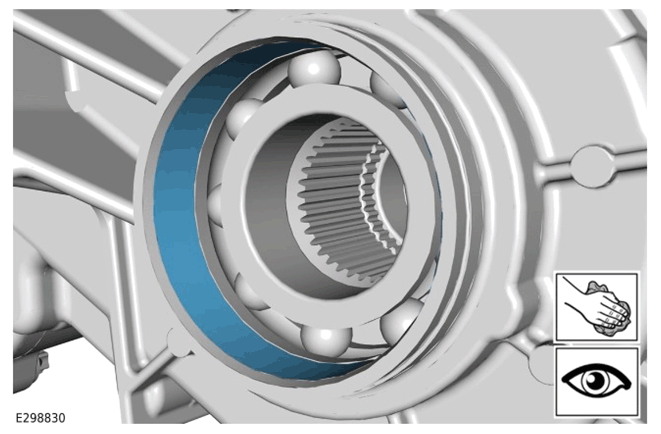

Clean and inspect the transfer case front output seal mating face where illustrated.
CAUTION: The oil seals must be installed dry.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

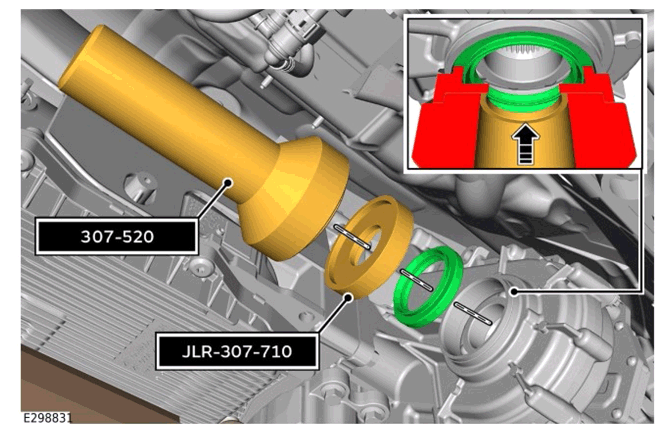

Use the special tools to install the new transfer case front output seal.

Special Tool(s): 307-520 , JLR-307-710
CAUTION: Make sure that the output flange is installed correctly by pulling the flange gently to make sure it is engaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

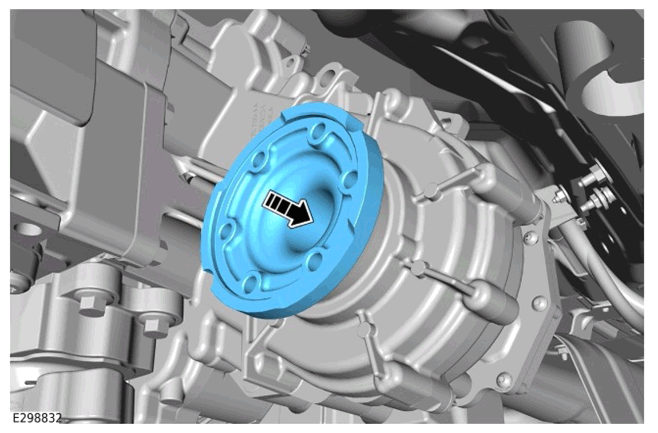

Install the transfer case front output flange.
Install the front driveshaft.
Refer to: FRONT DRIVESHAFT
Fill the transfer case.
Refer to: TRANSFER CASE PARTIAL DRAINING AND FILLING - INGENIUM I6 3.0L DIESEL
