AWD Lock Solenoid

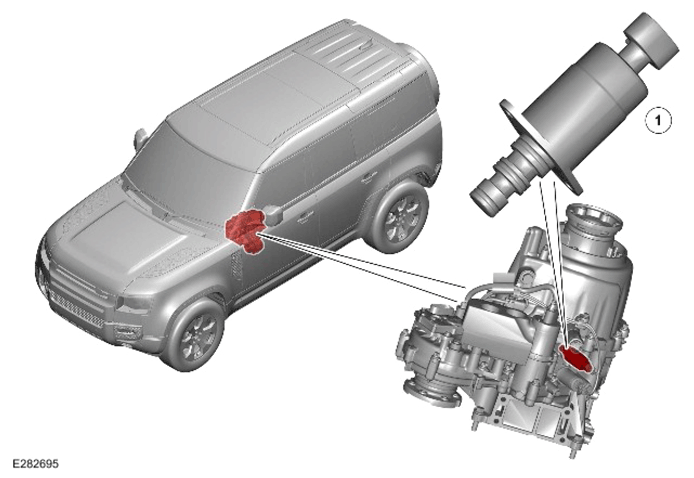

G15309464Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 AWD  lock solenoid

The AWD  lock solenoid is installed to the twin speed transfer case. the AWD  lock solenoid is connected to the TCCM  through a 2-pin connector.
