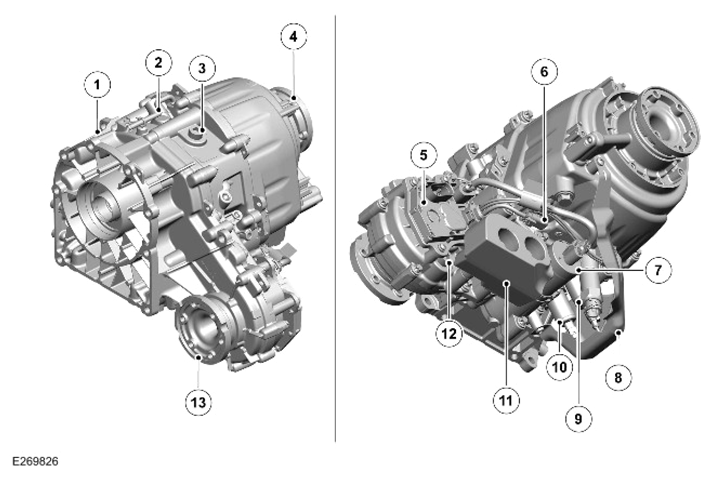

Component Location - 2 Of 2
| ITEM | DESCRIPTION |
|---|---|
| 1 | Mating face - Automatic transmission |
| 2 | Breather |
| 3 | Fill/level plug (upper sump) |
| 4 | Connecting - Rear driveshaft |
| 5 | Transfer Case Control Module (TCCM) |
| 6 | High/low range position sensor |
| 7 | Pump actuator |
| 8 | Head shield |
| 9 | All Wheel Drive (AWD) lock solenoid |
| 10 | Clutch actuation solenoid |
| 11 | Mass damper |
| 12 | Drain plug (lower sump) |
| 13 | Connecting - Front dirveshaft |
