Four-Wheel Drive Systems (G2413533): Specifications

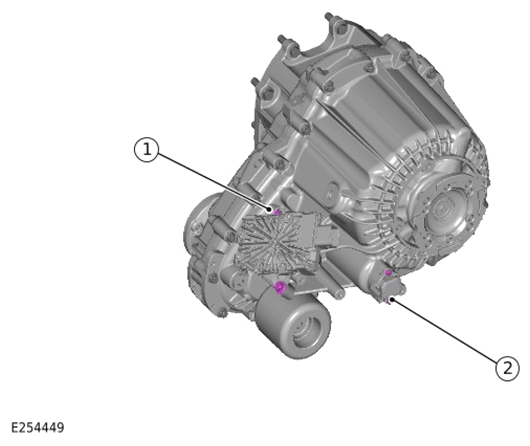

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM		LB-FT
1	Transfer case control module bolts	18		13.3
2	Transfer case sensor bolts	5		3.7

NOTE: Vehicles with INGENIUM 3.0 Liter Diesel.

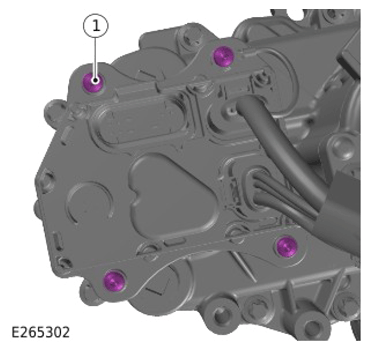

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM		LB-FT
1	Transfer case control module bolts	6		4.4
