Battery And Charging System - General Information (G2323766): Specifications
STARTUP BATTERY SPECIFICATION
| Item | Specifications |
|---|---|
| Type | Absorbed glass mat (AGM) |
| Capacity | 90 Ah |
| Cold cranking amps | 850 CCA |
| Reserve capacity | 150 minutes |
Startup battery disconnect/connect
CAUTION:
- The vehicle status and start up battery condition must be established before attempting battery disconnect/connect. Reference must then be made to the following table to establish the relevant procedure to be followed.
- After connecting the start up battery, the steering wheel must be turned to full left-hand and full right-hand lock with the engine running. This allows the dynamic stability control system to calibrate the steering wheel position. Failure to follow this instruction may result in a variety of Instrument Panel Cluster (IPC) warning lamps being illuminated.
NOTE:
- If there is insufficient capacity in the startup battery to disarm the alarm, the alarm may sound on connection of the startup battery - turning the ignition key to position II will disarm the alarm.
- If a new startup battery is installed, the startup Battery Monitoring System (BMS) must be reset using Jaguar Land Rover approved diagnostic equipment.
| VEHICLE STATUS | BATTERY CHARGED | BATTERY DISCHARGED |
|---|---|---|
| - | Procedure | Procedure |
| Vehicles without Telematics | - | - |
| Engine running | 1 | - |
| Vehicle powered down, locked and alarmed | 2 | 3 |
| Vehicle unlocked | 4 | 5 |
| Vehicles with Telematics | - | - |
| Engine running | 6 | - |
| Vehicle powered down, locked and alarmed | 7 | 8 |
| Vehicle unlocked | 9 | 10 |

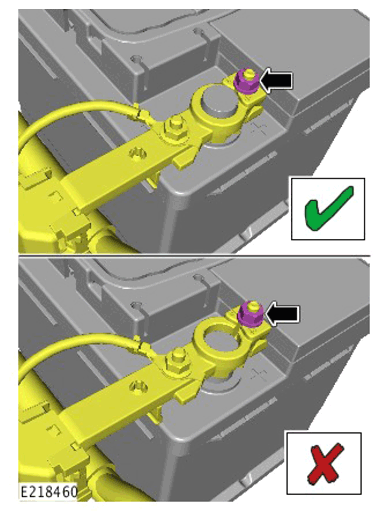

| CONNECTING THE STARTUP BATTERY POSITIVE CABLE |
|---|
BATTERY DESCRIPTION - PROCEDURE 1
| DISCONNECT THE BATTERY | CONNECT THE BATTERY |
|---|---|
| 1. If possible, apply the parking brake or chock the wheels. | 1. Make sure that all the electrical systems and ignition are switched OFF . |
| 2. Set the ignition to the OFF position. | 2. Connect the battery GROUND cable. |
| 3. Wait 2 minutes for the engine management system to POWER DOWN . | 3. Reset electric window one-touch facility. Power window up to hard stop, release switch, reapply and hold for 1 second, (relay in door will click). One touch should now work. |
| 4. Disconnect the battery GROUND cable. | 4. Using suitable Land Rover diagnostic equipment calibrate the electric park brake and tailgate. Check the clock and navigation settings. |
BATTERY DESCRIPTION - PROCEDURE 2
| DISCONNECT THE BATTERY | CONNECT THE BATTERY |
|---|---|
| 1. Unlock the vehicle and disarm the alarm using the UNLOCK button on the key fob. | 1. Make sure that all the electrical systems and ignition are switched OFF . |
| 2. Enter the vehicle. Set the ignition to the ON position. Apply the parking brake or chock the wheels and then set the ignition to the OFF position. | 2. Connect the battery GROUND cable. |
| 3. Wait 2 minutes for the engine management system to POWER DOWN . | 3. Reset electric window one-touch facility. Power window up to hard stop, release switch, reapply and hold for 1 second, (relay in door will click). One touch should now work. |
| 4. Disconnect the battery GROUND cable. | 4. Using suitable Land Rover diagnostic equipment calibrate the electric park brake and tailgate. Inspect the clock and navigation settings. |
BATTERY DESCRIPTION - PROCEDURE 3
| DISCONNECT THE BATTERY | CONNECT THE BATTERY |
|---|---|
| 1. Unlock the vehicle from the driver's door using the key. | 1. Make sure that all the electrical systems and ignition are switched OFF . |
| 2. Enter the vehicle. Apply the parking brake or chock the wheels. | 2. Connect the battery GROUND cable. |
| 3. Disconnect the battery GROUND cable. | 3. Set the ignition to the ON position. |
| 4. Reset electric window one-touch facility. Power window up to hard stop, release switch, reapply and hold for 1 second, (relay in door will click). One touch should now work. | |
| 5. Using suitable Land Rover diagnostic equipment calibrate the electric park brake and tailgate. Inspect the clock and navigation settings. |
BATTERY DESCRIPTION - PROCEDURE 4
| DISCONNECT THE BATTERY | CONNECT THE BATTERY |
|---|---|
| 1. Enter the vehicle. Set the ignition to the ON position. Apply the parking brake or chock the wheels and then set the ignition to the OFF position. | 1. Make sure that all the electrical systems and ignition are switched OFF . |
| 2. Wait 2 minutes for the engine management system to POWER DOWN . | 2. Connect the battery GROUND cable. |
| 3. Disconnect the battery GROUND cable. | 3. Reset electric window one-touch facility. Power window up to hard stop, release switch, reapply and hold for 1 second, (relay in door will click). One touch should now work. |
| 4. Using suitable Jaguar Land Rover diagnostic equipment calibrate the electric park brake and tailgate. Check the clock and navigation settings. |
BATTERY DESCRIPTION - PROCEDURE 5
| DISCONNECT THE BATTERY | CONNECT THE BATTERY |
|---|---|
| 1. Enter the vehicle. Apply the parking brake or chock the wheels. | 1. Make sure that all the electrical systems and ignition are switched OFF . |
| 2. Disconnect the battery GROUND cable. | 2. Connect the battery GROUND cable. |
| 3. Set the ignition to the ON position. | |
| 4. Reset electric window one-touch facility. Power window up to hard stop, release switch, reapply and hold for 1 second, (relay in door will click). One touch should now work. | |
| 5. Using suitable Jaguar Land Rover diagnostic equipment calibrate the electric park brake and tailgate. Check the clock and navigation settings. |
BATTERY DESCRIPTION - PROCEDURE 6
| DISCONNECT THE BATTERY | CONNECT THE BATTERY |
|---|---|
| 1. Make sure the customer has placed stolen vehicle tracking into Service Mode , (if equipped). | 1. Make sure that all the electrical systems and ignition are switched OFF . |
| 2. If possible, apply the parking brake or chock the wheels. | 2. Connect the battery GROUND cable. |
| 3. Set the ignition to the OFF position. | 3. Reset electric window one-touch facility. Power window up to hard stop, release switch, reapply and hold for 1 second, (relay in door will click). One touch should now work. |
| 4. Wait 2 minutes for the engine management system to POWER DOWN . | 4. Using suitable Jaguar Land Rover diagnostic equipment calibrate the electric park brake and tailgate. Check the clock and navigation settings. |
| 5. Disconnect the battery GROUND cable. | 5. Request stolen vehicle tracking removed from Service Mode , (if equipped). |
BATTERY DESCRIPTION - PROCEDURE 7
| DISCONNECT THE BATTERY | CONNECT THE BATTERY |
|---|---|
| 1. Make sure the customer has placed stolen vehicle tracking into Service Mode , (if equipped). | 1. Make sure that all the electrical systems and ignition are switched OFF . |
| 2. Unlock the vehicle and disarm the alarm using the UNLOCK button on the key fob. | 2. Connect the battery GROUND cable. |
| 3. Enter the vehicle. Set the ignition to the ON position. Apply the parking brake or chock the wheels and then set the ignition to the OFF position. | 3. Reset electric window one-touch facility. Power window up to hard stop, release switch, reapply and hold for 1 second, (relay in door will click). One touch should now work. |
| 4. Wait 2 minutes for the engine management system to POWER DOWN . | 4. Using suitable Jaguar Land Rover diagnostic equipment calibrate the electric park brake and tailgate. Check the clock and navigation settings. |
| 5. Disconnect the battery GROUND cable. | 5. Request stolen vehicle tracking removed from Service Mode , (if equipped). |
Procedure 8
CAUTION:
Battery discharge may have activated the stolen vehicle tracking, check with customer if equipped.
BATTERY DESCRIPTION - PROCEDURE 8
| DISCONNECT THE BATTERY | CONNECT THE BATTERY |
|---|---|
| 1. Make sure the customer has placed stolen vehicle tracking into Service Mode , (if equipped). | 1. Make sure that all the electrical systems and ignition are switched OFF . |
| 2. Unlock the vehicle from the driver's door using the key. | 2. Connect the battery GROUND cable |
| 3. Enter the vehicle. Apply the parking brake or chock the wheels. | 3. Set the ignition to the ON position. |
| 4. Disconnect the battery GROUND cable. | 4. Reset electric window one-touch facility. Power window up to hard stop, release switch, reapply and hold for 1 second, (relay in door will click). One touch should now work. |
| 5. Using suitable Jaguar Land Rover diagnostic equipment calibrate the electric park brake and tailgate. Check the clock and navigation settings. | |
| 6. Request stolen vehicle tracking removed from Service Mode , (if equipped). |
BATTERY DESCRIPTION - PROCEDURE 9
| DISCONNECT THE BATTERY | CONNECT THE BATTERY |
|---|---|
| 1. Make sure the customer has placed stolen vehicle tracking into Service Mode , (if equipped). | 1. Make sure that all the electrical systems and ignition are switched OFF . |
| 2. Enter the vehicle. Set the ignition to the ON position. Apply the parking brake or chock the wheels and then set the ignition to the OFF position. | 2. Connect the battery GROUND cable. |
| 3. Wait 2 minutes for the engine management system to POWER DOWN . | 3. Reset electric window one-touch facility. Power window up to hard stop, release switch, reapply and hold for 1 second, (relay in door will click). One touch should now work. |
| 4. Disconnect the battery GROUND cable. | 4. Using suitable Jaguar Land Rover diagnostic equipment calibrate the electric park brake and tailgate. Check the clock and navigation settings. |
| 5. Request stolen vehicle tracking removed from Service Mode , (if equipped). |
Procedure 10
CAUTION:
Battery discharge may have activated the stolen vehicle tracking, check with customer if equipped.
| DISCONNECT THE BATTERY | CONNECT THE BATTERY |
|---|---|
| 1. Make sure the customer has placed stolen vehicle tracking into Service Mode , (if equipped). | 1. Make sure that all the electrical systems and ignition are switched OFF . |
| 2. Enter the vehicle. Apply the parking brake or chock the wheels. | 2. Connect the battery GROUND cable. |
| 3. Disconnect the battery GROUND cable. | 3. Set the ignition to the ON position. |
| 4. Reset electric window one-touch facility. Power window up to hard stop, release switch, reapply and hold for 1 second, (relay in door will click). One touch should now work. | |
| 5. Using suitable Jaguar Land Rover diagnostic equipment calibrate the electric park brake and tailgate. Check the clock and navigation settings. | |
| 6. Request stolen vehicle tracking removed from Service Mode , (if equipped). |
Vehicle Jump (Emergency) Starting - Using Another Vehicle
WARNING:
- Take care when working near rotating parts of the engine.
- Prior to attempting to start the disabled vehicle, make sure that the parking brake is applied or suitably chock the wheels. Make sure that 'P' - PARK - Automatic Transmission or NEUTRAL - Manual Transmission is selected.
- Suitable eye protection must be worn when working in the vicinity of the battery.
- DO NOT attempt to start the disabled vehicle if it is suspected that the electrolyte in the battery is frozen.
- During normal use, batteries emit explosive hydrogen gas sufficient to cause severe explosions and capable of causing serious injury - keep sparks and open flames away from the engine compartment.
CAUTION:
- Make sure that there is no physical contact between the donor and disabled vehicles other than the booster cables.
- Make sure that the slave battery/starting aid is of the 12 volt type.
- Make sure that all electrical systems and ignition are switched OFF prior to connecting the booster cables.
- Disconnect the booster cables prior to operating any electrical systems.
| VEHICLE STATUS | PROCEDURE |
|---|---|
| Vehicles without Telematics | 1 |
| Vehicles with Telematics | 2 |
BATTERY DESCRIPTION - PROCEDURE 1
| COMPLETE THE FOLLOWING OPERATIONS IN THE SEQUENCE GIVEN |
|---|
| 1. Connect one end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the DONOR vehicle |
| 2. Connect the other end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the DISABLED vehicle |
| 3. Connect one end of the BLACK (-) booster cable to the GROUND (-) jump start terminal of the DONOR vehicle |
| 4. Connect the other end of the BLACK (-) booster cable to the GROUND (-) jump start terminal on the DISABLED vehicle |
| 5. Start the engine of the DONOR vehicle and allow it to idle for a few minutes |
| 6. Start the engine of the DISABLED vehicle |
| 7. Allow the engines of both vehicles to idle for a few minutes, then switch off the engine of the DONOR vehicle |
| 8. Disconnect the BLACK (-) booster cable from the jump start terminal of the PREVIOUSLY DISABLED vehicle |
| 9. Disconnect the BLACK (-) booster cable from the jump start terminal of the DONOR vehicle |
| 10. Disconnect the RED (+) booster cable from the jump start terminal of the PREVIOUSLY DISABLED vehicle |
| 11. Disconnect the RED (+) booster cable from the jump start terminal of the DONOR vehicle |
BATTERY DESCRIPTION - PROCEDURE 2
| COMPLETE THE FOLLOWING OPERATIONS IN THE SEQUENCE GIVEN |
|---|
| 1. Make sure the customer has placed stolen vehicle tracking into Service Mode , (if equipped). |
| 1. Connect one end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the DONOR vehicle |
| 2. Connect the other end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the DISABLED vehicle |
| 3. Connect one end of the BLACK (-) booster cable to the GROUND (-) jump start terminal of the DONOR vehicle |
| 4. Connect the other end of the BLACK (-) booster cable to the GROUND (-) jump start terminal on the DISABLED vehicle |
| 5. Start the engine of the DONOR vehicle and allow it to idle for a few minutes |
| 6. Start the engine of the DISABLED vehicle |
| 7. Allow the engines of both vehicles to idle for a few minutes, then switch off the engine of the DONOR vehicle |
| 8. Disconnect the BLACK (-) booster cable from the GROUND (-) jump start terminal of the PREVIOUSLY DISABLED vehicle |
| 9. Disconnect the BLACK (-) booster cable from the jump start terminal of the DONOR vehicle |
| 10. Disconnect the RED (+) booster cable from the POSITIVE (+) jump start terminal of the PREVIOUSLY DISABLED vehicle |
| 11. Disconnect the RED (+) booster cable from the jump start terminal of the DONOR vehicle |
| 12. Request stolen vehicle tracking removed from Service Mode , (if equipped). |
VEHICLE JUMP (EMERGENCY) STARTING - USING SLAVE BATTERY/STARTING AID DESCRIPTION
| VEHICLE STATUS | PROCEDURE |
|---|---|
| Vehicles without Telematics | 1 |
| Vehicles with Telematics | 2 |
BATTERY DESCRIPTION - PROCEDURE 1
| COMPLETE THE FOLLOWING OPERATIONS IN THE SEQUENCE GIVEN |
|---|
| 1. Connect the end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the vehicle. |
| 2. Connect the end of the BLACK (-) booster cable to the GROUND (-) jump start terminal of the vehicle. |
| 3. Start the engine of the vehicle and allow it to idle. |
| 4. Disconnect the BLACK (-) booster cable from the GROUND (-) jump start terminal of the vehicle. |
| 5. Disconnect the RED (+) booster cable from the POSITIVE (+) jump start terminal of the vehicle. |
BATTERY DESCRIPTION - PROCEDURE 2
| COMPLETE THE FOLLOWING OPERATIONS IN THE SEQUENCE GIVEN |
|---|
| 1. Make sure the customer has placed stolen vehicle tracking into Service Mode , (if equipped). |
| 2. Connect the end of the RED (+) booster cable to the POSITIVE (+) jump start terminal of the vehicle. |
| 3. Connect the end of the BLACK (-) booster cable to the GROUND (-) jump start terminal of the vehicle. |
| 4. Start the engine of the vehicle and allow it to idle. |
| 5. Disconnect the BLACK (-) booster cable from the GROUND (-) jump start terminal of the vehicle. |
| 6. Disconnect the RED (+) booster cable from the POSITIVE (+) jump start terminal of the vehicle. |
| 7. Request stolen vehicle tracking removed from Service Mode , (if equipped). |
