General Equipment
| EQUIPMENT NAME |
|---|
| Transmission jack |
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
- Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
- Remove the hood.
Refer to: HOOD
- Remove the secondary bulkhead center panel.
Refer to: SECONDARY BULKHEAD CENTER PANEL - V8 S/C 5.0L PETROL
- Remove the viscous cooling fan.
Refer to: VISCOUS COOLING FAN

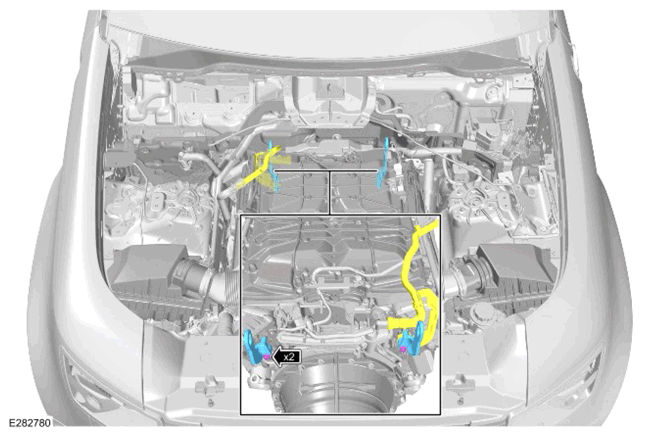

- Remove the 2 bolts.
- Remove the 2 engine lifting brackets.

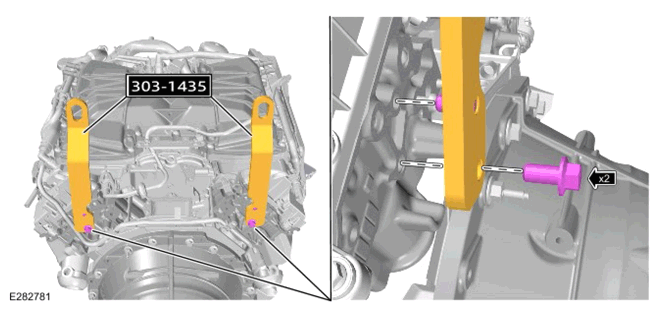

- Install the 2 engine lifting eyes.
Special Tool(s): 303-1435
- Install and tighten the 2 bolts.
Torque
Stage 1: 25 Nm
Stage 2: 90°
- Install the 2 engine lifting eyes.

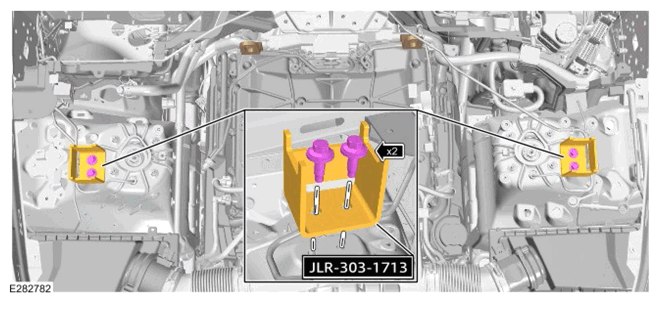

- Install the 2 special tools.
Special Tool(s): JLR-303-1713
- Install and tighten the 4 bolts.
Torque : 20 Nm
- Install the 2 special tools.

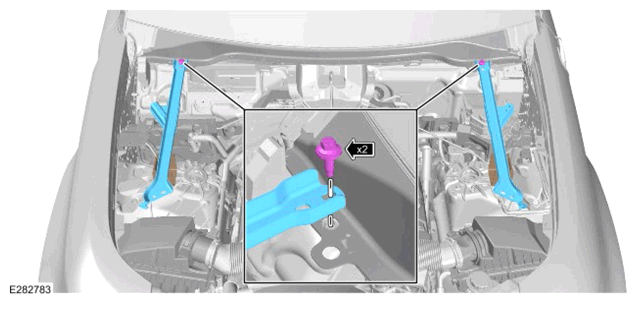

- Install the 2 engine compartment braces as illustrated.
- Install and tighten the 2 bolts.
Torque : 20 Nm

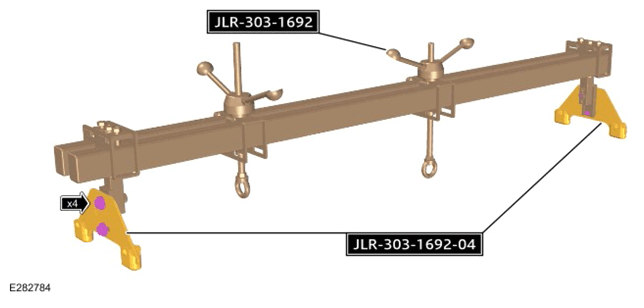

Assemble the engine support beam and the adapter.
Special Tool(s): JLR-303-1692 , JLR-303-1692-04
-
CAUTION: This step requires the aid of another technician.

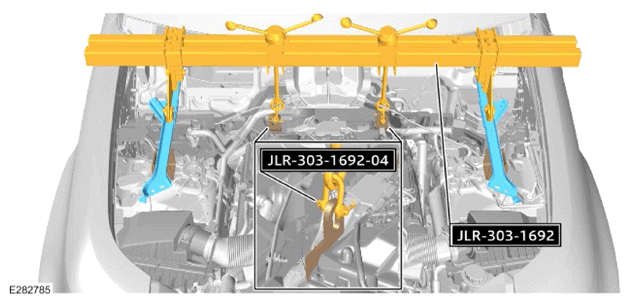

- Install the engine support beam and the engine support adapter as illustrated.
Special Tool(s): JLR-303-1692
- Use the special tools to attach the engine lifting eyes to the engine support beam.
Special Tool(s): JLR-303-1692-04
- Install the engine support beam and the engine support adapter as illustrated.

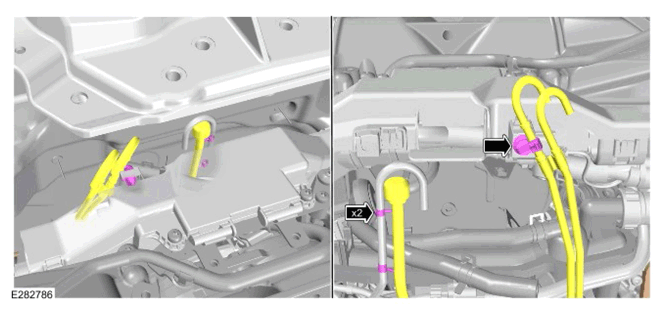

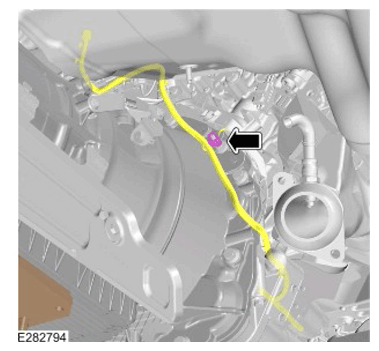

Release the 3 breather pipes.
- Remove the rear driveshaft.
Refer to: REAR DRIVESHAFT
- Remove the front driveshaft.
Refer to: FRONT DRIVESHAFT

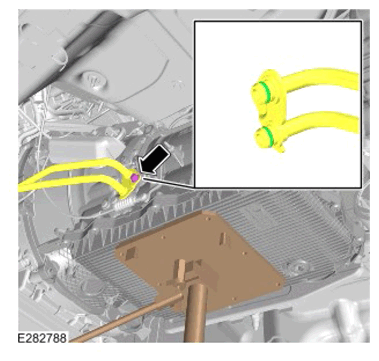

- Remove the bolt.
- Disconnect the 2 transmission fluid cooler pipes.
- Remove and discard the 2 O-ring seals.
- Tie aside the transmission fluid cooler pipes.
- Remove the 2 bolts.

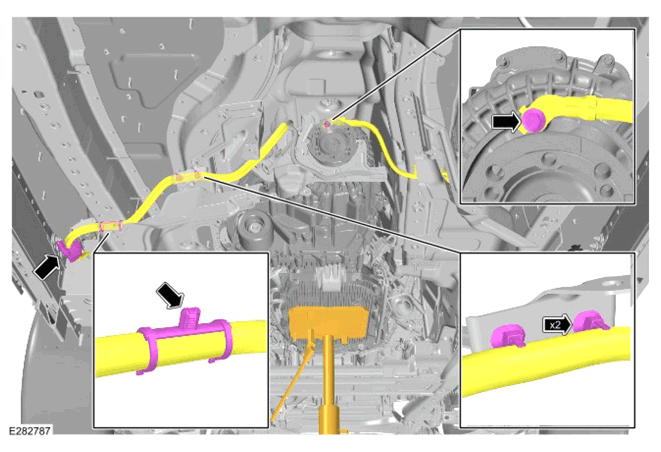

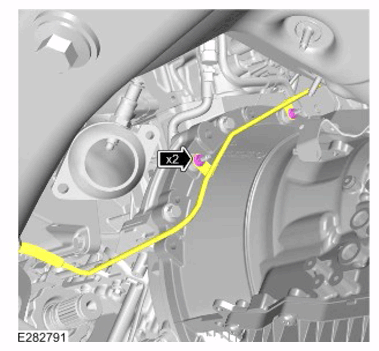

- Release the 2 Emergency Park Release (EPR) cable clips.
- Tie aside the EPR cable.

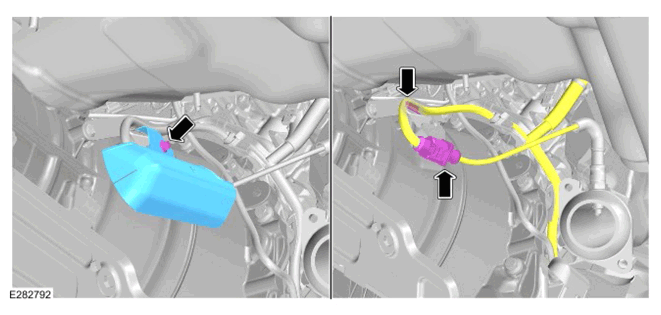

- Remove the bolt.
- Remove the heatshield.
- Disconnect the electrical connector from the left Heated Oxygen Sensor (HO2S).
- Release the clip.

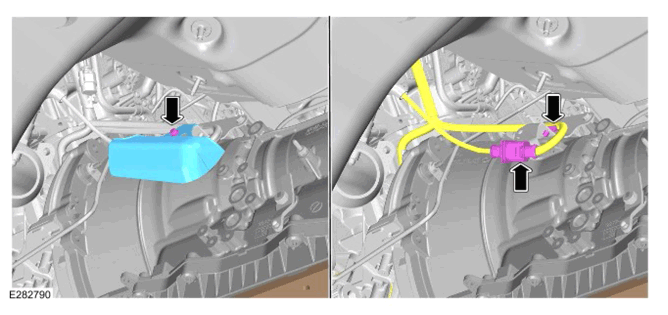

- Remove the bolt.
- Remove the heatshield.
- Disconnect the electrical connector from the right HO2S .
- Release the clip.

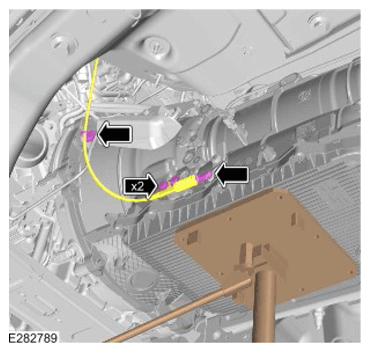

- Disconnect the electrical connector.
- Release the 3 clips.
- Remove the ground cable bolt.

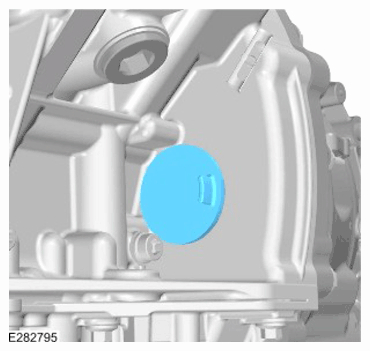

Remove the access cover.

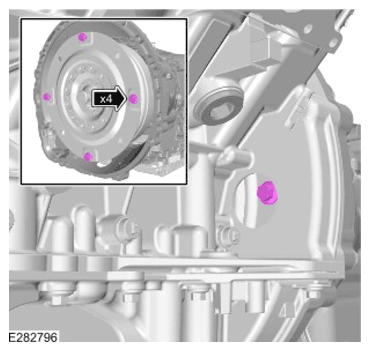

Remove and discard the 4 drive plate bolts.

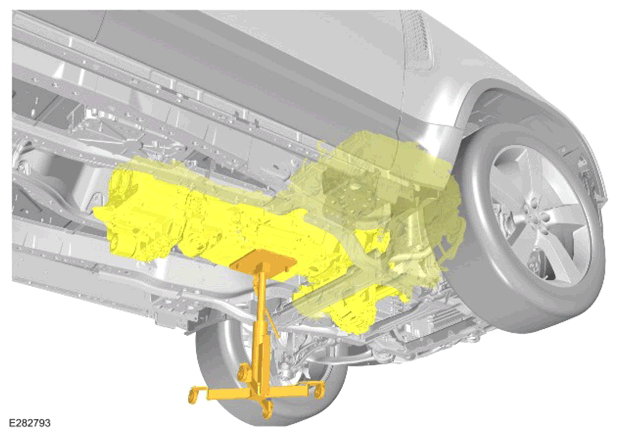

Use the transmission jack to lower the powertrain assembly.
General Equipment: Transmission jack

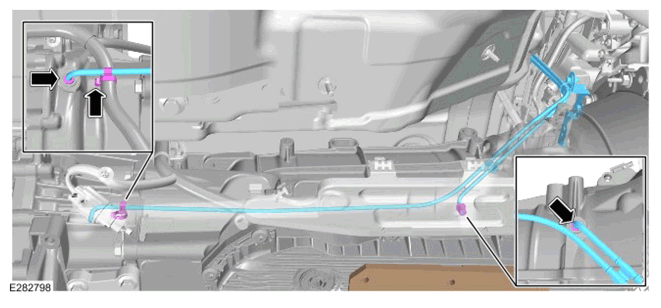

- Remove the 2 nuts.
- Release the differential breather pipe.
- Tie aside the differential breather pipe.
- Release the clip.
- Release the starter motor breather pipe.
- Tie aside the starter motor breather pipe.

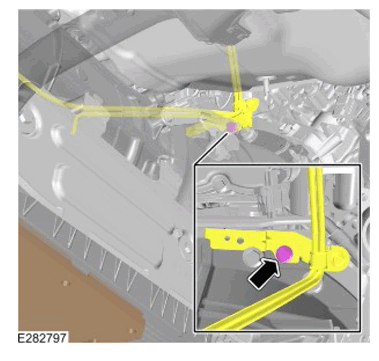

Remove the breather pipe assembly bolt.
- Release the clip.
- Remove the breather pipe assembly.
-
NOTE: Note the orientation of the bolts prior to removal.

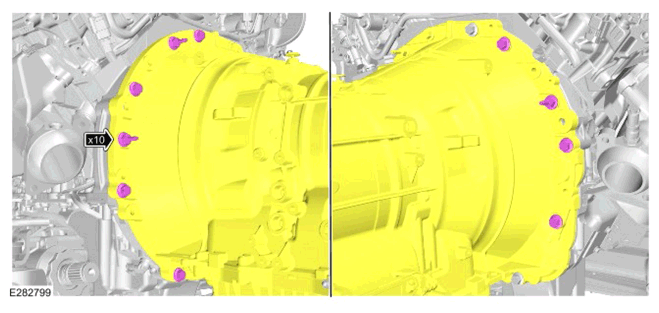

Remove the 10 bolts.
-
WARNING: This step requires the aid of another technician.CAUTION: Care must be taken to avoid damaging the surrounding components.NOTE:
- Note the orientation of the bolts prior to removal.
- Secure the torque converter to the transmission using suitable cable ties.

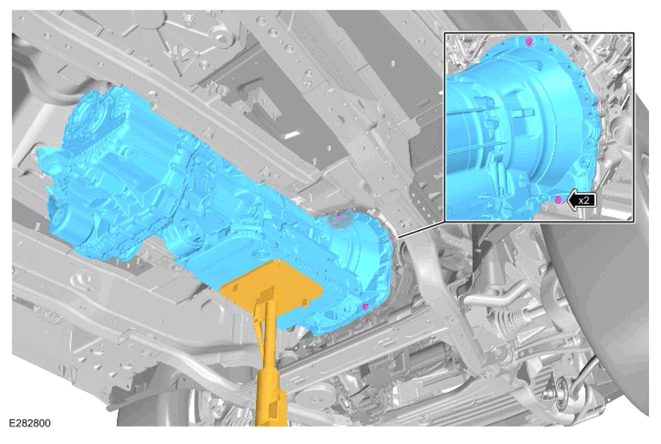

- Remove the 2 bolts.
- Remove the transmission.
-
NOTE: Do not disassemble further if the component is removed for access only.

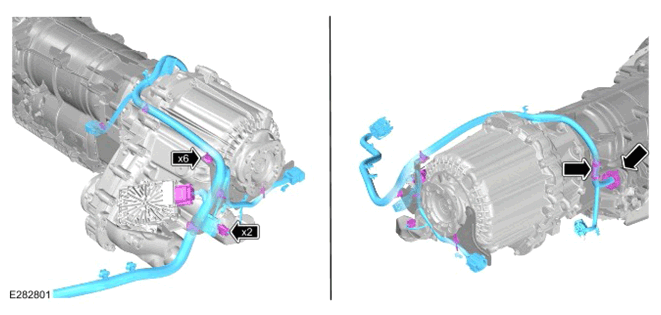

- Disconnect the 3 electrical connectors.
- Release the 7 clips.
- Remove the transmission wiring harness.

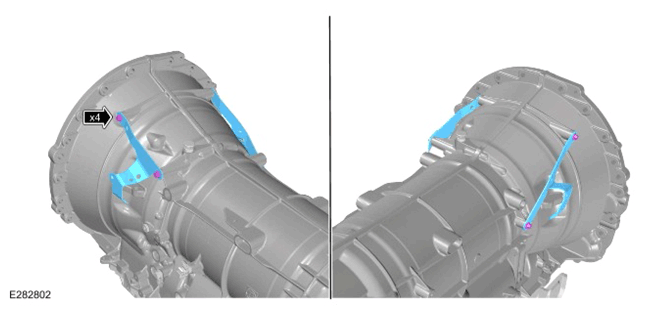

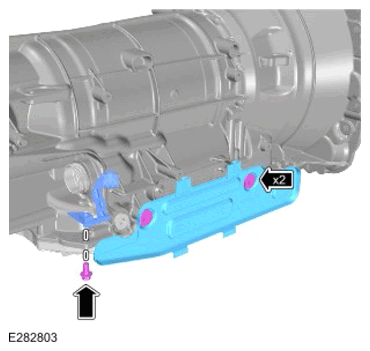

- Remove the 4 bolts.
- Remove the 2 heatshield brackets.
- Remove the 3 bolts.
- Remove the wiring harness bracket.
- Remove the heatshield.

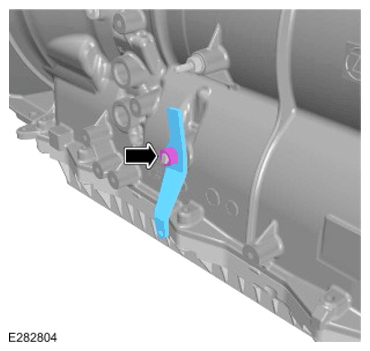

- Remove the bolt.
- Remove the EPR lever.
-
CAUTION: This step requires the aid of another technician.
- Use the special tool to remove the 8 bolts.
Special Tool(s): 303-1069
- Remove the wiring harness bracket.

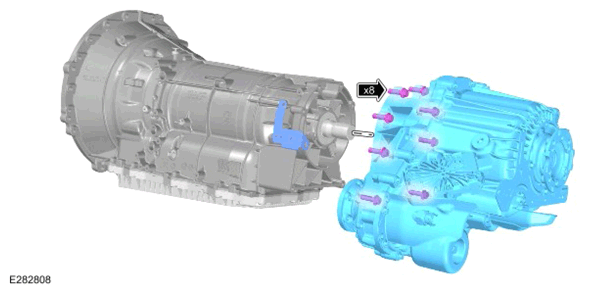

- Remove the transfer case.
- Use the special tool to remove the 8 bolts.
