Output Shaft Seal - INGENIUM I4 2.0L Petrol - PHEV (G2812099): Removal

WARNING:

If the vehicle has been powered down, do not power up the vehicle until all the bonding points have been tested.
It is the responsibility of the Electric Vehicle Senior Authorised Person (EVSAP) to make sure they comply with any local legislation for work on High Voltage (HV) systems.
The approved Personal Protective Equipment (PPE) must be worn where indicated within this procedure and not removed unless indicated within a step. All items of PPE must be checked for signs of damage before each use, if damaged, replacement PPE must be obtained before doing this procedure.

NOTE:

All Permit To Work (PTW) documents must be kept for a minimum of 5 years.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

WARNING: Jaguar Land Rover (JLR) Electric Vehicle Competent Person (EVCP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the HV system. Only technicians qualified to EVCP level or higher are allowed to do this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle (EV) Safety Rules.

Refer to: DESCRIPTION AND OPERATION .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Down the HV system. Only technicians qualified to Electric Vehicle Authorised Person (EVAP) level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: PHEV POWER DOWN/UP - HANDHELD
Refer to high voltage electrical connector operation and inspection document before disconnecting any high voltage electrical connectors.
Refer to: GENERAL PROCEDURES .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the transfer case.
Refer to: TRANSFER CASE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

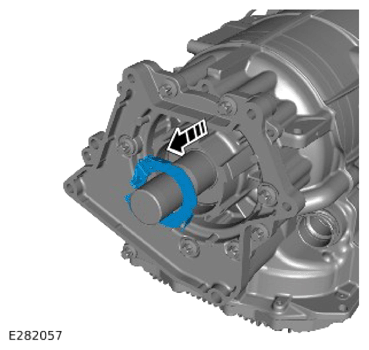

Remove the grounding device.
CAUTION: Care must be taken to avoid damage to the seal running surface.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

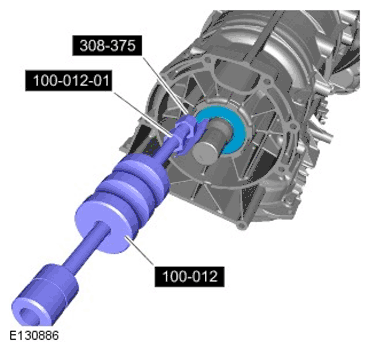

Use the special tools to remove the seal.

Special Tool(s): 100-012 , 100-012-01 , 308-375
