Output Shaft Seal - INGENIUM I4 2.0L Petrol - PHEV (G2812099): Installation

CAUTION:
- Oil seals must be installed dry.
- Make sure that the mating faces are clean and free of foreign material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

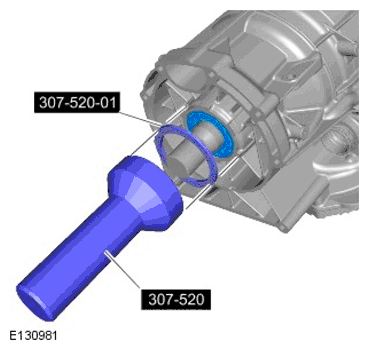

Use the special tools to install a new seal.

Special Tool(s): 307-520 , JLR-307-520-01
CAUTION: Make sure the surrounding area is clean and free of foreign material.

Install the grounding device.
Install the transfer case.
Refer to: TRANSFER CASE
Check the transmission fluid level.
Refer to: TRANSMISSION FLUID LEVEL CHECK
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Up the HV system. Only technicians qualified to EVAP level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle Safety Rules.

Refer to: PHEV POWER DOWN/UP - HANDHELD
