Special Tool(S): Part(S)

STEP	PART NAME	QUANTITY
Step 22	Torque converter bolts	6
Step 30	Transmission fluid cooler tubes to transmission O-ring seals	2
Step 3	Transmission gasket	1

CAUTION: New transmission assemblies are supplied pre-filled with transmission fluid.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
Steps 2 to 16 are only required if the components were previously removed.

NOTE: This step is only required if a new transmission is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

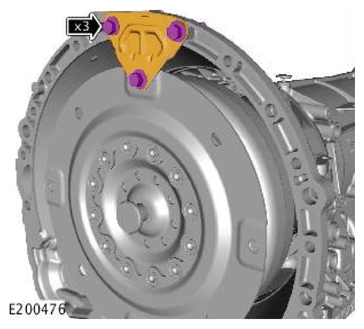

Remove the 3 bolts and the torque converter transportation brace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

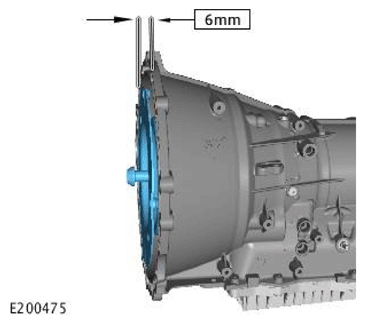

Make sure the torque converter is installed with the measurements as show.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

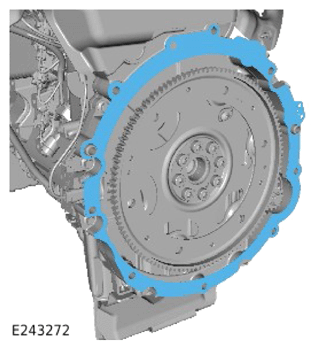

Install a new transmission gasket.

Renew Part: Transmission gasket Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

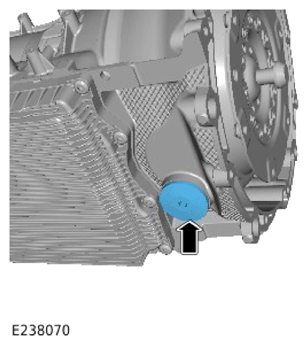

Install and tighten the transmission plug.

Torque : 24 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

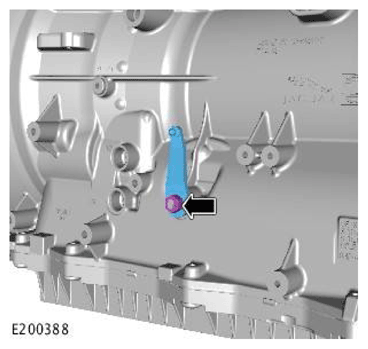

- Install the Emergency Park Release (EPR) lever.
- Install and tighten the nut.
  Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

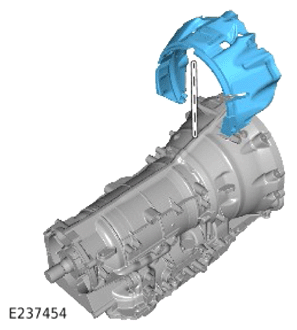

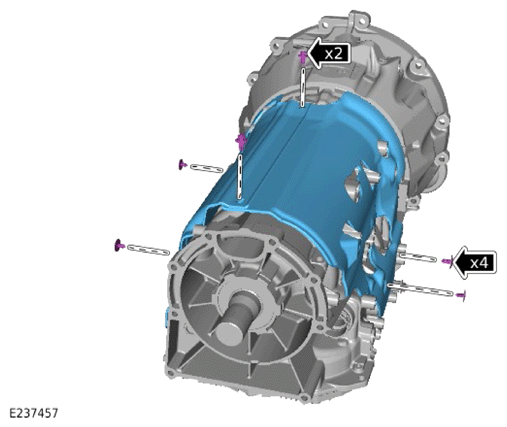

Install the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the 2 NVH components.
- Install the 6 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

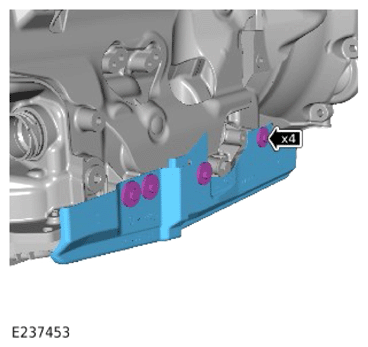

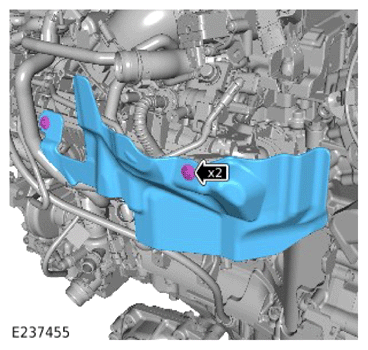

- Install the 2 heatshields.
- Install and tighten the 4 bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

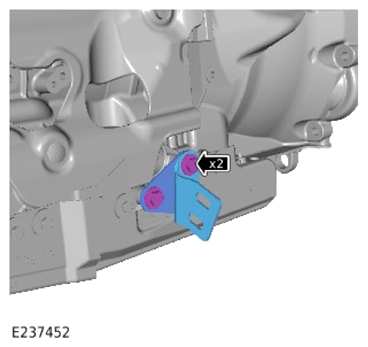

- Install the 2 exhaust brackets.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

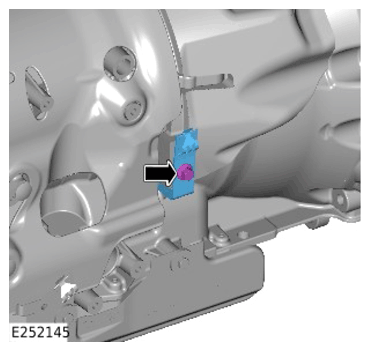

- Install the Heated Oxygen Sensor Heated Oxygen Sensor (HO2S) bracket.
- Install and tighten the bolt.
  Torque : 24 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the Gasoline Particulate Filter (GPF) pressure sensor.
- Install and tighten the 2 bolts.
  Torque : 22.5 Nm
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

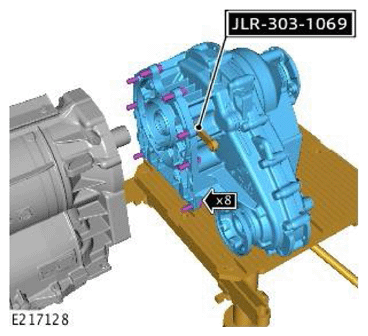

- Install the transfer case.
- Use the special tool to install and tighten the 8 bolts.
  Special Tool(s): 303-1069

  Torque : 50 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

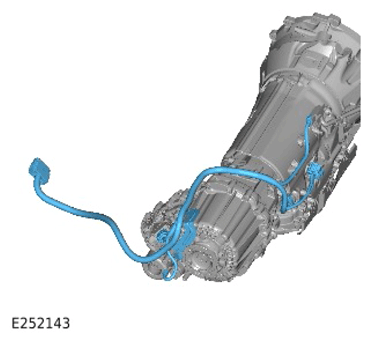

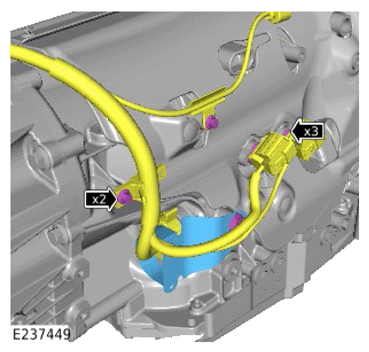

Install the transmission wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install and tighten the 2 bolts.
  Torque : 25 Nm
- Connect the 2 electrical connectors.
- Secure the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

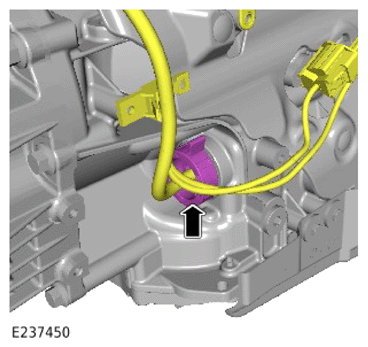

Connect the transmission electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

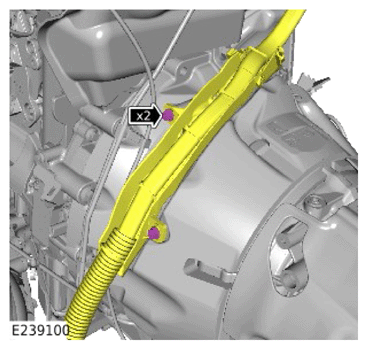

- Install the heatshield
- Install the 3 wiring harness clips.
- Install and tighten the 2 wiring harness bolts.
  Torque : 10 Nm
CAUTION: To prevent water ingress and subsequent transmission damage, make sure that the breather is fully installed into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

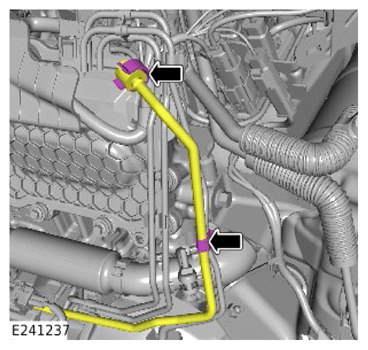

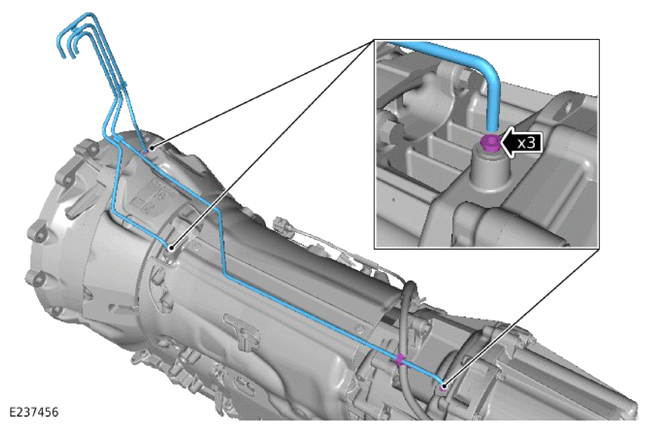

- Install the 3 breather pipes.
- Connect the 3 breather pipes.
WARNING: This step requires the aid of another technician.
CAUTION:
- Care must be taken to avoid damaging the surrounding components.
- Make sure that the torque converter remains in the transmission.
NOTE: Remove and discard the tie straps securing the torque converter.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

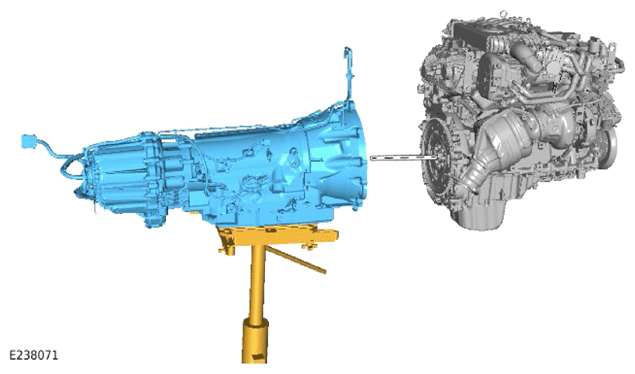

Install the transmission assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

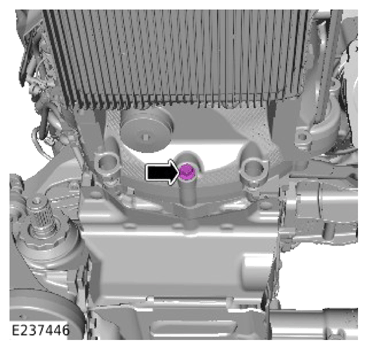

Install and tighten the lower bolt.

Torque : 40 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

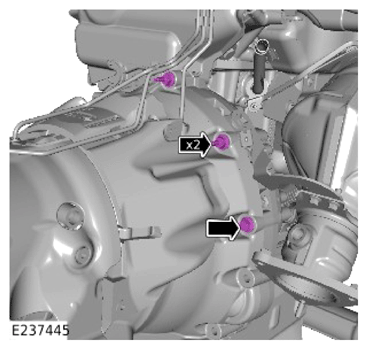

Install and tighten the 3 right side transmission bolts.

Torque : 40 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

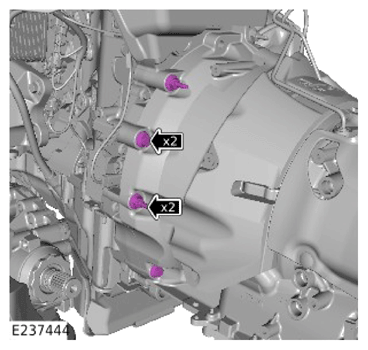

Install and tighten the 4 left side transmission to engine bolts.

Torque : 40 Nm

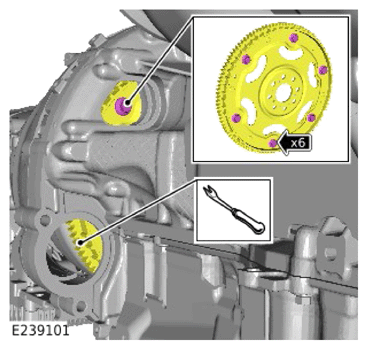

CAUTION: Only rotate the crankshaft clockwise.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 6 new bolts.

Renew Part: Torque converter bolts Quantity: 6 .

Torque : 70 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

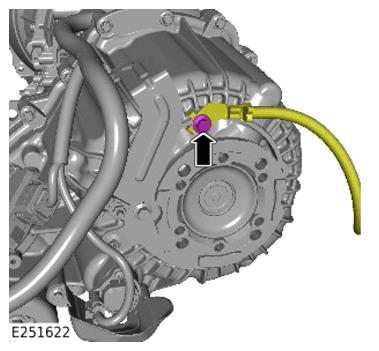

- Install the ground cable.
- Install and tighten the bolt.
  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

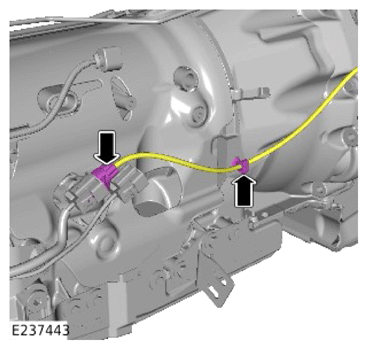

- Connect the electrical connector.
- Install the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 2 nuts.

Torque : 22 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

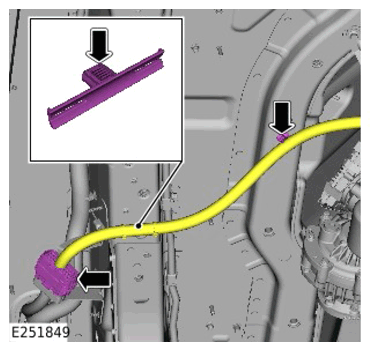

Install the cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

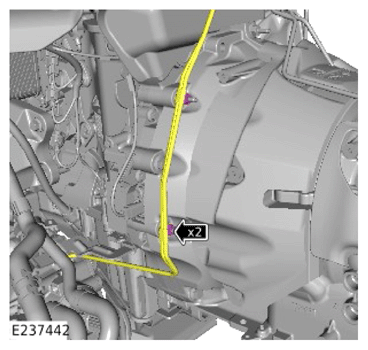

Install the 2 breather pipes to the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

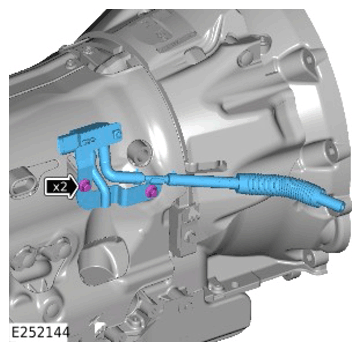

- Install the Mild Hybrid Electric Vehicle (MHEV) battery cable.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

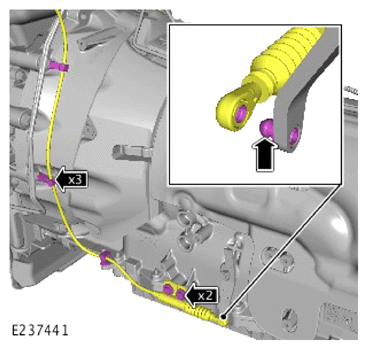

- Install the EPR cable to the transmission.
- Install the EPR cable to the 3 clips.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

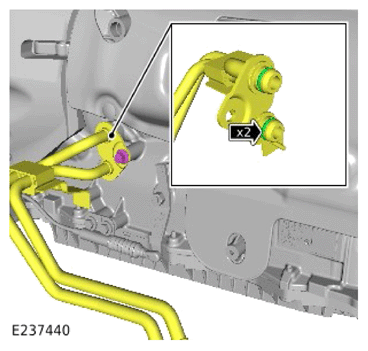

- Install the 2 new O-ring seals.
  Renew Part: Transmission fluid cooler tubes to transmission O-ring seals Quantity: 2 .
- Install the transmission fluid cooler pipes.
- Install and tighten the bolt.
  Torque : 22.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the electrical connector.
- Install the wiring harness clip.
Install the front driveshaft.
Refer to: FRONT DRIVESHAFT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

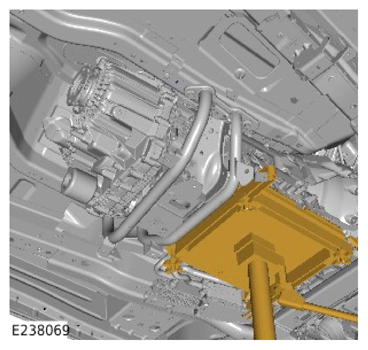

Remove the transmission jack.

General Equipment: Transmission jack
Install the starter motor.
Refer to: the appropriate service information
Install the rear driveshaft.
Refer to: REAR DRIVESHAFT
Install the catalytic converter.
Refer to: the appropriate service information
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

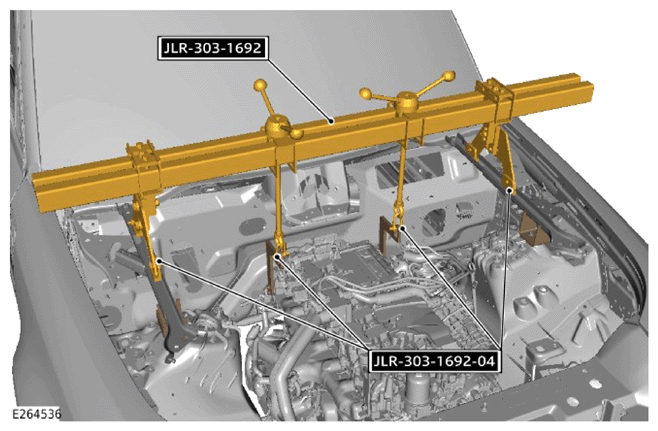

- Remove the engine support beam and the engine support adapter.
  Install the Special Tool(s): JLR-303-1692 , JLR-303-1692-04
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

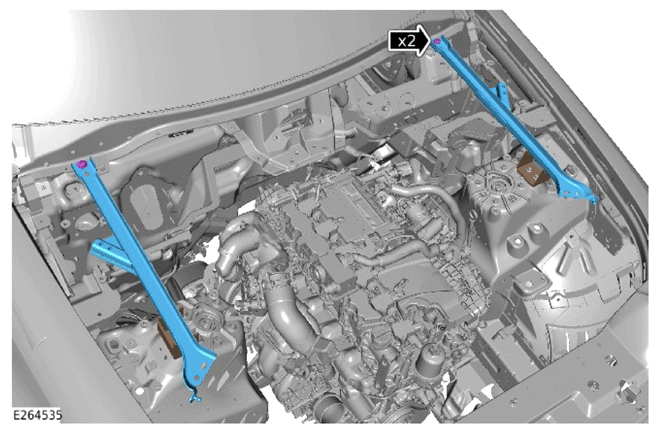

- Remove the 2 bolts.
- Remove the 2 engine compartment braces.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the special tools.

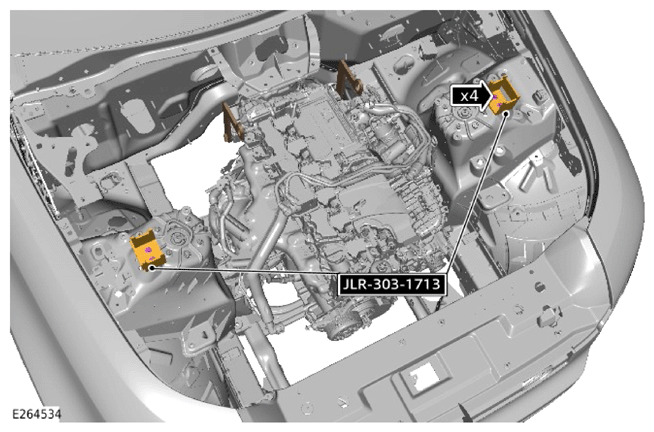

  Install the Special Tool(s): JLR-303-1713
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

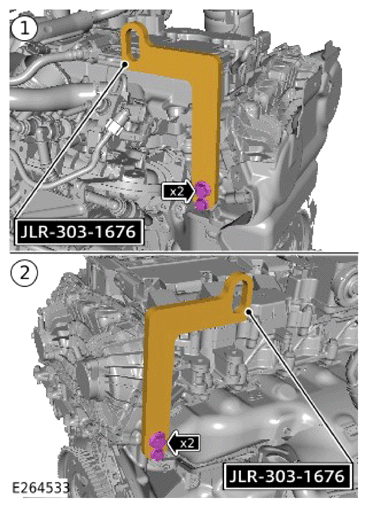

- Remove the 4 bolts.
- Remove the special tools.
  Install the Special Tool(s): JLR-303-1676
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

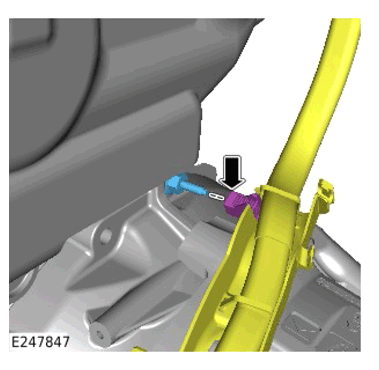

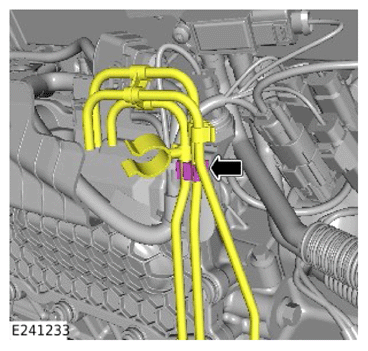

Install the breather pipe clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

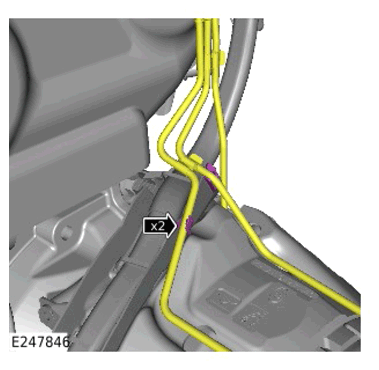

Install the 2 breather pipes to the 2 clips.
Install the charge air cooler.
Refer to: the appropriate service information
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the heatshield.
- Install the 2 clips.
Install the secondary bulkhead center panel.
Refer to: SECONDARY BULKHEAD CENTER PANEL - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL
Install the hood.
Refer to: HOOD
Install the engine cover.
Refer to: ENGINE COVER - INGENIUM I6 3.0L DIESEL
Connect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
