Special Tool(S): Part(S)

STEP	PART NAME	QUANTITY
Step 15	Torque converter bolt(s)	4
Step 21	Transmission fluid cooler tubes O-ring seal(s)	2

CAUTION:

New transmission assemblies are supplied pre-filled with transmission fluid.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
Steps 1 to 10 are only required if the components were previously removed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

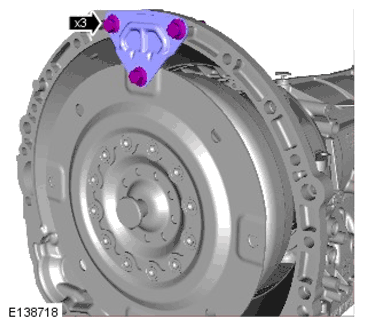

Remove the torque converter retainer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

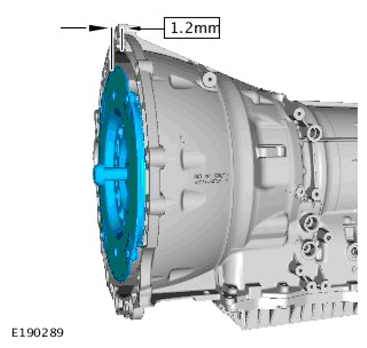

Make sure that the torque converter is fully engaged to the transmission.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

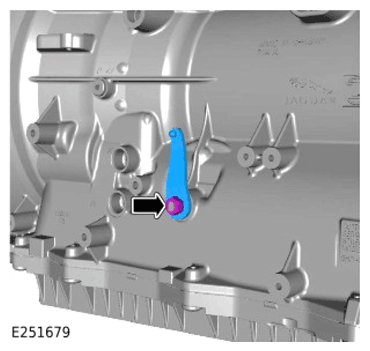

- Install the Emergency Park Release (EPR) lever.
- Install the nut.
  Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

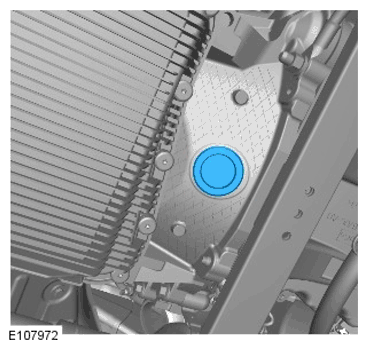

Install the transmission cap.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

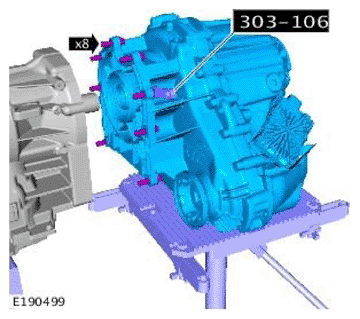

- Install the transfer case.
- Use the special tool to install and tighten the 8 bolts.
  Special Tool(s): 303-1069

  Torque : 55 Nm
- Remove the transmission jack.
  General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

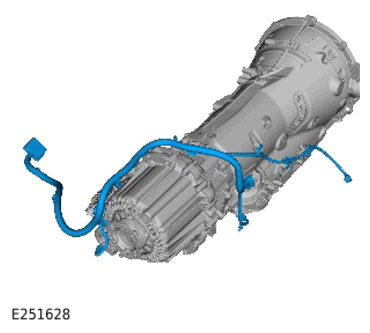

Install the transmission wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

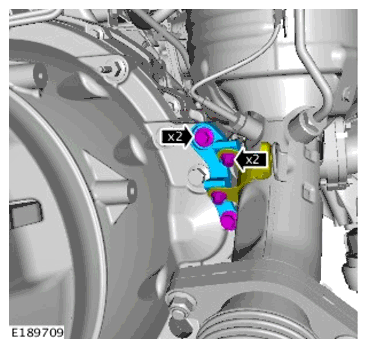

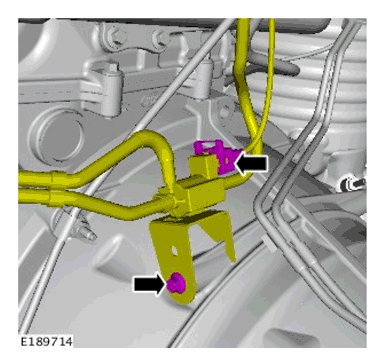

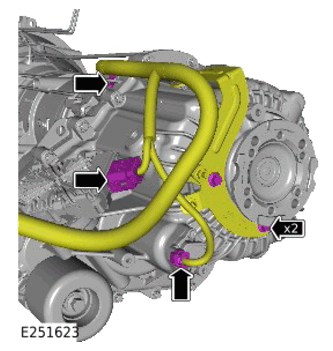

- Install and tighten the 2 wiring harness bracket bolts.
  Torque : 25 Nm
- Connect the 2 electrical connectors.
- Install the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

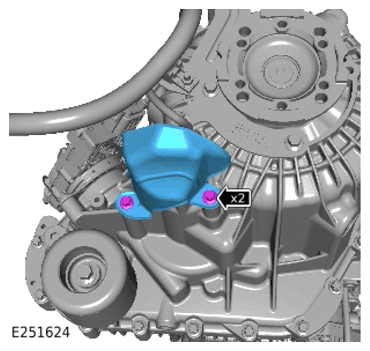

- Install the heatshield.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

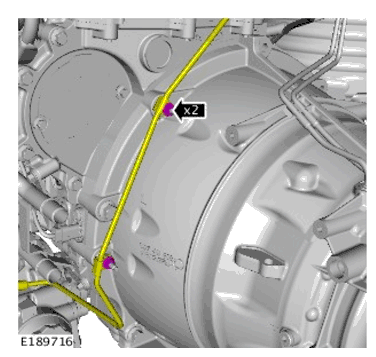

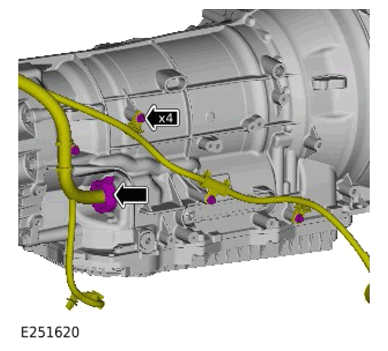

- Install and tighten the 4 wiring harness bolts.
  Torque : 10 Nm
- Connect the transmission electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

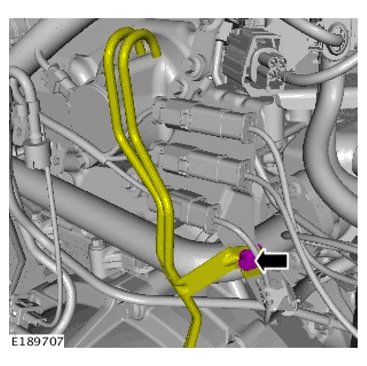

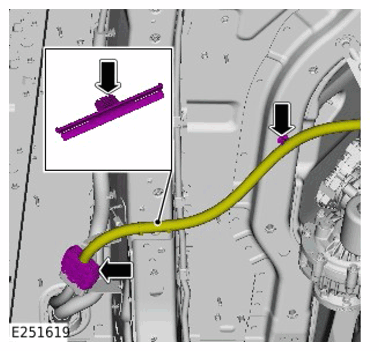

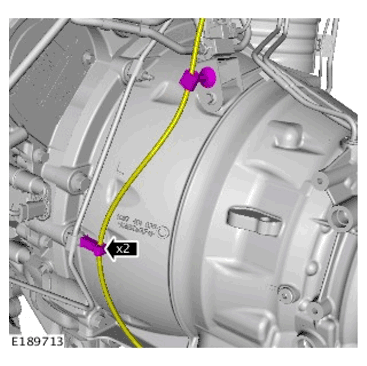

- Install the 2 breather pipes.
- Install the wiring harness clip.
CAUTION: Make sure that the torque converter remains in the transmission.

NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

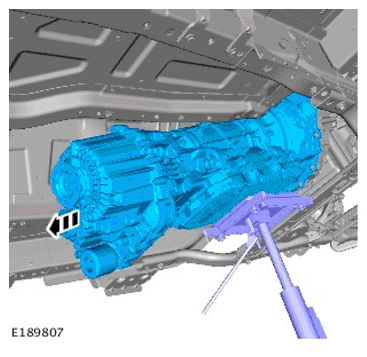

Install the transmission.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

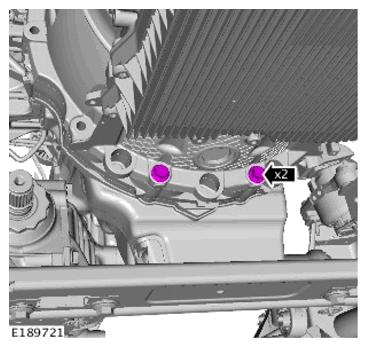

Install and tighten the 2 lower transmission to engine bolts.

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 4 right side transmission to engine bolts.

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 4 left side transmission to engine bolts.

Torque : 48 Nm
CAUTION: Only rotate the camshaft clockwise.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

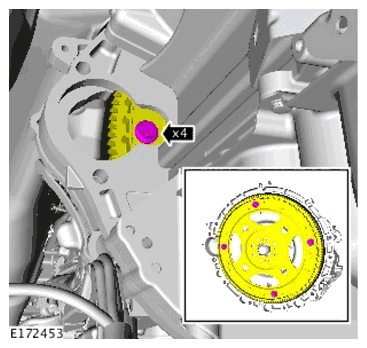

Install and tighten the 4 new torque converter bolts.

Renew Part: Torque converter bolt(s) Quantity: 4 .

Torque : 65 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the breather pipe in the correct location.
- Install and tighten the 2 nuts.
  Torque : 22 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the solenoid assembly to the correct location.
- Install and hand tighten the bolt.
- Connect the solenoid electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

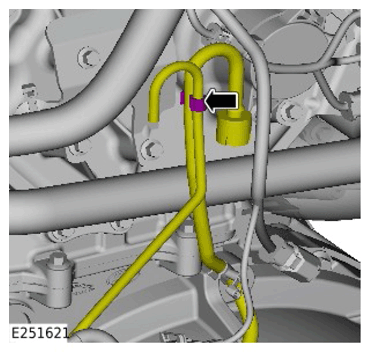

Install the transmission breather pipe clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the 2 EPR cable clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

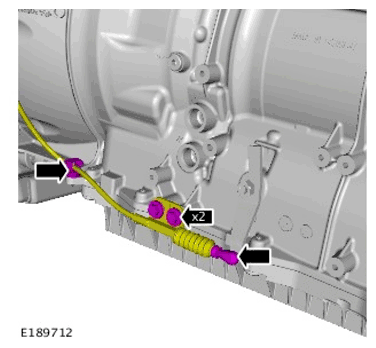

- Reposition the EPR cable in the correct location.
- Install and tighten the 2 bolts.
  Torque : 11 Nm
- Install the EPR cable to the transmission.
- Install the EPR clip.
CAUTION: Be prepared to collect escaping fluids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

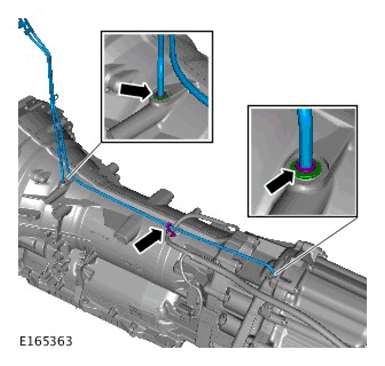

- Install the 2 new O-ring seals.
  Renew Part: Transmission fluid cooler tubes O-ring seal(s) Quantity: 2 .

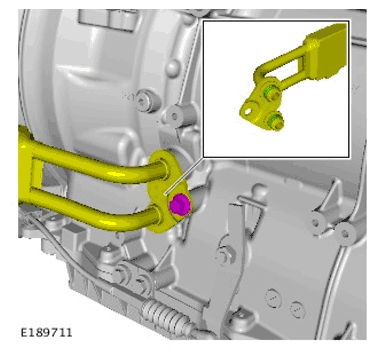

- Install the transmission fluid cooler pipes.
- Install and tighten the bolt.
  Torque : 22 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Connect the transmission to body wiring harness electrcial connector.
- Install the 2 wiring harness clips.
Install the front driveshaft.
Refer to: FRONT DRIVESHAFT
Install the rear driveshaft.
Refer to: REAR DRIVESHAFT
Install the starter motor.
Refer to: the appropriate service information
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

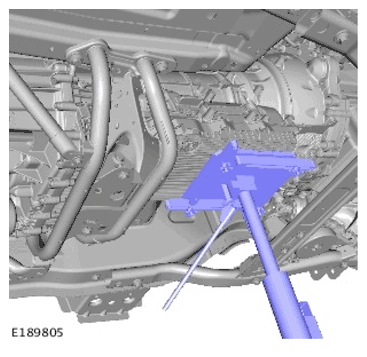

Remove the transmission jack.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

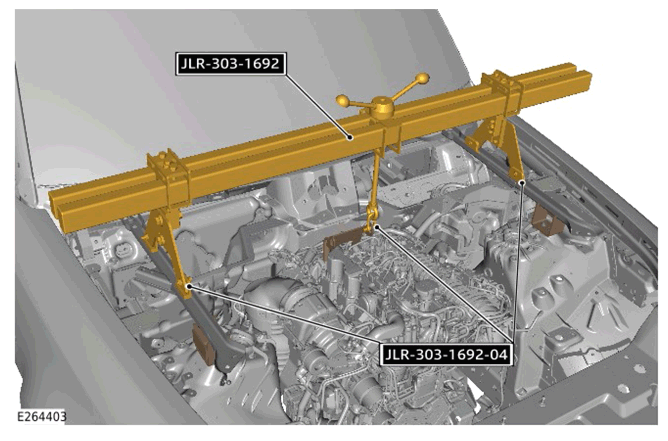

- Remove the engine support beam and the engine support adapter.
  Install the Special Tool(s): JLR-303-1692 , JLR-303-1692-04
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.

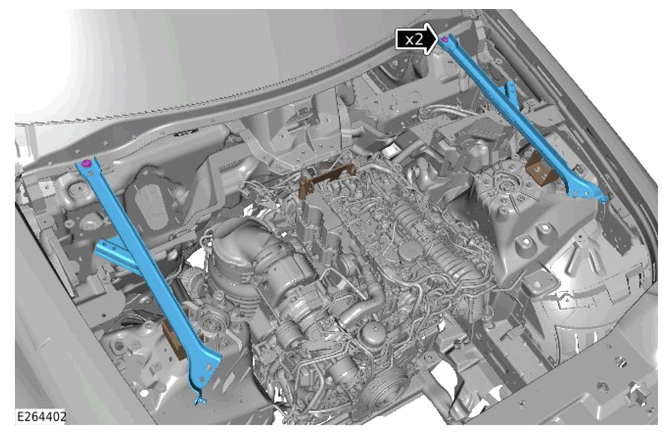

- Remove the 2 engine compartment braces.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the special tools.

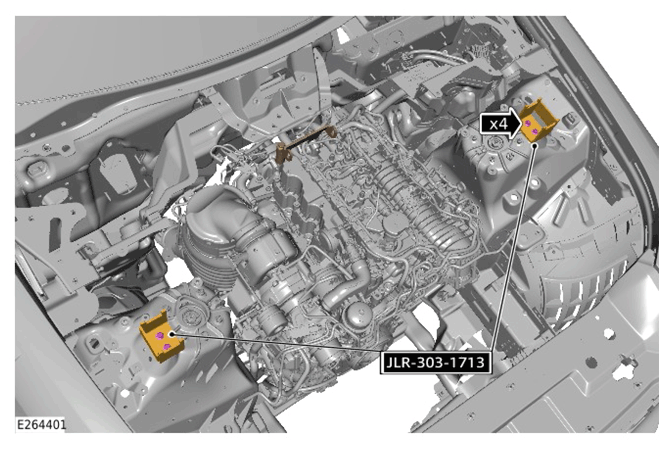

  Install the Special Tool(s): JLR-303-1713
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the special tool.

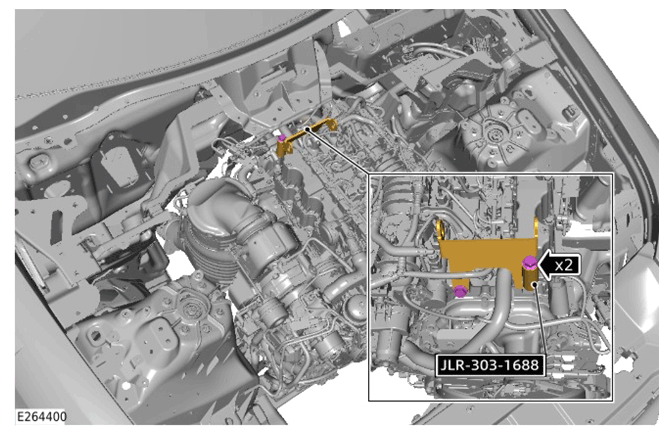

  Remove the Special Tool(s): JLR-303-1688
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

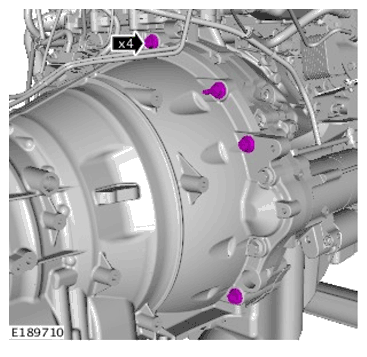

- Install the bracket.

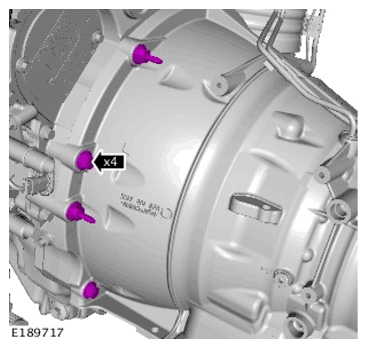

- Install and tighten the 4 catalytic converter to transmission bolts.
  Torque

  M8: 30 Nm

  M6: 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

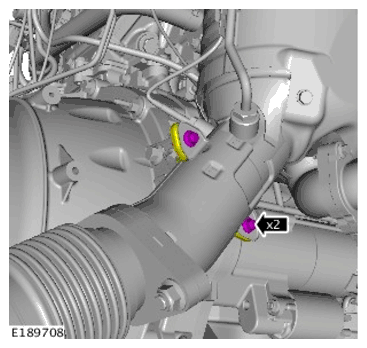

Install and tighten the 2 catalytic converter bolts.

Torque : 26 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the breather pipe bolt.

Torque : 10 Nm
Install the secondary bulkhead panel.
Refer to: SECONDARY BULKHEAD CENTER PANEL - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL
Install the hood.
Refer to: HOOD
Connect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
