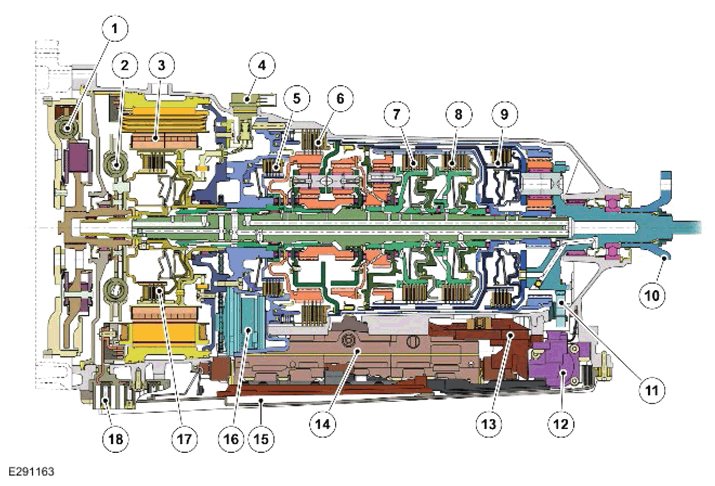

Transmission Sectional View
| ITEM | DESCRIPTION |
|---|---|
| 1 | Torsion damper |
| 2 | Torsion damper |
| 3 | Electric motor |
| 4 | Rotation position sensor |
| 5 | Brake A |
| 6 | Integrated staring element |
| 7 | Clutch E |
| 8 | Clutch C |
| 9 | Clutch D |
| 10 | Output flange |
| 11 | Parking brake |
| 12 | Electric oil pump |
| 13 | Electric module |
| 14 | Mechatronic valve block |
| 15 | Oil pan |
| 16 | ATF pump |
| 17 | Motor interrupting clutch |
| 18 | High Voltage (HV) connector |
