Torque Converter

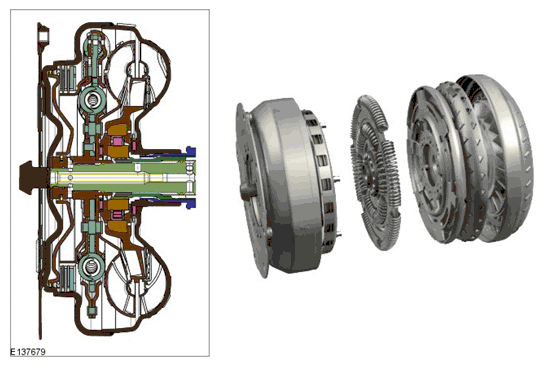

A torsional damper torque converter is used on 8HP76 transmissions.
The torsional damper enables a more direct engine connection for highly efficient power transmission when starting and shifting. The inner spring set is connected directly to the transmission, the outer spring set responds to torque from the engine through the lock-up clutch. When the lock-up clutch is applied, the hydro-dynamic circuit is by-passed and torque is transferred directly to the transmission input shaft. In comparison to conventional torque converters, the torsional damper applies the lock-up clutch earlier. This improves driving comfort at low engine speeds and increases fuel efficiency by enabling the engine to be operated at lower Revolutions Per Minute (RPM) levels.
When the converter lock-up clutch is not applied, torque is transferred hydro-dynamically. Power from the engine is transmitted through the pump and turbine to the transmission input shaft. When the converter lock-up clutch is applied, the hydro-dynamic circuit is by-passed, torque is transferred directly through the lock-up clutch and the tandem spring sets. The turbine inertia is coupled between the 2 spring sets which improves disengagement, helps reduce wear on the transmission and improve noise insulation.
The torque converter is the coupling element between the engine and the transmission and is located in the torque converter housing, on the engine side of the transmission. The driven power from the engine crankshaft is transmitted hydraulically and mechanically through the torque converter to the transmission. The torque converter is connected to the engine by a drive plate attached to the rear of the crankshaft.
