Component Location - 1 Of 2 - Automatic Transmission

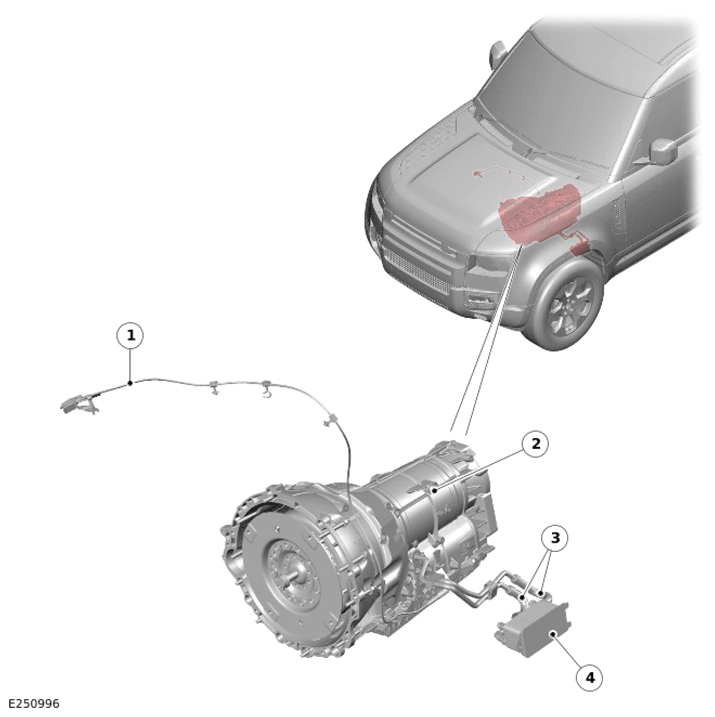

G15308508Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Emergency Park Release (EPR) lever
2 Automatic transmission
3 Automatic Transmission Fluid (ATF) cooler pipes
4 ATF  cooler
