Automatic Transmission Fluid Pump
The ATF pump is an integral part of the transmission. The ATF pump is used to supply hydraulic pressure for the operation of the control valves and clutches. The ATF pump also passes the ATF through the transmission cooler and the transmission to lubricate the gears and shafts.
The ZF 8HP70 ATF pump is a double stroke, vane type pump and is located below the transmission input shaft. The pump is driven by a chain drive from a sprocket located on the torque converter. The pump has a delivery rate of 50 cm3 per revolution. The drive sprocket is driven at engine speed through a splined connection in the torque converter shell.

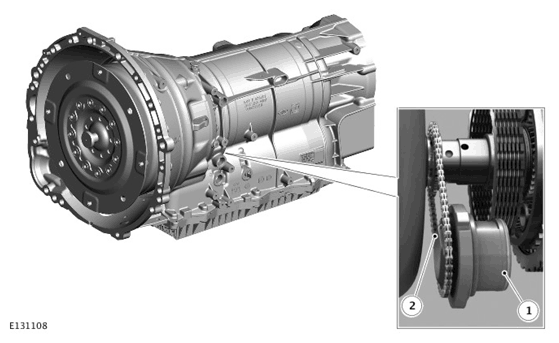

Automatic Transmission Fluid Pump Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | Vane pump |
| 2 | Chain drive from torque converter cover |

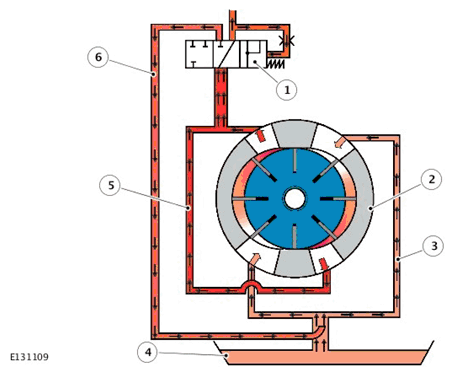

Automatic Transmission Fluid Pump Schematic Diagram
| ITEM | DESCRIPTION |
|---|---|
| 1 | System pressure valve |
| 2 | ATF pump |
| 3 | Intake pipe |
| 4 | Oil pan |
| 5 | Pressure pipe |
| 6 | Recycling of redundant fluid |
The ATF pump comprises the following components:
- A sprocket
- A rear cover with bearing
- A front cover with bearing
- A cylinder
- A rotor shaft and a rotor with vanes.
A pressure relief valve is equipped in the pressure outlet gallery from the pump, but is not an integral part of the pump itself.
A sprocket is located around the transmission input shaft. Splines on the torque converter nose and the sprocket make a positive drive sure. A simplex chain transmits the rotation of the torque converter cover into rotation of the pump rotor shaft through a second sprocket equipped to the rotor shaft. The gearing of the 2 sprockets rotates the ATF pump rotor shaft at a speed slightly higher than the RPM of the torque converter cover. The torque converter cover is directly connected to the engine crank.
The ATF pump contains 7 vanes which are attached to the rotor and rotate within the camshaft shaped cylinder. As the vanes rotate, the eccentricity of the central hole in the cylinder causes the space between the vanes to increase. This causes a depression between the vanes and fluid is drawn into the space between the vanes through a suction port connected to the fluid pan. The fluid passes through the fluid pan filter before it is drawn into the ATF pump.
As the rotor shaft rotates further, the inlet port is closed by the vanes which have drawn in fluid, trapping the fluid in the space between the vanes. The eccentric hole in the cylinder causes the space between the vanes to decrease and consequentially compresses and pressurizes the fluid trapped between them.
Further rotation of the rotor shaft moves the vanes towards the outlet port. As the vanes pass the outlet port the pressurized fluid passes from the space between the vanes into the pressure gallery to the pressure relief valve.
As the ATF pump is a double stroke vane pump, this sequence is repeated twice per revolution of the rotor shaft.
The pressure relief valve controls the pressure and flow of ATF delivered to the transmission valve block, torque converter and other components. Pressure is controlled by a relief valve which limits the maximum system pressure to 32 bar (464 psi). The pressure control maintains a constant pressure of ATF irrespective of torque converter input shaft rotational speed. A metering orifice is subject to the pump output pressure. If the pressure in the orifice reaches a predetermined level, a spring loaded ball in the flow control valve is lifted from its seat. The pressurized ATF is allowed to recirculate through the pump.
