Component Location - 1 Of 2 - Automatic Transmission

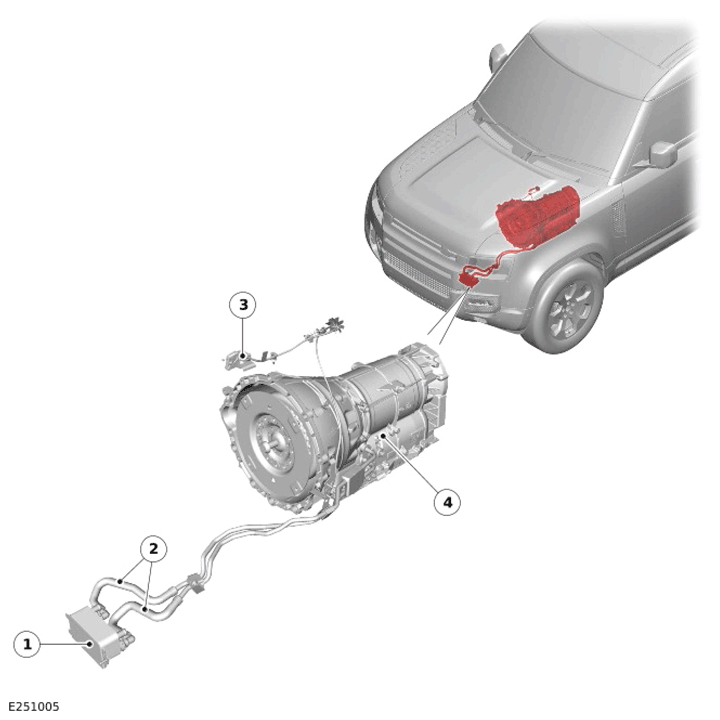

G15308533Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Automatic Transmission Fluid (ATF) cooler
2 ATF  cooler pipes
3 Emergency Park Release (EPR) lever
4 Automatic transmission
