Component Location - 2 Of 2

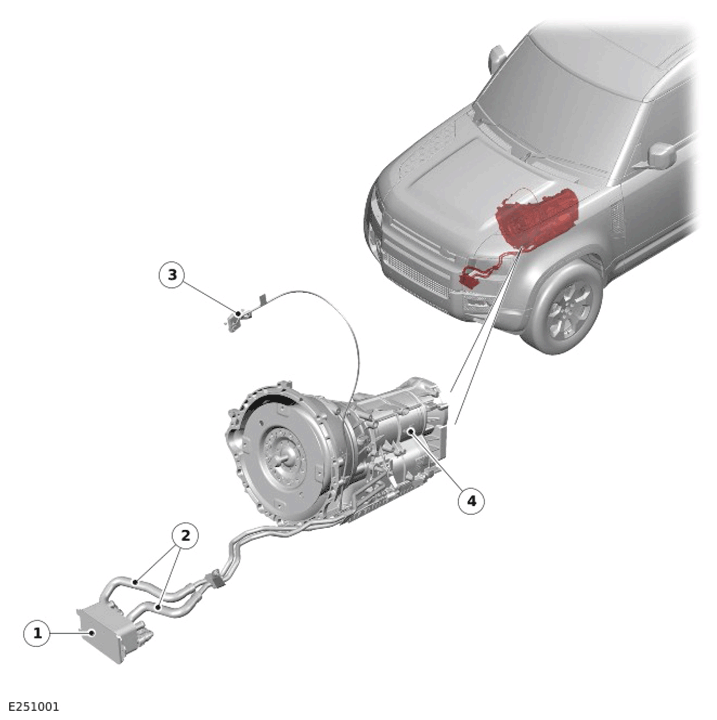

G15308515Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Automatic Transmission Fluid (ATF) cooler
2 Automatic Transmission Fluid (ATF) cooler pipes
3 Emergency Park Release (EPR) lever
4 Automatic transmission
