Engine Cooling - INGENIUM I4 2.0L Petrol/INGENIUM I4 2.0L Petrol - PHEV (G2344342): Specifications
LUBRICANTS, FLUIDS, SEALERS AND ADHESIVES SPECIFICATION
| COOLANT |
SPECIFICATION |
| Coolant |
Texaco Havoline Extended Life Coolant (XLC) or any glycol based engine coolant containing no methanol with only Organic Acid Technology (OAT) corrosion inhibitors |
| Coolant concentration - Will provide frost protection to -40°C (-40°F) |
50% |
| Specific gravity of coolant at 20°C (68°F), to protect against frost down to -40°C (-40°F) |
1.071 |
CAPACITIES SPECIFICATION
| Item |
Capacity (liters/pints/US quarts) |
| Cooling system capacity |
11.3/19.9/11.9 |
| Drain volume |
7/12.3/7.4 |
| Cooling system capacity Plug-in Hybrid Electric Vehicle (PHEV) |
16.8/29.5/17.7 |
| Drain volume PHEV |
7.55/13.3/8 |
GENERAL SPECIFICATIONS
| ITEM |
Specification |
| Cooling fan |
1500 W |
| Cooling System Type |
Pressurized, thermostatically controlled with remote header tank |
| Cooling System Type |
Pressurized with integrated level sensor |
| Expansion Tank |
140 kPa |
| Pressure Cap Rating |
Vertical flow 27 mm core with integrated drain plug |
| Thermostat |
Wax element (heated) |
| Starts To Open |
105 °C (221 °F) |
| Fully Open |
118 °C (244 °F) |

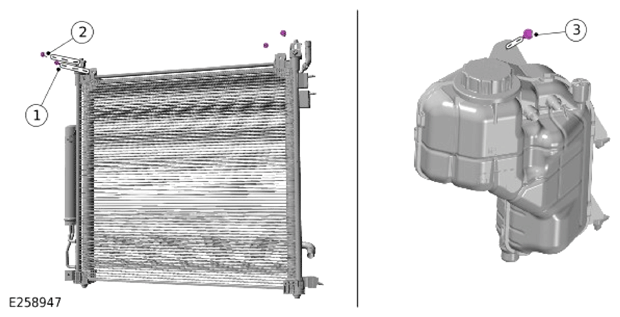

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |
Radiator bolts |
4.5 |
- |
40 |
| 2 |
Charge air radiator bolts |
4.5 |
- |
40 |
| 3 |
Coolant expansion tank bolt |
2.8 |
- |
25 |

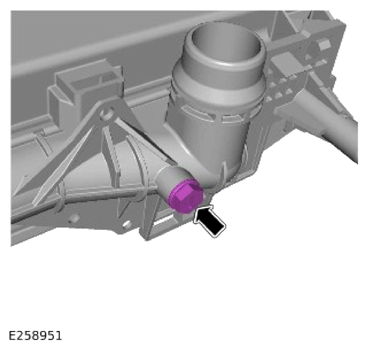

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| DESCRIPTION |
NM |
LB-FT |
LB-IN |
| Radiator drain plug |
3.5 |
- |
31 |

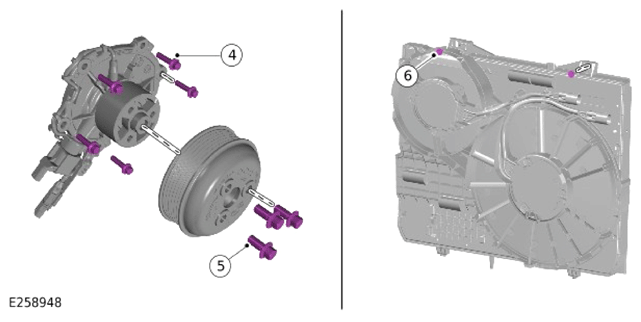

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 4 |
Coolant pump bolts |
12 |
9 |
- |
| 5 |
Coolant pump pulley bolts |
25 |
18 |
- |
| 6 |
Electric cooling fan and shroud bolts |
7 |
- |
62 |

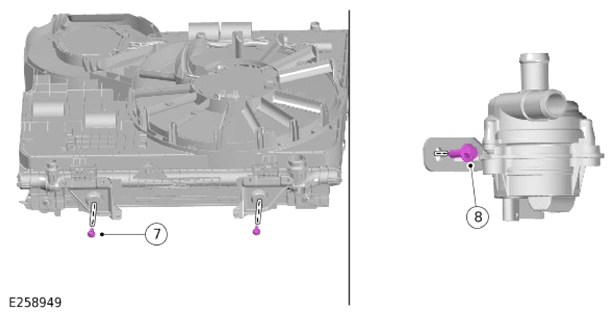

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 7 |
Cooling module lower mount screws |
15 |
11 |
- |
| 8 |
charge air radiator coolant pump bracket bolt |
7 |
- |
62 |

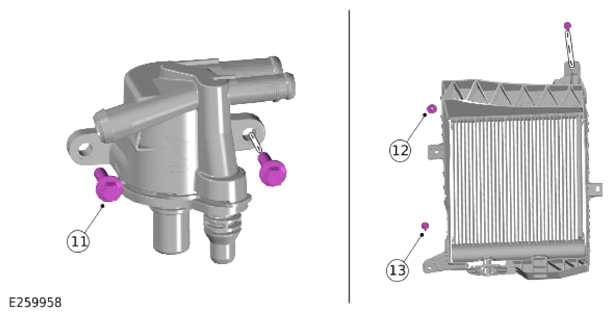

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 9 |
Electric thermostat |
12 |
9 |
- |
| 10 |
block heater |
55 |
41 |
- |

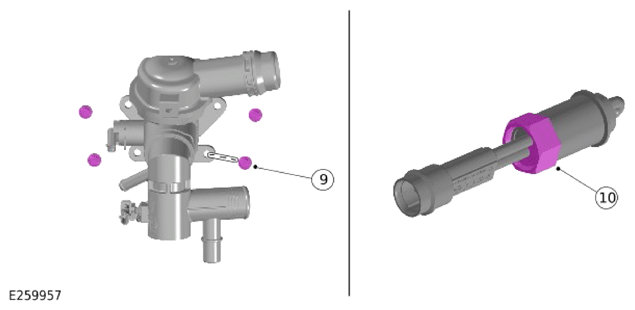

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATIONS
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 11 |
Coolant degas separator bolts |
12 |
9 |
- |
| 12 |
Auxiliary radiator nut |
9 |
- |
79 |
| 13 |
Auxiliary radiator bolts |
9 |
- |
79 |
