Electric Cooling Fan And Shroud (G2423944): Removal

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 3 coolant hose connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 2 coolant hose connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Release the Air Conditioning (A/C) pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

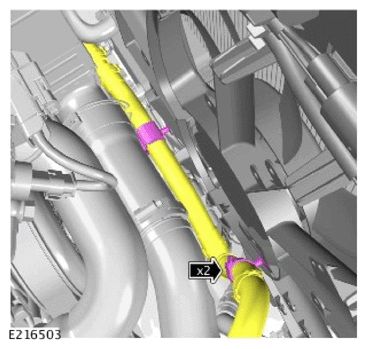

Release the 2 coolant hose clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

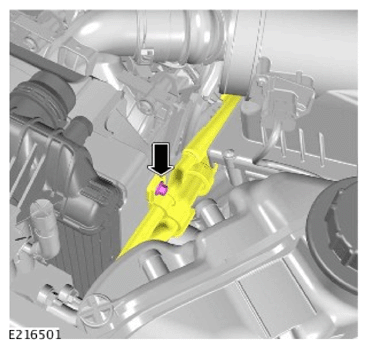

- Remove the bolt.
- Release the Automatic Transmission Fluid (ATF) cooler.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Release the clip.
- Remove the bolt.
- Release the charge air cooler coolant pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 3 electrical connectors.
- Release the clip.
NOTE: Take care not to damage the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

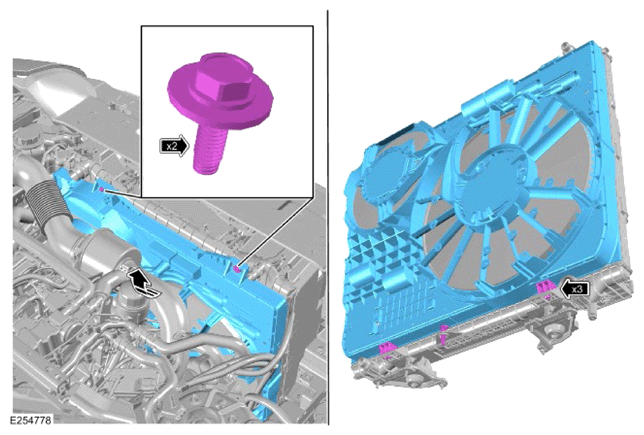

- Remove the 2 bolts.
- Remove the electric cooling fan and shroud at the 3 clips.
