Cooling Module - [+] PHEV (G2861041): Removal

WARNING:

Make sure the engine cooling system is cool prior to doing this procedure.
Be prepared to collect escaping coolant fluids.

CAUTION:

The desiccant bag need only be changed under the following circumstances: There is dirt in the refrigerant circuit (For example: compressor seizure), the system is leaking and refrigerant has been lost to atmosphere, or the refrigerant circuit has been open more than 24 hours, due to repair.
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Engine coolant will damage the paint finished surfaces. If split, immediately remove the coolant and clean the area with water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

WARNING: Jaguar Land Rover (JLR) Electric Vehicle Competent Person (EVCP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the High Voltage (HV) system. Only technicians qualified to EVCP level or higher are allowed to complete this procedure.
Disconnect the 12 V system.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Partially drain the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Drain the Plug-in Hybrid Electric Vehicle (PHEV) battery cooling system.
Refer to: PHEV BATTERY COOLING SYSTEM DRAINING AND VACUUM FILLING
Remove the hood latch panel.
Refer to: HOOD LATCH PANEL
Remove the left air cleaner.
Refer to: AIR FILTER HOUSING
Remove the intake air resonator.
Refer to: INTAKE AIR RESONATOR
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 3 coolant pipe connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Release the coolant expansion tank.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the electrical connector.
- Disconnect the coolant hose.
- Remove the coolant expansion tank.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 clips.
- Remove the brake cooling air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the cooling module protector assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

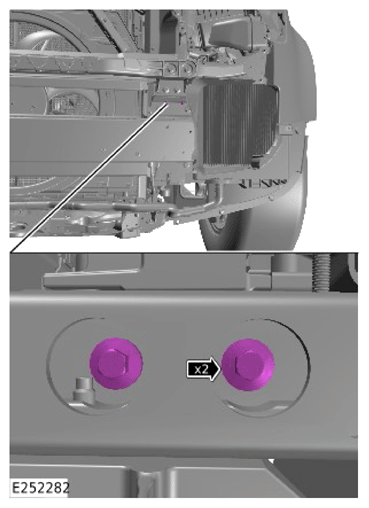

Remove the 2 front armature upper bolts on the left side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Position aside the steering gear wiring harness support bracket to get access to the 2 front armature upper bolts on the right side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 front armature upper bolts on the right side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 8 bolts.
- With assistance, remove the front armature.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 6 clips.
- Remove the cooling module air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 4 coolant pipe clips.
- Disconnect the 2 coolant pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the coolant hose.
- Remove the nut.
- Release the coolant hose.
- Remove and discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bolt.

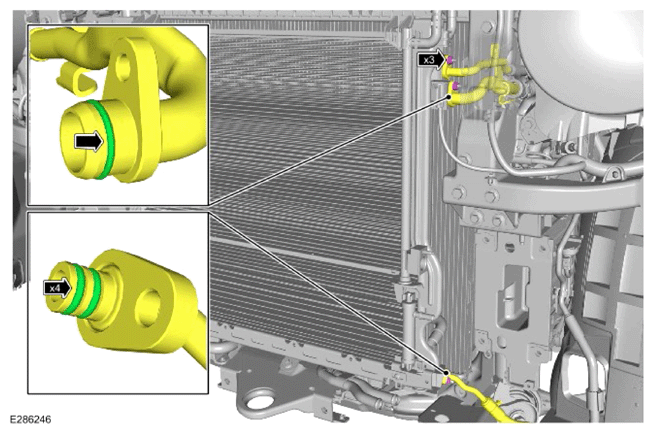

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 nuts.
- Release the coolant pipe.
- Release the 2 A/C pipes.
- Remove and discard the 5 O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 coolant hose clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the coolant hose clamp.
- Release the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 2 coolant hose clips.
- Disconnect the 3 electrical connectors.
- Release the 2 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the steering gear wiring harness at the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 5 coolant hose clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 4 electrical connectors.
- Release the 3 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Release the auxiliary radiator coolant pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the coolant hose.
- Remove the bolt.
- Release the transmission fluid cooler.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 2 coolant hoses.
CAUTION: Take extra care not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 screws and 2 washers.
- Remove the 2 radiator lower mounts.
- With assistance, carefully remove the cooling module.
- Remove the 2 radiator upper mounts.
