Charge Air Radiator Coolant Pump (G2415250): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

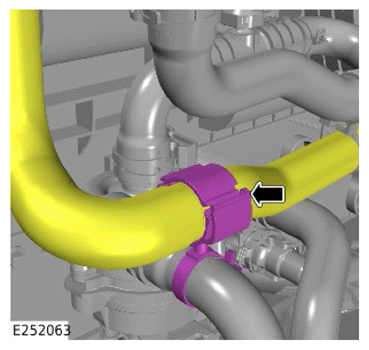

- Release the clip.
- Reposition the coolant hose away from the charge air radiator coolant pump.
WARNING: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

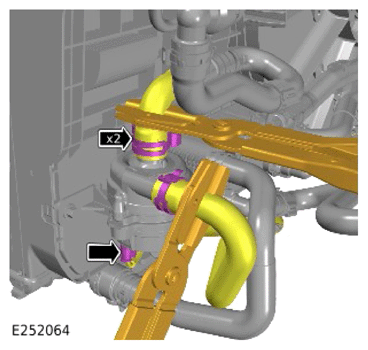

- Use a suitable hose clamp tool to clamp the upper coolant hose.
- Use a suitable hose clamp tool to clamp the lower coolant hose.
- Release the 2 hose clamps.
- Disconnect the 2 coolant hoses.
- Disconnect the electrical connector.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

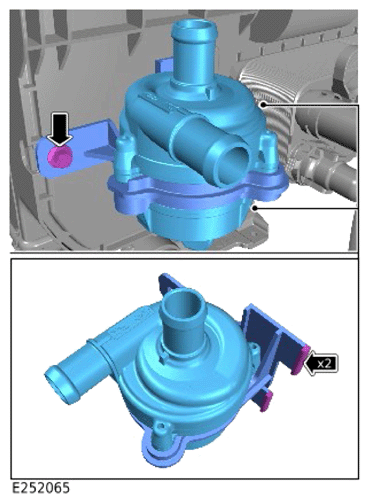

- Remove the bolt.
- Release the charge air radiator coolant pump bracket from the cooling fan shroud.
- Remove the charge air radiator coolant pump and bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

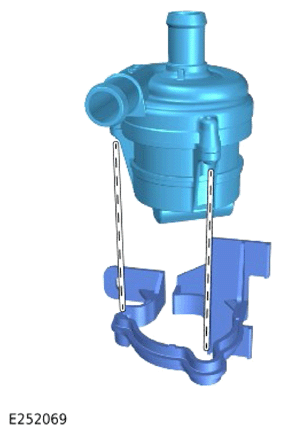

Remove the charge air radiator coolant pump from the bracket.
