Charge Air Radiator (G2344643): Removal

CAUTION: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2-post lift.
Refer to: JACKING AND LIFTING
Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Remove the cooling module.
Refer to: COOLING MODULE - [+] NON-ELECTRIC VEHICLES
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

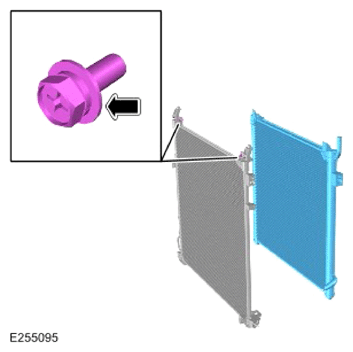

- Remove the 2 screws.
- Remove the radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the charge air radiator.
