Battery, Mounting And Cables - Vehicles With: Non-Electric Vehicles (G2323767): Specifications
STARTUP BATTERY SPECIFICATION
| COMPONENT | DESCRIPTION |
|---|---|
| Type | H8 Absorbed Glass Mat (AGM) |
| Capacity | 90 Ah |
| Cold cranking amps | 850 CCA |
| Voltage output | 12 Volts |
| Current type | Direct Current (DC) |

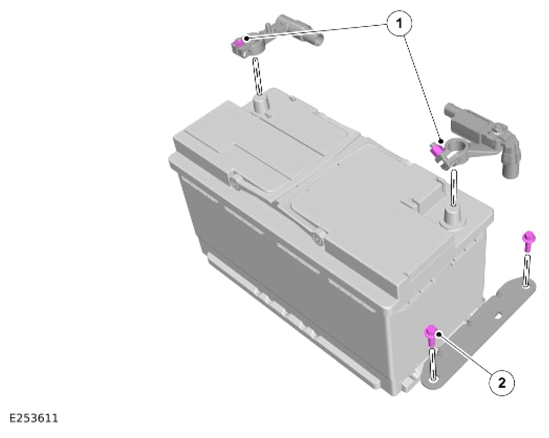

| COMPONENT TORQUE LOCATION |
|---|
TORQUE SPECIFICATIONS
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|
| 1 | Startup battery terminal clamp nuts | 6 | - | 53 |
| 2 | Startup battery clamp bolts | 24 | 18 | - |
