Evaporative Emissions - INGENIUM I4 2.0L Petrol/INGENIUM I4 2.0L Petrol - PHEV: Specifications

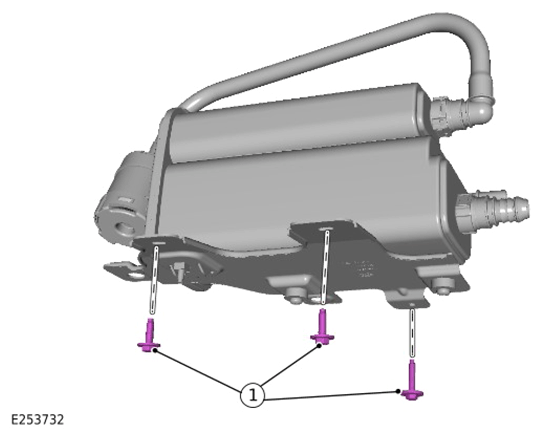

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT
1	Evaporative emission canister bracket bolts	10	7.4

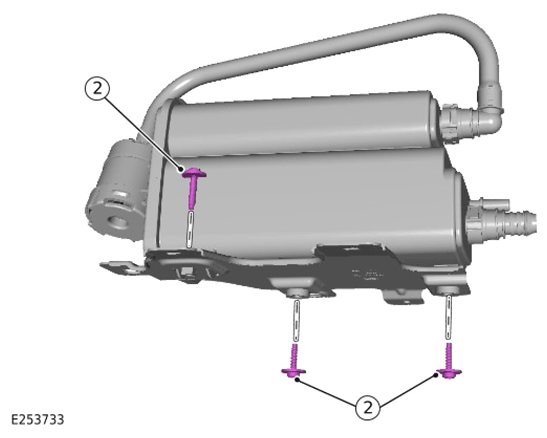

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT
2	Evaporative emission canister bolts	7	5.1

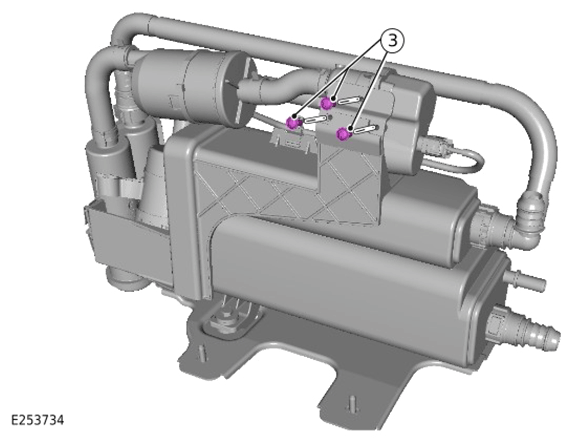

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT
3	Diagnostic Module Tank Leakage (DMTL) pump bracket bolts	1.8	1.3

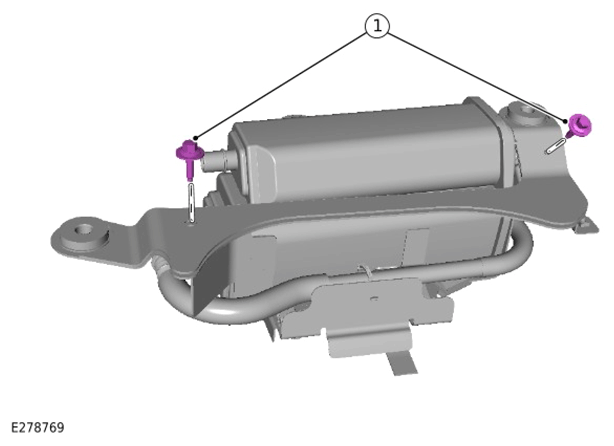

COMPONENT TORQUE LOCATION Plug-in Hybrid Electric Vehicle (PHEV)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT
1	Evaporative emission canister fuel tank bracket bolts	10	7.4

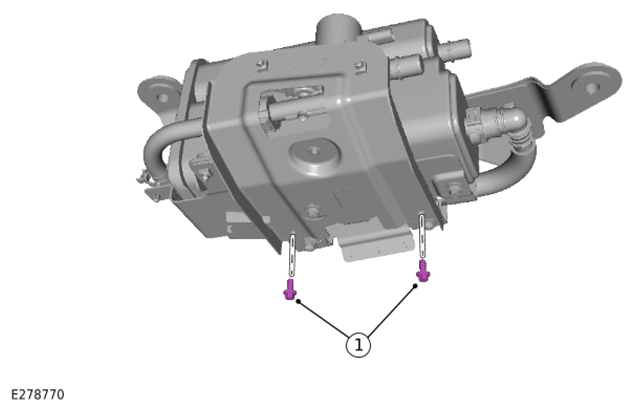

COMPONENT TORQUE LOCATION PHEV
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT
1	Fuel tank isolation valve assembly bracket bolts	10	7.4

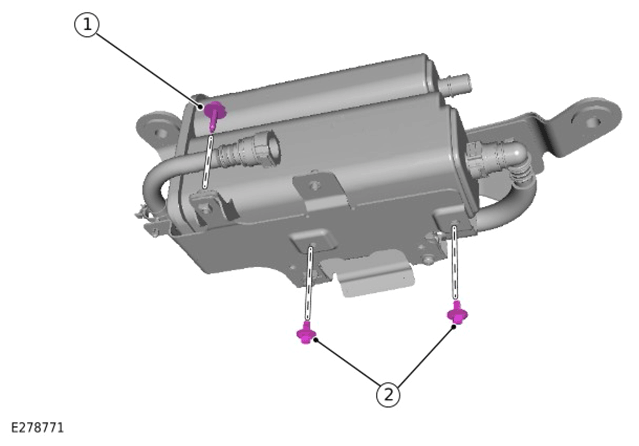

COMPONENT TORQUE LOCATION PHEV
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT
1	Evaporative emission canister bracket bolt	7	5.1
2	Evaporative emission canister bracket bolts	7	5.1

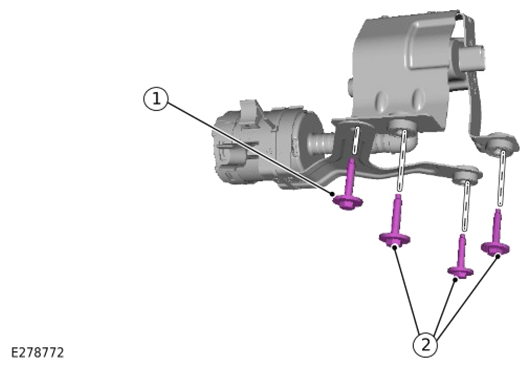

COMPONENT TORQUE LOCATION PHEV
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT
1	Air filter assembly bracket bolt	10	7.4
2	DMTL  pump bracket bolts	10	7.4

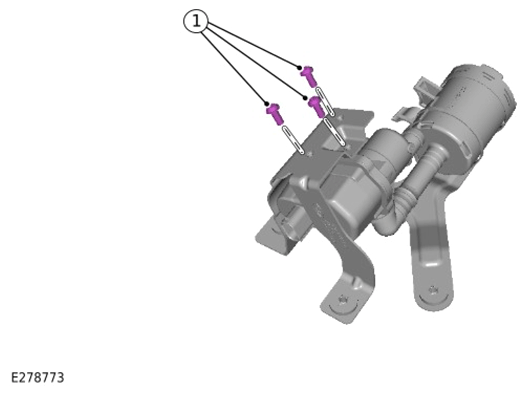

COMPONENT TORQUE LOCATION PHEV
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATIONS

ITEM	DESCRIPTION	NM	LB-FT
1	DMTL  pump bracket bolts	1.8	1.3
