General Equipment

EQUIPMENT NAME
Transmission jack

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Drain the transfer case.
Refer to: TRANSFER CASE DRAINING AND FILLING
Remove the front driveshaft.
Refer to: FRONT DRIVESHAFT - INGENIUM I6 3.0L PETROL
Remove the rear driveshaft.
Refer to: REAR DRIVESHAFT - INGENIUM I6 3.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Reposition the ground cable away from the transfer case.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the damper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the heatshield.

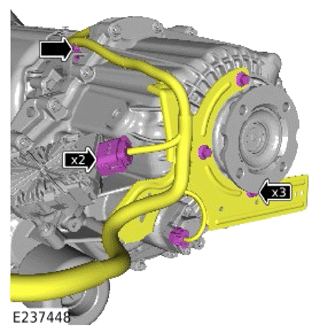

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 bolts.
- Disconnect the 2 electrical connectors.
- Release the wiring harness clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the clip.
- Disconnect the breather pipe.
WARNING: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Use a transmission jack to support the transfer case.
  General Equipment: Transmission jack
- Use the special tool to remove the 8 bolts.
  Special Tool(s): 303-1069
- Remove the transfer case.
NOTE: Only do the following step(s), if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the transfer case Noise, Vibration and Harshness (NVH) damper.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the sensor.
