Transmission Cooling (G1728608): Notes

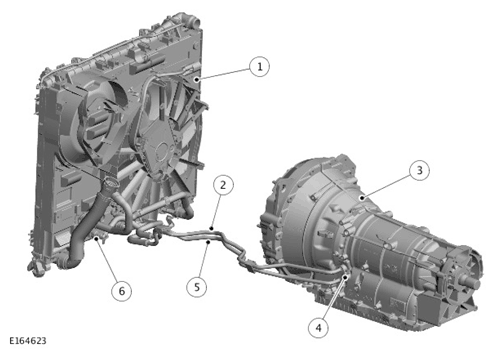

Component Location

G11700674Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Item Description
1 Engine cooling radiator
2 Return pipe (To transmission)
3 8HP70 Automatic Transmission
4 Transmission cooling pipe connection
5 Supply pipe (From transmission)
6 Automatic Transmission Fluid (ATF) cooler
