Wheel Knuckle (G1509293): Removal

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.
NOTE:
  • If a new knuckle is installed, a new wheel bearing must be installed.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • Special tool 204-598 may be substituted with LR-121.
  1. Before replacing the wheel knuckle, make sure to have followed the diagnosis and testing procedure.

    Refer to: SUSPENSION ARMS

  2. Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE

  3. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: JACKING AND LIFTING

  4. Refer to: WHEEL AND TIRE

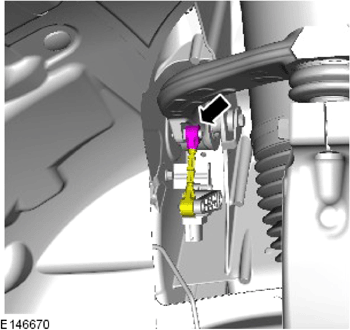

  5. G14046951Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. NOTE:
    • Apply the brake pedal during the removal and installation of the halfshaft retaining nut.
    • Retain the nut for use in the installation procedure.

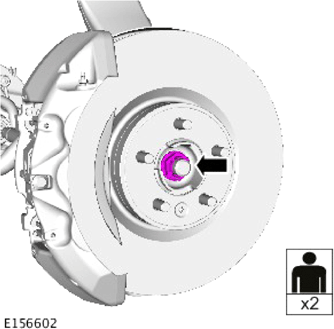

    G14046952Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. CAUTION: Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

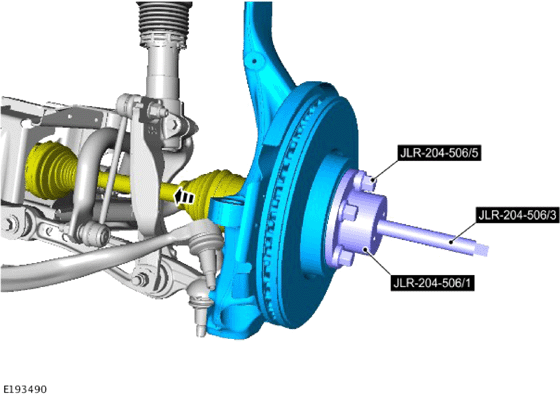

    G14046953Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tools, release the halfshaft from the wheel hub.

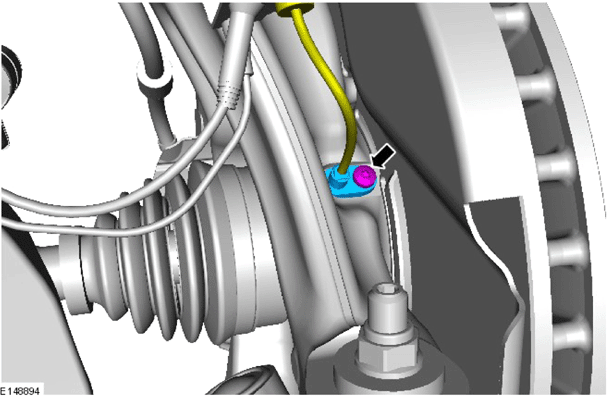

  8. G14046954Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

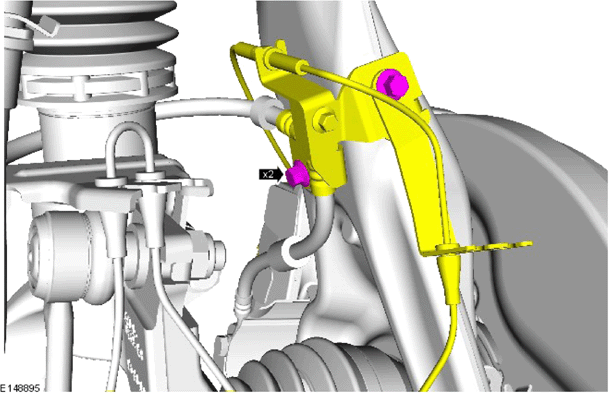

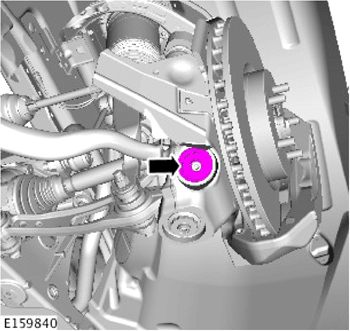

  9. G14046955Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  10. CAUTION:
    • Make sure that the brake hose does not support the full weight of the brake caliper assembly.
    • LH side: Do not allow the brake caliper to hang on the brake pad wear warning sensor lead.
    NOTE: Discard the bolts.

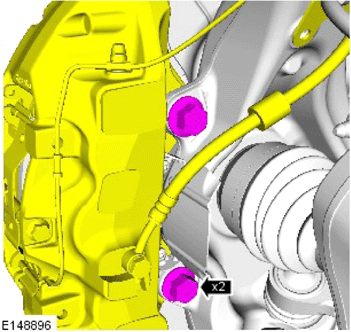

    G14046956Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

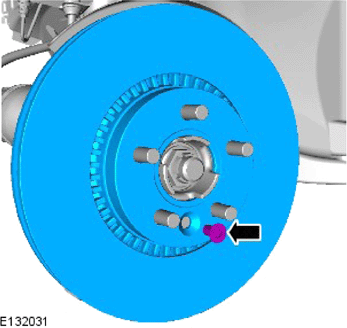

  11. G14046957Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

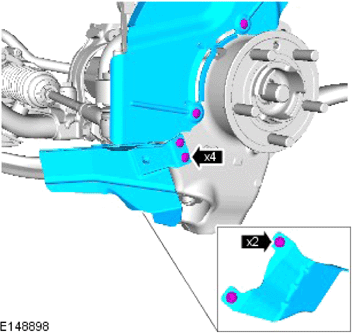

  12. G14046958Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

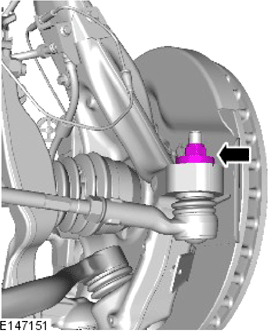

  13. G14046959Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosen the tie rod end locking nut.

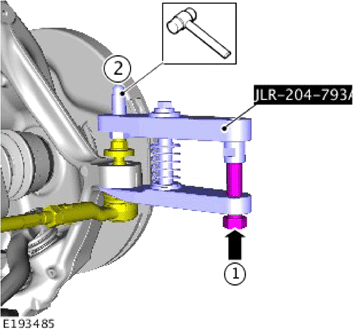

  14. G14046960Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, release the tie rod end.

  15. G14046961Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Discard the tie rod end locking nut.

  16. G14046962Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosen, but do not fully remove the nut.

  17. NOTE: This step is only required for special tool 204-598. If LR-121 is used, do not install JLR-204-838-01.

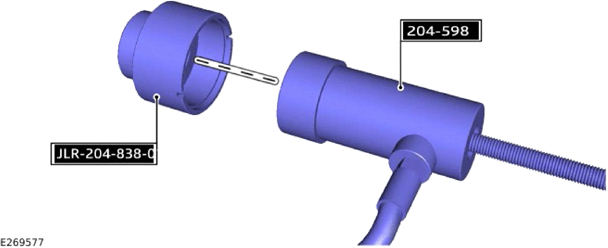

    G14046963Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Assemble the special tools.

    Special Tool(s): JLR-204-838-01  , 204-598

  18. CAUTION: Make sure the special tool is correctly located and the lower ball joint boot is not damaged while carrying out the operation. Failure to follow this instruction may result in damage to the component.

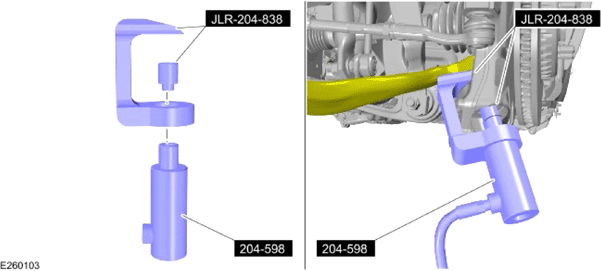

    G14046964Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 204-598  , JLR-204-838

  19. G14046965Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the nut.

  20. G14046966Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosen, but do not fully remove the nut.

  21. CAUTION: Make sure the special tool is correctly located and the lower ball joint boot is not damaged while carrying out the operation. Failure to follow this instruction may result in damage to the component.

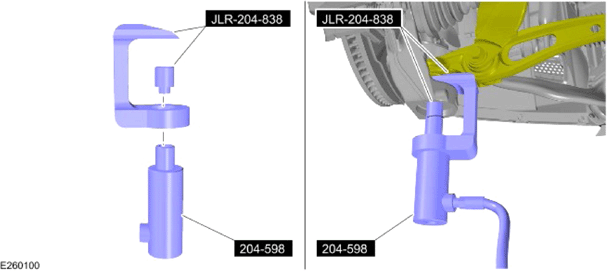

    G14046967Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 204-598  , JLR-204-838

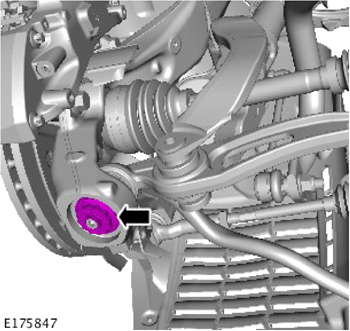

  22. G14046968Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the nut.

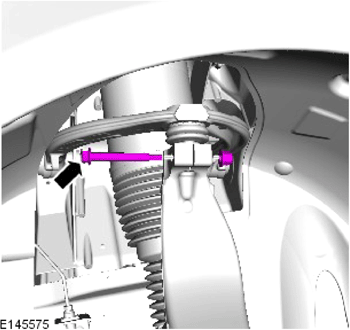

  23. G14046969Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the upper control arm to wheel knuckle nut and bolt.

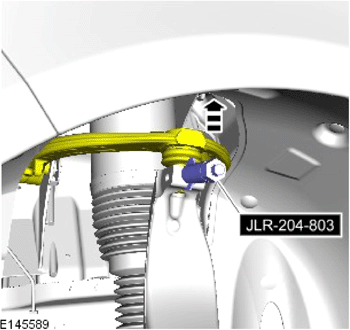

  24. G14046970Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

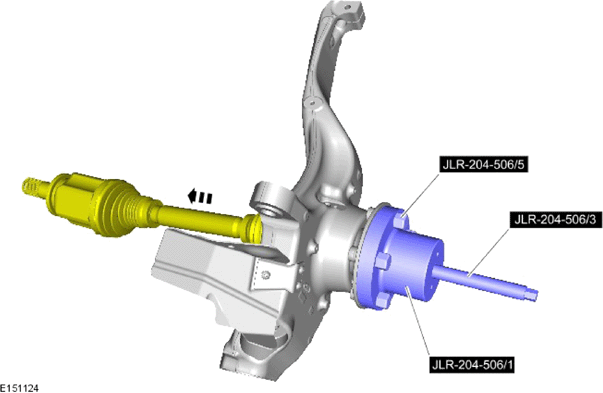

  25. CAUTION: Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.
    G14046971Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tools, release the halfshaft from the drive flange.
