Right Upper Arm (G1605919): Removal

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Before replacing the right upper arm, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the right air filter housing.
Refer to: RIGHT AIR CLEANER - V6 S/C 3.0L Petrol
Remove the front right wheel and tire.
Refer to: WHEEL AND TIRE

The following step(s) applies to:

Vehicles with fuel fired booster heater

Remove the Fuel Fired Booster Heater (FFBH).
Refer to: FUEL FIRED BOOSTER HEATER

The following step(s) applies to:

All vehicles

Use the Jaguar Land Rover approved diagnostic equipment to depressurize the air suspension system.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

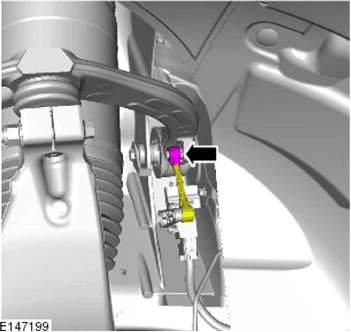

Release the height sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

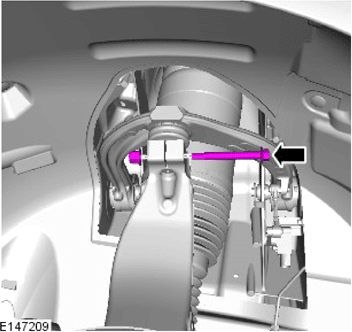

Remove and discard the knuckle to upper arm nut and bolt.
NOTE: Left illustration shown, right is similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

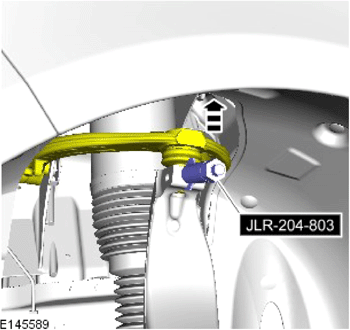

Use the special tool to release the upper arm.

Special Tool(s): JLR-204-803
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

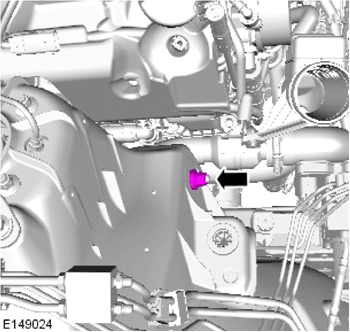

Remove the upper arm front nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

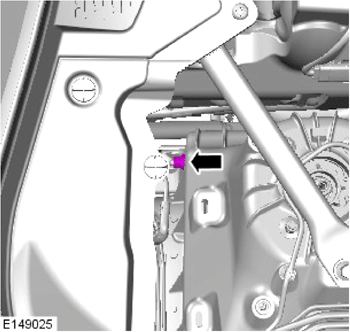

Remove the upper arm rear nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

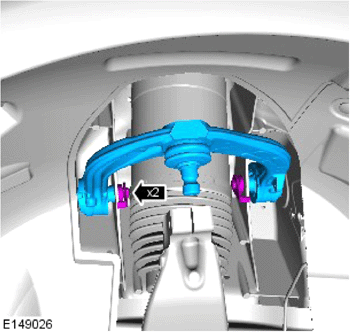

- Remove the 2 bolts.
- Remove the upper arm.
