Rear Lower Arm (G1548984): Removal
NOTE:
- Removal steps in this procedure may contain installation details.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
- Special tool 204-598 may be substituted with LR-121.
- Before replacing the Rear Lower Arm, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
-
Refer to: WHEEL AND TIRE

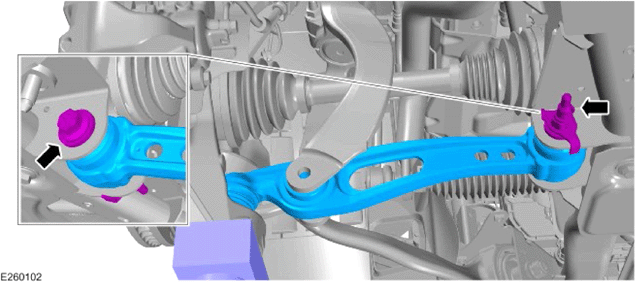

Loosen, but do not fully remove the nut.
-
NOTE: This step is only required for special tool 204-598. If LR-121 is used, do not install JLR-204-838-01.

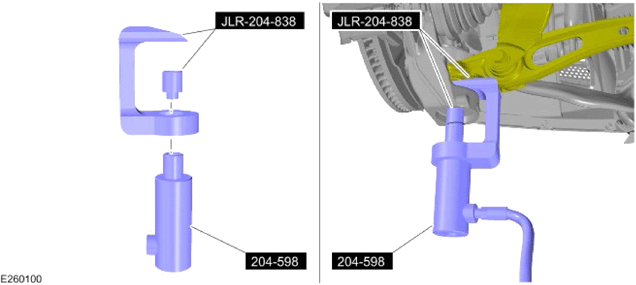

Assemble the special tools.
Special Tool(s): JLR-204-838-01 , 204-598
-

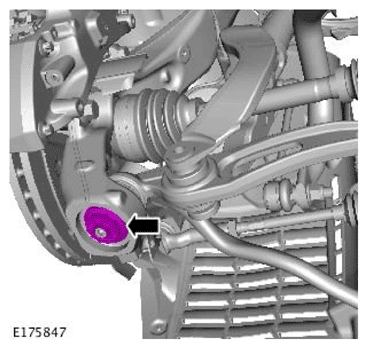

CAUTION: Make sure the special tool is correctly located and the lower ball joint boot is not damaged while carrying out the operation. Failure to follow this instruction may result in damage to the component.
Special Tool(s): 204-598 , JLR-204-838

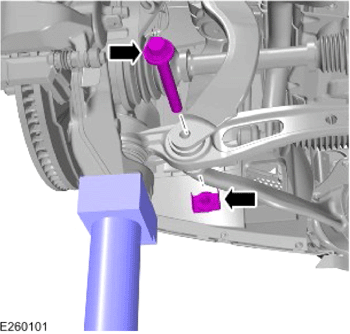

Remove and discard the nut.
-
NOTE: Discard the nut and bolt.
General Equipment: Transmission jack
-
NOTE: Discard the nut and bolt.
