Rear Lower Arm (G1548984): Installation

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE: Make sure that a new nut is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

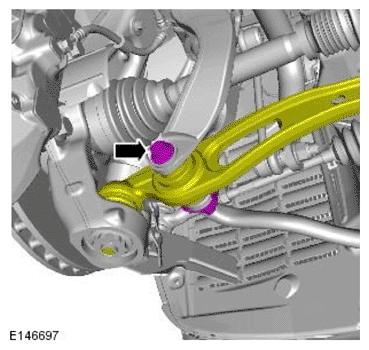

Renew Part: Rear lower arm to knuckle nut Quantity: 1 .

Torque : 290 Nm
CAUTION:
- Nuts and bolts must be tightened with vehicle at normal ride height.
- Make sure that a new bolt is installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

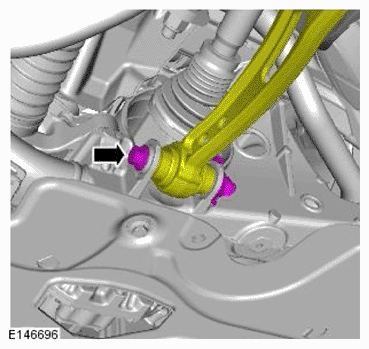

Renew Part: Yoke to lower arm nut(s) and bolt(s) Quantity: 1 .

Torque

Stage 1: 100 Nm

Stage 2: 240°
CAUTION:
- Nuts and bolts must be tightened with vehicle at normal ride height.
- Make sure that a new bolt is installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

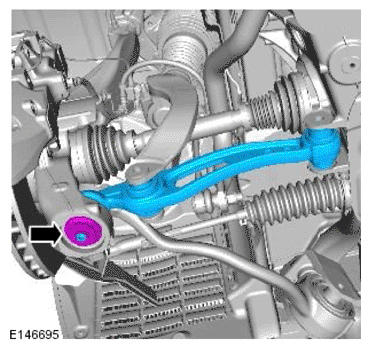

Renew Part: Rear lower arm to subframe nut and bolt Quantity: 1 .

Torque

Stage 1: 100 Nm

Stage 2: 360°
Using a suitable transmission jack, support the component while tightening the nuts and bolts at normal ride height.
Refer to: SPECIFICATIONS

General Equipment: Transmission jack
Remove the transmission jack.
Refer to: WHEEL AND TIRE
Using only four wheel alignment equipment approved by Land Rover, check and adjust the wheel alignment.
Refer to: WHEEL ALIGNMENT
