Left Upper Arm - [+] MHEV (G2328376): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Use the Jaguar Land Rover (JLR) approved diagnostic equipment to depressurize the air suspension.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE
Remove the left air filter housing.
Refer to: LEFT AIR FILTER HOUSING
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the front left wheel arch liner.
Refer to: FENDER SPLASH SHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

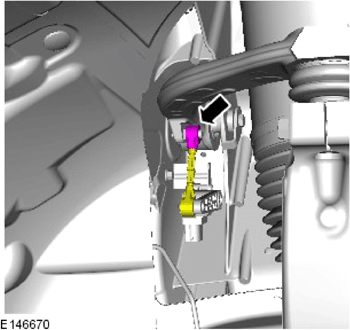

Release the height sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

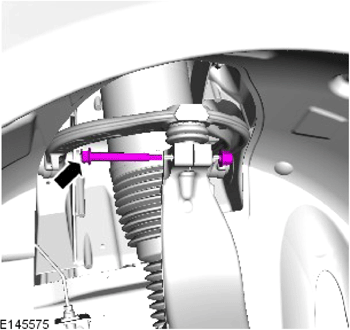

Remove and discard the upper control arm to wheel knuckle nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

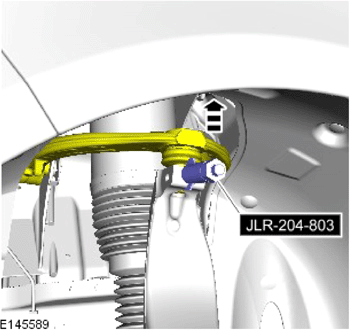

Using the special tool, release the upper arm ball joint.

Special Tool(s): JLR-204-803
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

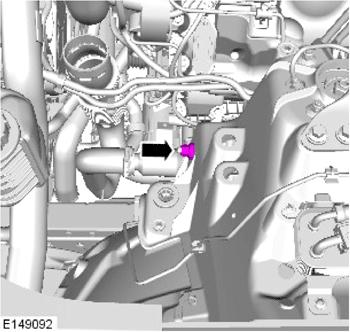

Remove and discard the upper arm front nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

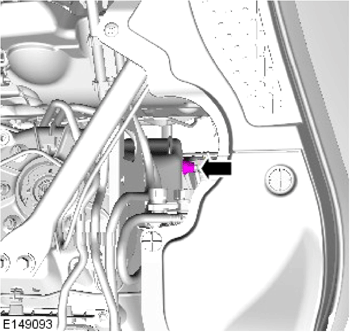

Remove and discard the upper arm rear nut.
NOTE: RH illustration shown, LH is similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

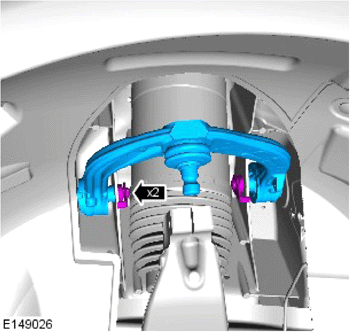

- Remove the upper arm bolts.
- Remove the upper arm.
