Left Upper Arm (G1605918): Removal

The following step(s) applies to:

All vehicles

1. Before replacing the left upper arm, make sure to have followed the diagnosis and testing procedure.

   Refer to: SUSPENSION ARMS

2. Raise and support the vehicle on a suitable 2 post lift.

   Refer to: JACKING AND LIFTING

3. Refer to: LEFT AIR CLEANER - TDV6 3.0L Diesel/TDV6 3.0L Diesel - Gen 1.5/TDV6 3.0L Diesel - Gen 2

   Refer to: LEFT AIR CLEANER - V8 S/C 5.0L Petrol

The following step(s) applies to:

Vehicles with diesel engine

1. Remove the fuel filter element.

   Refer to: FUEL FILTER ELEMENT

The following step(s) applies to:

Vehicles with petrol engine

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the 2 retaining bolts and reposition the bracket.

The following step(s) applies to:

All vehicles

1. Remove the front left wheel and tire.

   Refer to: WHEEL AND TIRE

2. Using the Jaguar Land Rover approved diagnostic system, depressurize the air suspension.

   Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Release the height sensor.

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove and discard the knuckle to upper arm retaining bolt.

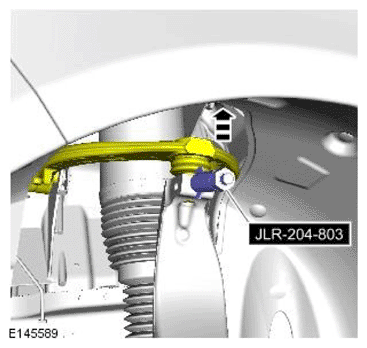

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Using the special tool, release the upper arm.

   Special Tool(s): JLR-204-803

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the front upper arm front retaining nut.

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the front upper arm rear retaining nut.

8. NOTE: Right side illustration shown, Left side is similar.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the 2 retaining bolts and the upper arm.
