Left Upper Arm (G1605918): Installation

The following step(s) applies to:

All vehicles

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE: Right side illustration shown, Left side is similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

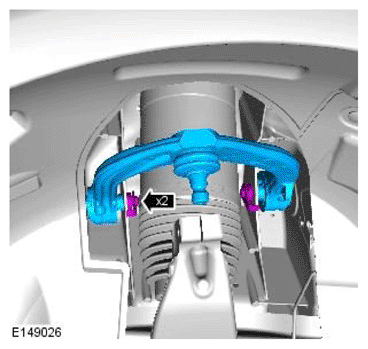

Install the upper arm and the 2 retaining bolts.
CAUTION: Nuts must be tightened with vehicle at normal ride height.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

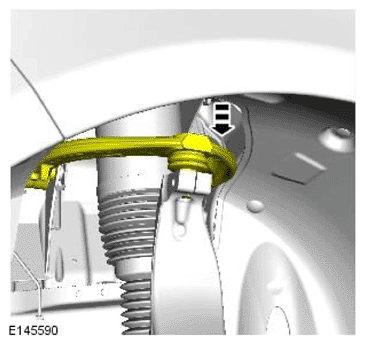

Install the front upper arm rear retaining nut.

Torque : 60 Nm
CAUTION: Nuts must be tightened with vehicle at normal ride height.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

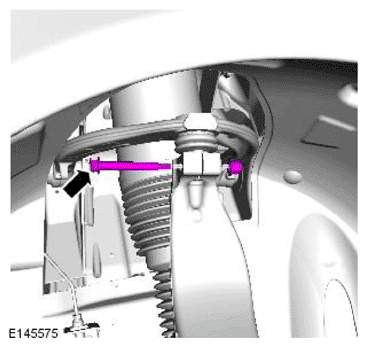

Install the front upper arm front retaining nut.

Torque : 60 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

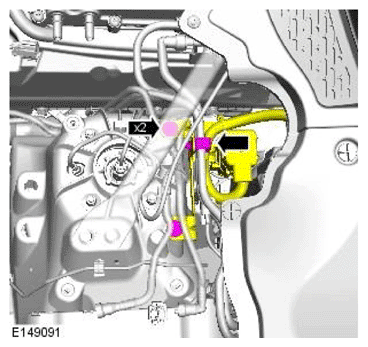

Secure the upper arm to the knuckle.
NOTE: Make sure the upper arm to knuckle retaining bolt is securely seated on the groove of the ball joint pin.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the upper arm to knuckle retaining bolt.

Renew Part: Front suspension upper arm ball joint to knuckle nut and bolt Quantity: 1 .

Torque : 70 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

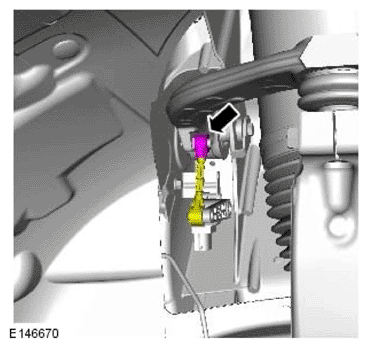

Secure the height sensor.
Install the front left wheel and tire.
Refer to: WHEEL AND TIRE

The following step(s) applies to:

Vehicles with petrol engine

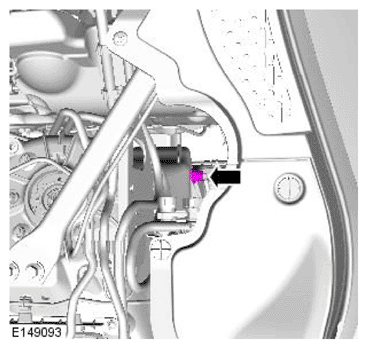

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bracket and the 2 retaining bolts.

Torque : 10 Nm

The following step(s) applies to:

Vehicles with diesel engine

The following step(s) applies to:

All vehicles

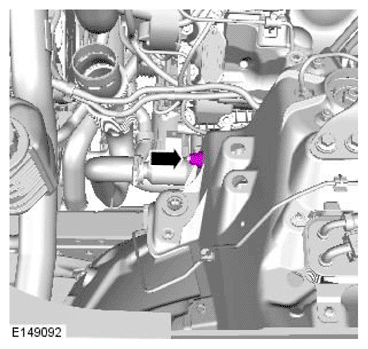

Install the left air cleaner.
Refer to: LEFT AIR CLEANER - Gen 1.5/TDV6 3.0L Diesel - Gen 2

Refer to: LEFT AIR CLEANER - V8 S/C 5.0L Petrol
Using the Jaguar Land Rover approved diagnostic system, pressurize the air suspension.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE
Using the Jaguar Land Rover approved diagnostic system, calibrate the suspension ride height.
Refer to: RIDE HEIGHT ADJUSTMENTS
