Front Wheel Bearing (G1509289): Removal

Before replacing the wheel bearing, make sure to have followed the diagnosis and testing procedure.
Refer to: WHEEL BEARINGS
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: WHEEL KNUCKLE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

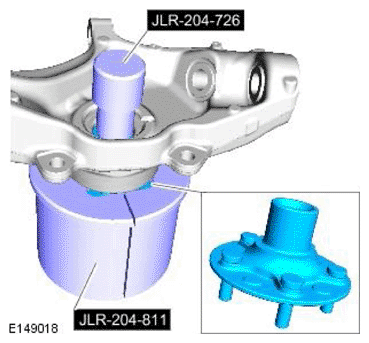

Special Tool(s): 204-726 , JLR-204-811

General Equipment: Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

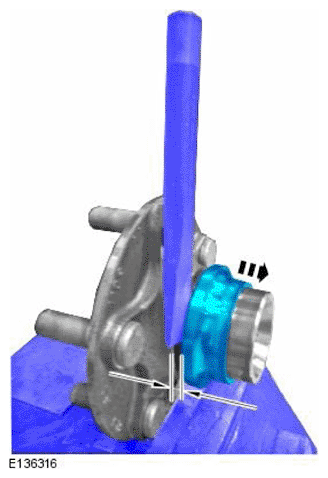

General Equipment: Vise

General Equipment: Copper Hammer

General Equipment: Punch
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

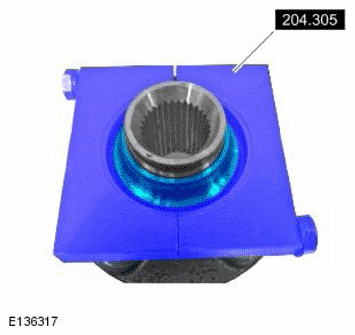

Special Tool(s): 204-305

General Equipment: Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Clean all the mating faces and reusable parts thoroughly and check for damage
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Note the orientation of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

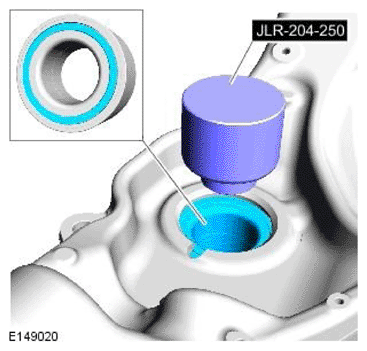

Special Tool(s): 204-250

General Equipment: Hydraulic press
