Front Wheel Bearing (G1509289): Installation

CAUTION: Make sure that the area around the component is clean and free of foreign material.

NOTE: Make sure that the component is installed to the noted removal position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

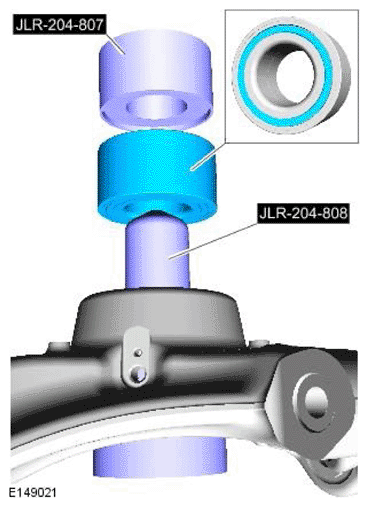

Special Tool(s): JLR-204-808 , JLR-204-807

General Equipment: Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

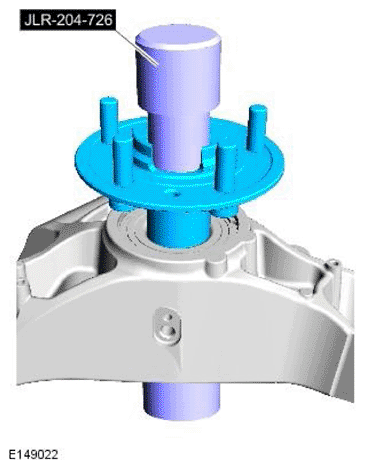

Special Tool(s): 204-726 , 204-250

General Equipment: Hydraulic press
Refer to: WHEEL KNUCKLE
