Front Stabilizer Bar Link - Vehicles Without: Dynamic Response (G2327438): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the front wheel.
Refer to: WHEEL AND TIRE

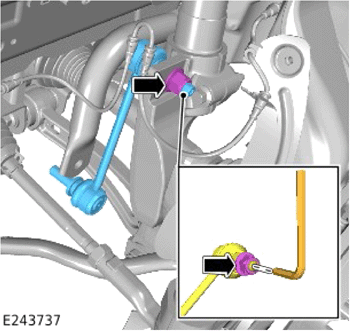

CAUTION: Use a Torx socket to prevent the ball joint rotating whilst removing the nut.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the stabilizer bar link lower nut.

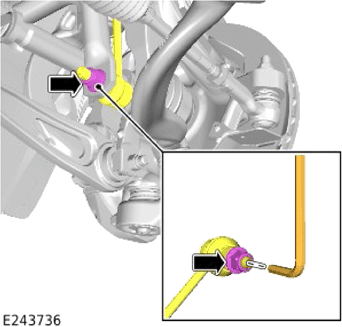

CAUTION: Use a Torx socket to prevent the ball joint rotating whilst removing the nut.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the stabilizer bar link upper nut.
