Front Stabilizer Bar - Vehicles Without: Dynamic Response (G2327437): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove both front fender splash shields.
Refer to: FENDER SPLASH SHIELD
Remove the air suspension spring assembly.
Refer to: SHOCK ABSORBER AND SPRING ASSEMBLY
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

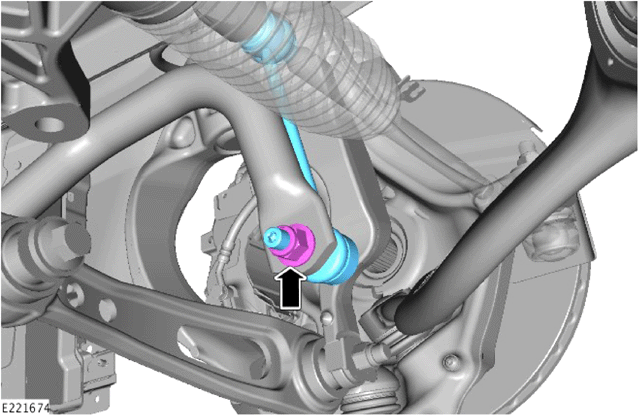

Disconnect both front stabilizer bar links from the stabilizer bar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

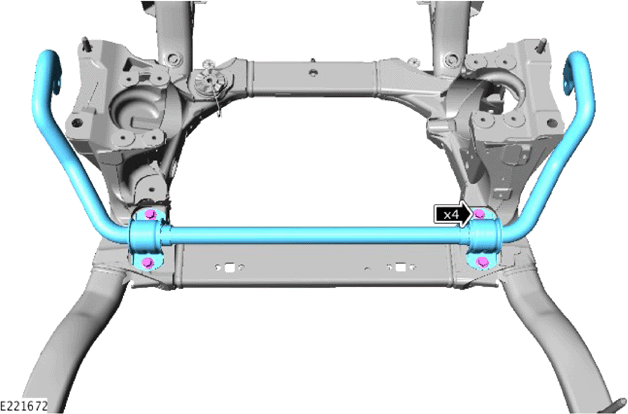

Remove the 4 stabilizer bar bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

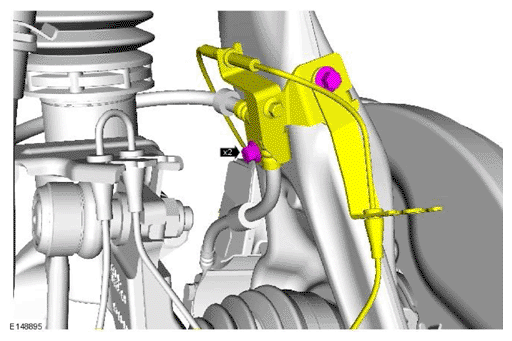

- Remove the 2 bolts.
- Release the brake hose bracket from the wheel knuckle.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

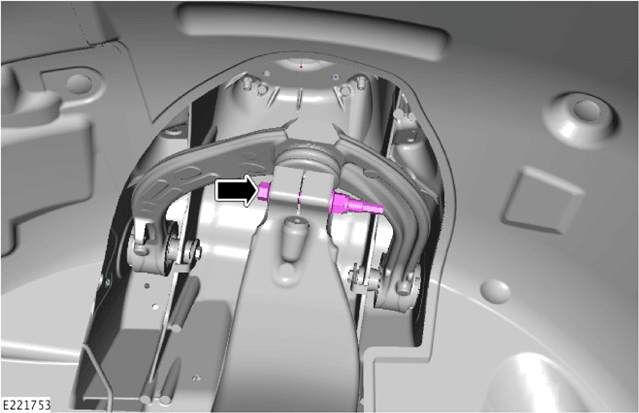

- Support the wheel knuckle using a suitable hydraulic stand.
- Remove and discard the front upper control arm nut and bolt.
- Release the upper arm from the wheel knuckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

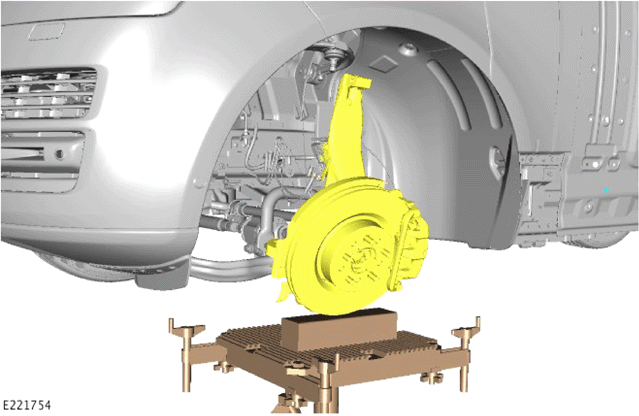

- CAUTION: Do not allow the brake hose to stretch.

  Lower the front wheel knuckle to gain access to the front stabilizer bar.

  General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

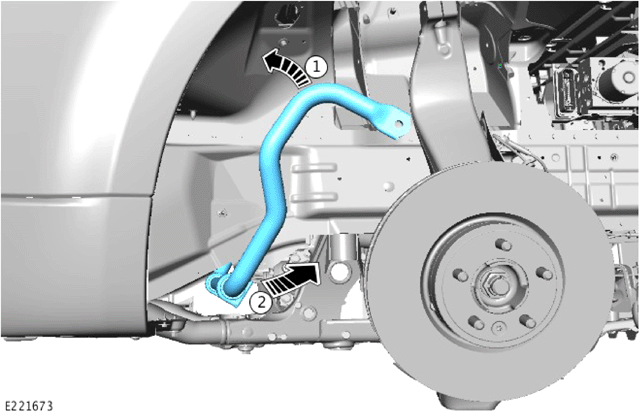

- Rotate the front stabilizer bar.
- Remove the front stabilizer bar.
