Front Lower Arm Bush (G1679070): Removal

CAUTION: Bushes must be installed in pairs.

Before replacing the front lower arm bush, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Remove the front lower arm.
Refer to: FRONT LOWER ARM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

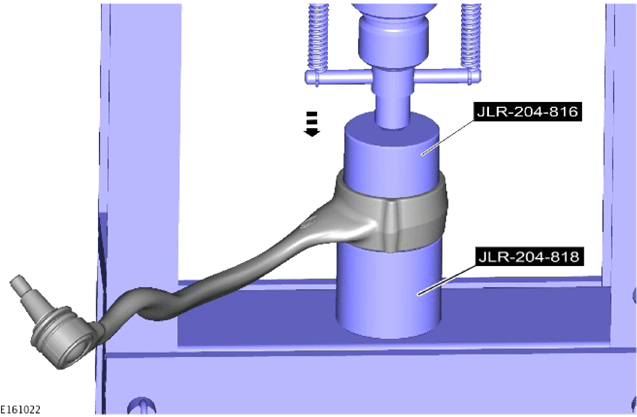

Special Tool(s): JLR-204-816 , JLR-204-818

General Equipment: Hydraulic press
