Front Lower Arm Bush (G1679070): Installation

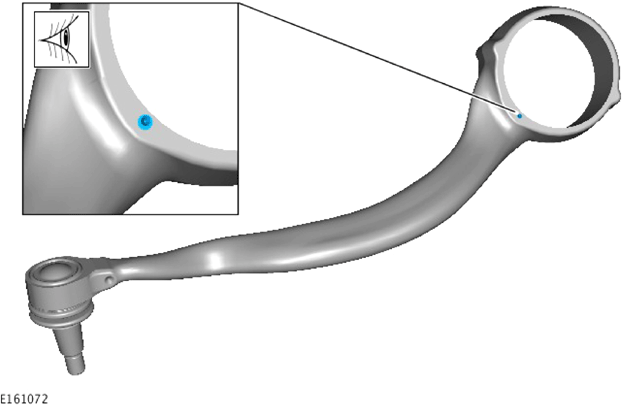

NOTE: Note the timing mark for the bush installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure bush is positioned in the correct orientation. Failure to follow this instruction may result in damage to the vehicle.
NOTE:

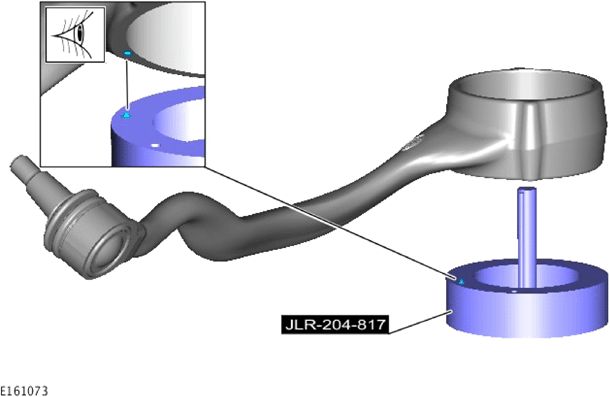

- Illustration shows basic alignment.
- Left-hand shown, right-hand mirrored.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure the special tool is set in the correct position. Failure to follow this instruction may result in damage to the vehicle and the tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

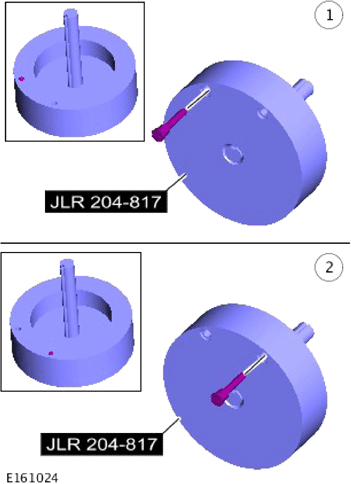

- Position 1, left lower control arm.
- Position 2, right lower control arm.
  Special Tool(s): JLR-204-817

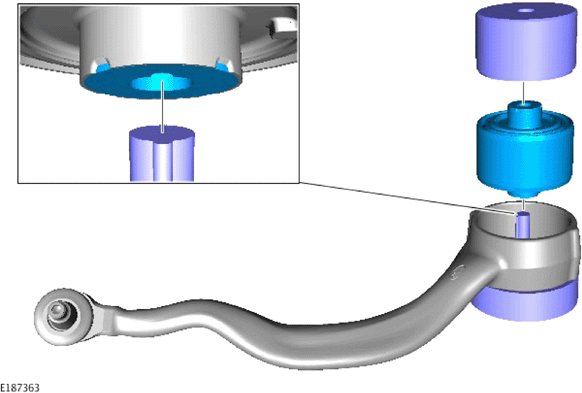

CAUTION: Make sure the special tools are in the correct orientation. Failure to follow this instruction may result in damage to the vehicle and tools.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): JLR-204-817

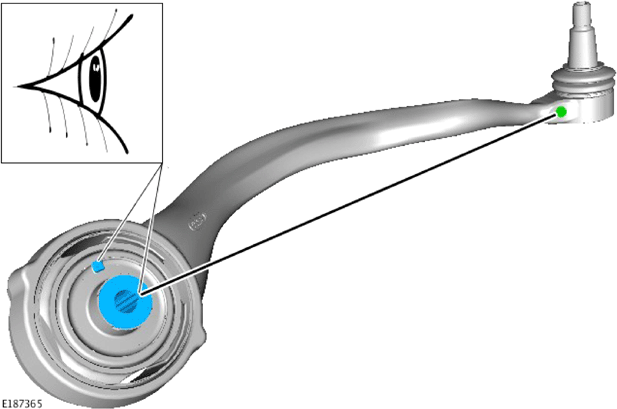

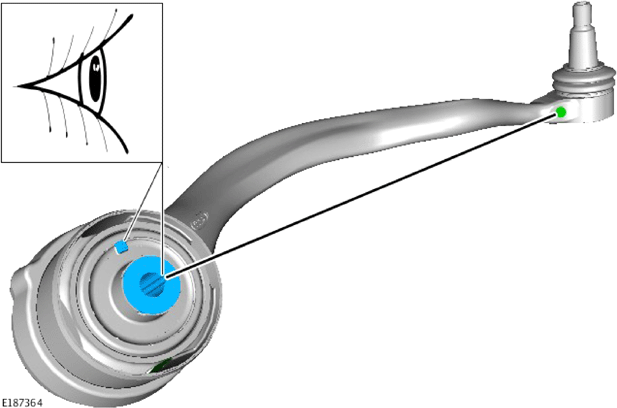

CAUTION: Make sure the special tools are in the correct orientation. Failure to follow this instruction may result in damage to the vehicle and tools.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): JLR-204-817 , JLR-204-816
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): JLR-204-816 , JLR-204-817

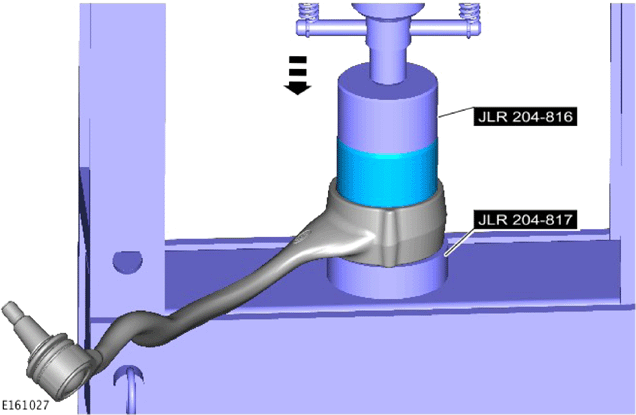

General Equipment: Hydraulic press
CAUTION: Make sure bush is positioned in the correct orientation. Failure to follow this instruction may result in damage to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Install the front lower arm.
Refer to: FRONT LOWER ARM
