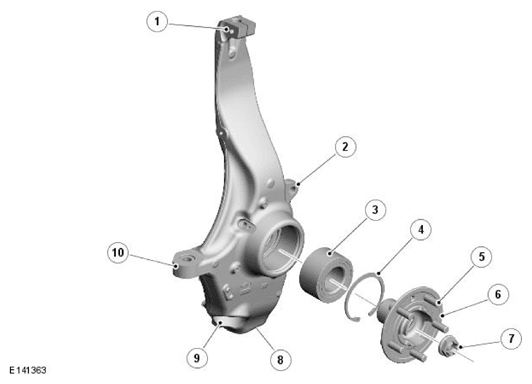

Wheel Knuckle, Hub and Bearing Assembly
| Item | Description |
|---|---|
| 1 | Upper arm attachment location |
| 2 | Brake caliper attachment location |
| 3 | Bearing (wheel hub) |
| 4 | Circlip (wheel hub bearing) |
| 5 | Wheel stud |
| 6 | Wheel hub |
| 7 | Nut (wheel hub) |
| 8 | Rear lower arm attachment location |
| 9 | Front lower arm attachment location |
| 10 | Track rod end attachment location |
The wheel knuckle is a machined aluminum forging which is located between the ball joints of the upper and lower arms. A cast boss on the front edge of the knuckle provides for the attachment of the steering gear, tie rod ball joint.
The wheel hub comprises: the wheel hub housing, taper roller bearing. Five studs are pressed into the wheel hub and provide for the attachment of the road wheel.
The wheel hub housing is a machined forging which houses the taper roller bearing.
The wheel hub has a splined center bore which mates with corresponding splines on the half-shaft. Rotation of the half-shaft is passed, via the splines, to the wheel hub which rotates on the taper roller bearing.
